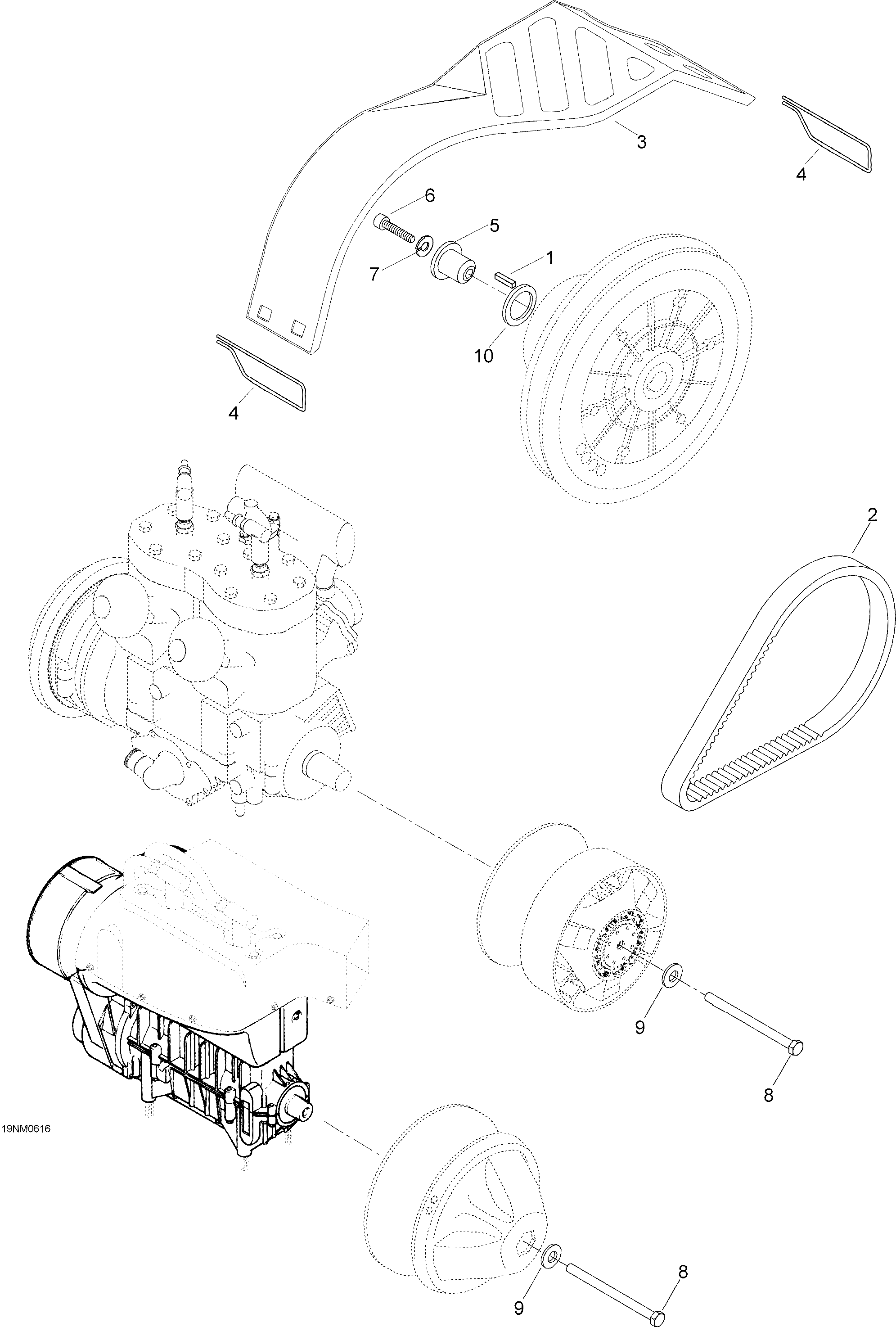

05- Pulley System 550 SWT для BRP Ski-Doo Skandic SWT 550F - 2006
-
№АртикулНазвание
-
1M418763 KeyKey
-
2414633800 Drive Belt. WT 550/SWTDrive Belt. WT 550/SWT
-
3M5142660 Belt GuardBelt Guard
-
4M5442726 PinPin
-
5M5443765 Shaft Extension. SWTShaft Extension. SWT
-
6M40286 Socket Head Screw M8 X 45. WT 550/WT 600Socket Head Screw M8 X 45. WT 550/WT 600
-
6M40290 Socket Head Screw M8 X 55. SWT. SWTSocket Head Screw M8 X 55. SWT. SWT
-
7234181401 Lock Washer M8Lock Washer M8
-
8417113800 Bolt. WT 550/SWTBolt. WT 550/SWT
-
9M20090 Conical Spring Washer. WT 550/SWTConical Spring Washer. WT 550/SWT
-
10M3125351 Shim. SWT. SWTShim. SWT. SWT
