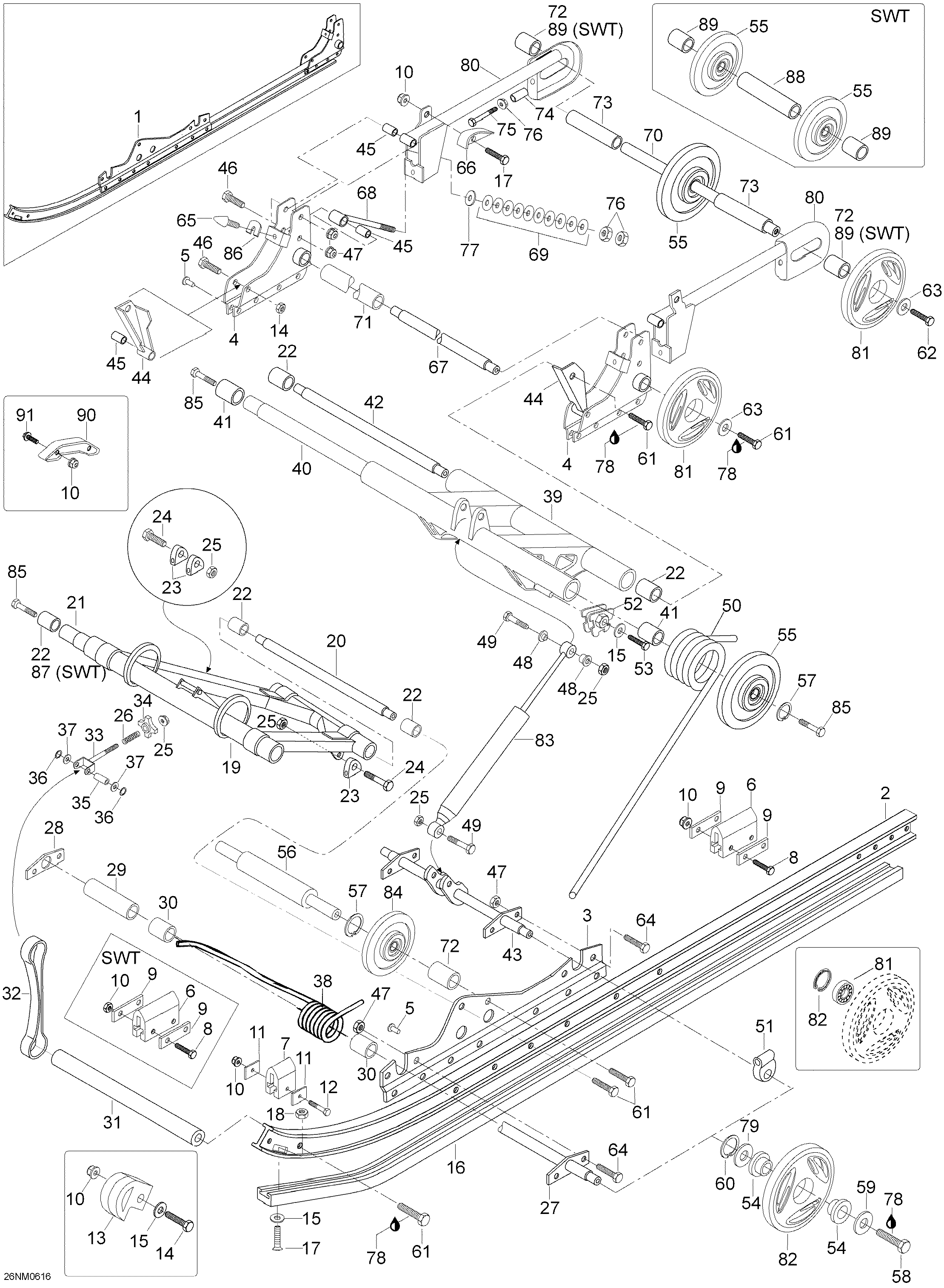

08- Rear Suspension 550 SWT для BRP Ski-Doo Skandic SWT 550F - 2006
-
№АртикулНазвание
-
2M5142864 RunnerRunner
-
3M5344811 RH SupportRH Support
-
3M5344810 LH SupportLH Support
-
4M539673 RH SupportRH Support
-
4M539672 LH SupportLH Support
-
5M544212 RivetRivet
-
6570023100 Rubber StopperRubber Stopper
-
7M5442328 Rubber StopperRubber Stopper
-
8207064044 Hex Screw M6 X 40Hex Screw M6 X 40
-
9M548387 WasherWasher
-
10M33200 Nut M6Nut M6
-
13605348954 Runner ProtectorRunner Protector
-
14207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
15234061410 Flat Washer M6Flat Washer M6
-
16M549582 Runner ShoeRunner Shoe
-
17207162044 Hex Screw M6 X 20Hex Screw M6 X 20
-
18232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
19M5242808 Front Arm Weld. SWTFront Arm Weld. SWT
-
20M549695 AxleAxle
-
21M542794 Axle. SWTAxle. SWT
-
22M542770 SleeveSleeve
-
23M548799 Spring SupportSpring Support
-
24207004044 Hex Screw M10 X 40Hex Screw M10 X 40
-
25233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
26414460600 SpringSpring
-
27M5345453 AxleAxle
-
28M548469 Plate SupportPlate Support
-
29M5440313 SleeveSleeve
-
30M548841 SleeveSleeve
-
31M549718 Cross ShaftCross Shaft
-
32M5442604 Stopper StrapStopper Strap
-
33M5441643 Bolt-Eye AdjusterBolt-Eye Adjuster
-
34572034000 Adjuster KnobAdjuster Knob
-
35M5441645 PinPin
-
36M41035 CirclipCirclip
-
37234001410 Flat Washer 10 mmFlat Washer 10 mm
-
38M538798 RH Spring. SWTRH Spring. SWT
-
38M538797 LH Spring. SWTLH Spring. SWT
-
39M5343096 Rear Arm Welded. SWTRear Arm Welded. SWT
-
40M5340577 Rear Cross Shaft. SWTRear Cross Shaft. SWT
-
41M31023 CushionCushion
-
42M549656 AxleAxle
-
43M5345454 ShaftShaft
-
44M5440350 RH LeverRH Lever
-
44M5440349 LH LeverLH Lever
-
45M545758 SleeveSleeve
-
46207084544 Hex Screw M8 X 45Hex Screw M8 X 45
-
47232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
48M544417 CushionCushion
-
49207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
50M538805 LH SpringLH Spring
-
50M538806 RH SpringRH Spring
-
51M5442112 Spring Support. SWTSpring Support. SWT
-
52572030800 LH Adjust CamLH Adjust Cam
-
52572030900 RH Adjust CamRH Adjust Cam
-
53207161044 Hex Screw M6 X 10Hex Screw M6 X 10
-
54503189534 CushionCushion
-
55503189478 Thin Wheel 165. SWTThin Wheel 165. SWT
-
56549680 Shaft SupportShaft Support
-
57M31001 CirclipCirclip
-
58M40336 Screw M8 X 20Screw M8 X 20
-
59503183100 WasherWasher
-
60M31007 CirclipCirclip
-
61M40335 ScrewScrew
-
62M40050 Hex Screw With Nylon PatchHex Screw With Nylon Patch
-
63503183300 WasherWasher
-
64207181644 Hex. Screw M8 X 16Hex. Screw M8 X 16
-
65M535455 Rubber StopperRubber Stopper
-
66M548262 ProtectorProtector
-
67M541816 ShaftShaft
-
68M5440377 Eye Bolt AdjusterEye Bolt Adjuster
-
69M25004 Spring PlateSpring Plate
-
70M5341979 Shaft. SWTShaft. SWT
-
71M541815 SleeveSleeve
-
72M546577 SleeveSleeve
-
74605452332 SpacerSpacer
-
75M40239 ScrewScrew
-
76232006414 Hex Nut M10Hex Nut M10
-
77M20011 WasherWasher
-
78293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
79M31091 ShimShim
-
80605251784 Extension Tube RHExtension Tube RH
-
80605251783 Extension Tube LHExtension Tube LH
-
81503190817 Wheel 165 mm YellowWheel 165 mm Yellow
-
82503190785 Wheel 135, Yellow. SWTWheel 135, Yellow. SWT
-
83503189996 Rear Shock. WT 550/SWTRear Shock. WT 550/SWT
-
84503191029 Wheel 135. SWTWheel 135. SWT
-
85M40314 Screw M10 X 30Screw M10 X 30
-
86M5440645 Adjusment PlateAdjusment Plate
-
87M541528 Spacer. SWTSpacer. SWT
-
88M5441980 Sleeve. SWTSleeve. SWT
-
89M5440422 Sleeve. SWTSleeve. SWT
-
90M5343191 Protector. SWTProtector. SWT
-
91M40064 Hex Screw. SWTHex Screw. SWT
