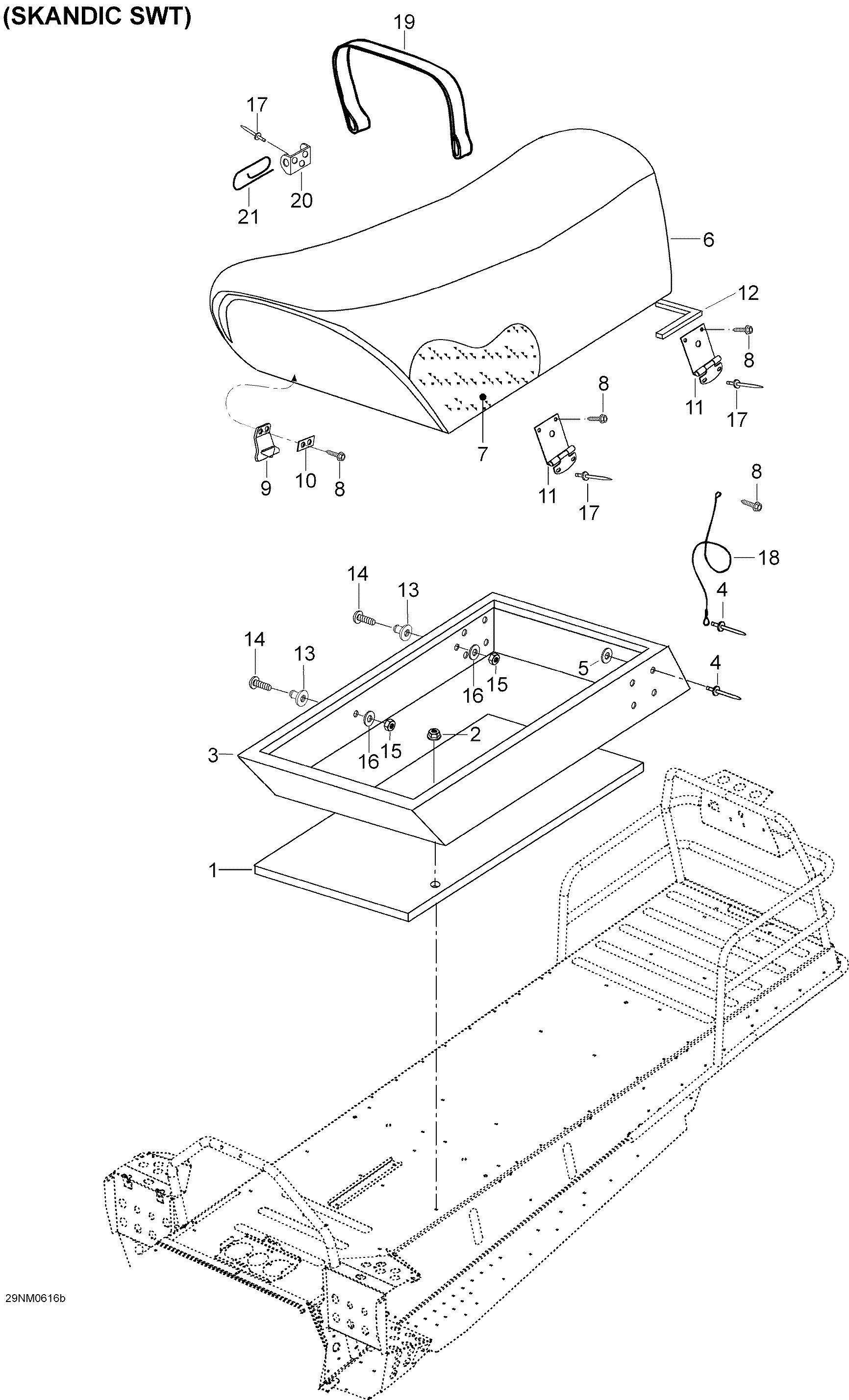

09- Seat SWT для BRP Ski-Doo Skandic SWT 550F - 2006
-
№АртикулНазвание
-
1M5346331 FoamFoam
-
2M33200 Nut M6Nut M6
-
3M5246336 Welded Seat Base WeldWelded Seat Base Weld
-
4M36005 RivetRivet
-
5M20008 Washer 5 mmWasher 5 mm
-
7605153077 Cover SeatCover Seat
-
8M40888 ScrewScrew
-
9M5346383 LatchLatch
-
10M5446848 PlatePlate
-
11M5446374 HingeHinge
-
12M390002 CushionCushion
-
13605449087 Counter RollerCounter Roller
-
14M40168 ScrewScrew
-
15232541414 Elastic Stop Nut M4 X 70Elastic Stop Nut M4 X 70
-
16M20037 WasherWasher
-
17M36083 RivetRivet
-
18M546777 Retainer CableRetainer Cable
-
19M538856 Seat BeltSeat Belt
-
20M548824 Seat Belt LatchSeat Belt Latch
-
21M548834 Hair PinHair Pin
