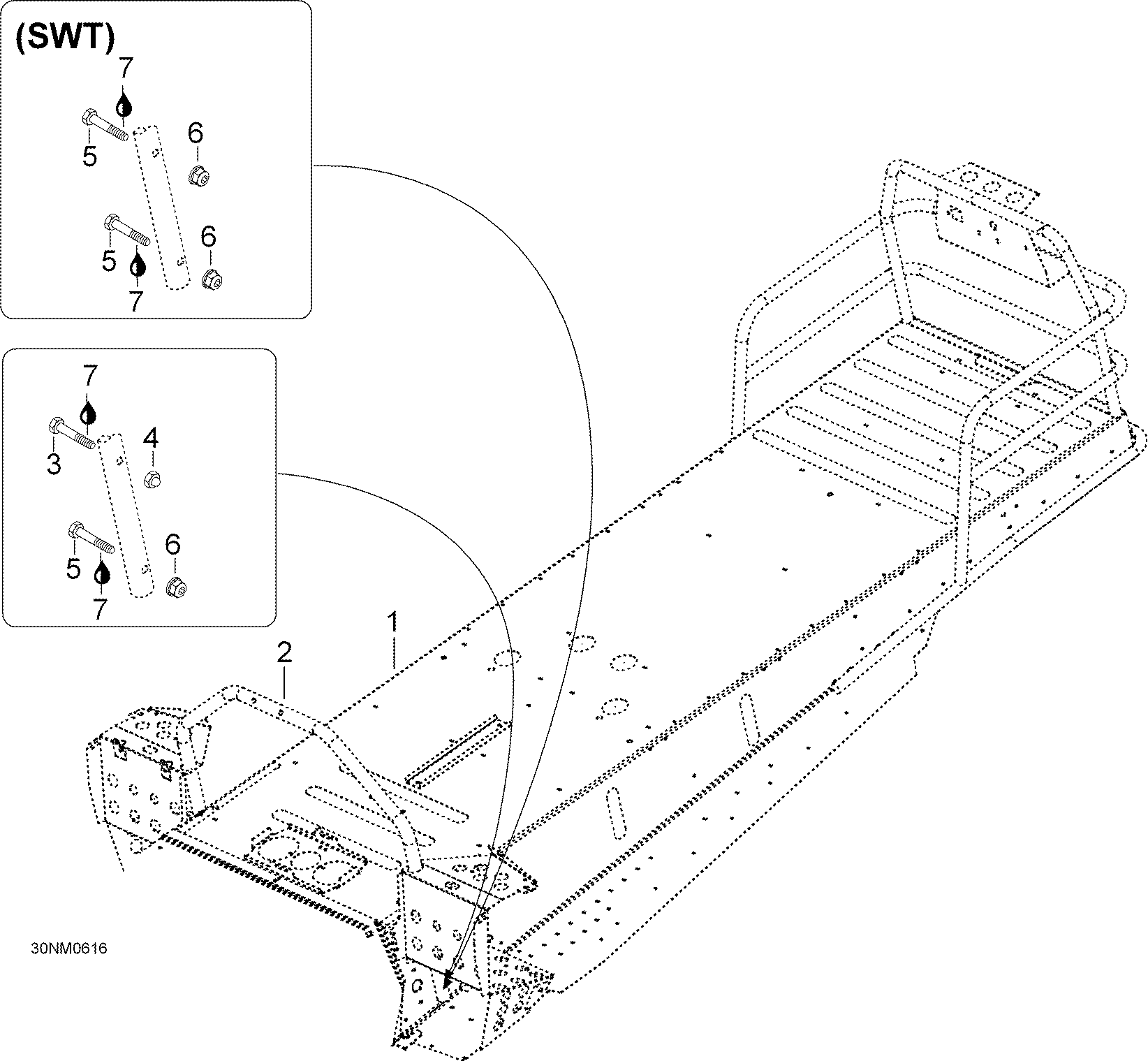

09- Frame 550 SWT для BRP Ski-Doo Skandic SWT 550F - 2006
-
№АртикулНазвание
-
1605153406 Frame Ass'y. Includes 1 to 6, SWTFrame Ass'y. Includes 1 to 6, SWT
-
2605153734 Handle Support. SWTHandle Support. SWT
-
4M33051 Hex Nut M6Hex Nut M6
-
5M40002 Hex. Screw M6 X 40. SWTHex. Screw M6 X 40. SWT
-
6M33200 Nut M6. SWTNut M6. SWT
-
7293800060 Loctite 243, 250 mlLoctite 243, 250 ml
