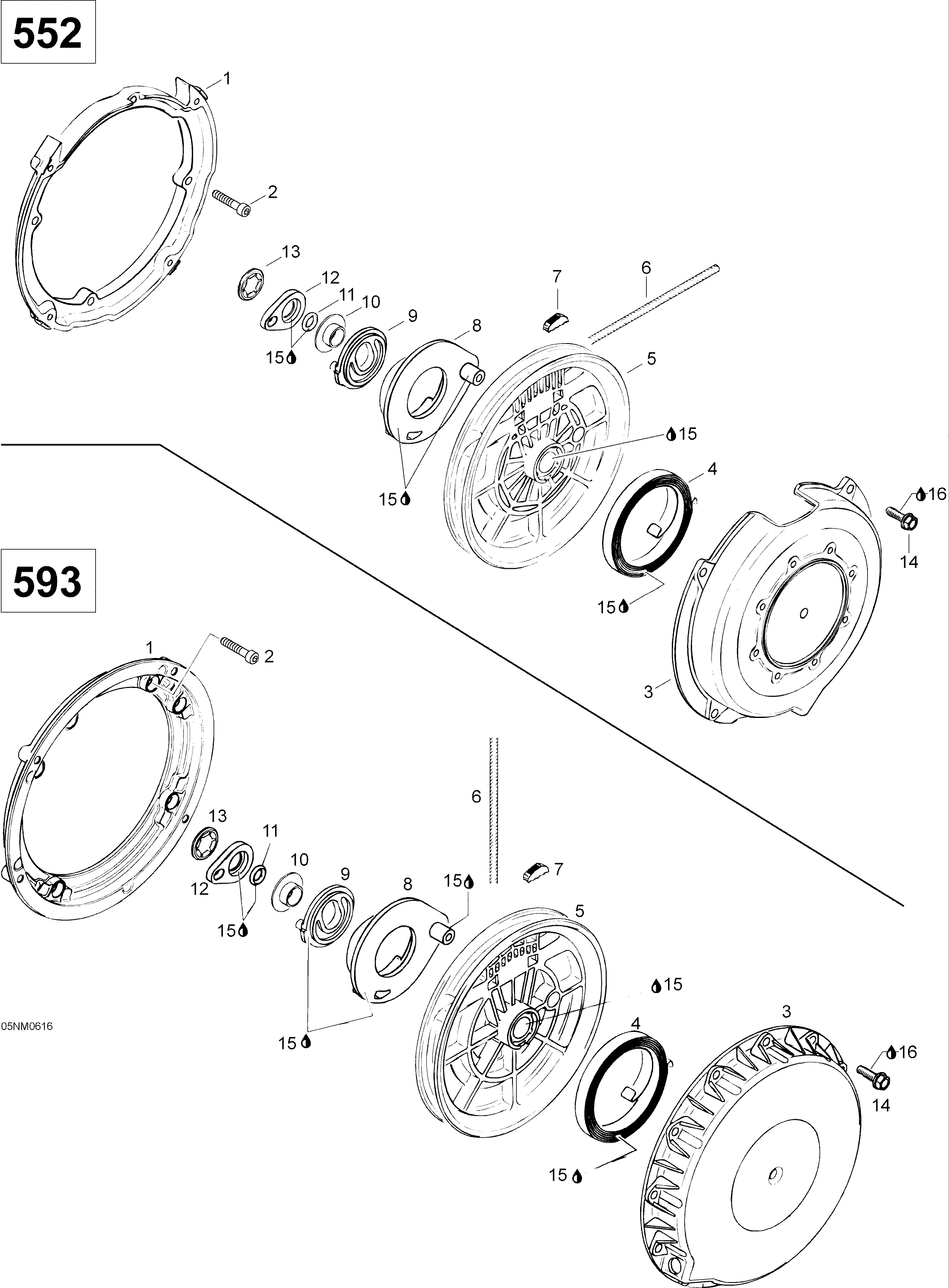

04- Rewind Starter 552 для BRP Ski-Doo Skandic WT 550F - 2006
-
№АртикулНазвание
-
1420810952 Flange Connector. WT 550/SWTFlange Connector. WT 550/SWT
-
2420440202 Flanged Torx Screw M6x 20. WT 550/SWTFlanged Torx Screw M6x 20. WT 550/SWT
-
3420888219 Rewind Starter Ass'y. Includes 3 to 12, WT 550/SWTRewind Starter Ass'y. Includes 3 to 12, WT 550/SWT
-
3420811346 Starter Housing. WT 550/SWTStarter Housing. WT 550/SWT
-
4420939115 Rewind SpringRewind Spring
-
5420852480 Rope Sheave. WT 550/SWTRope Sheave. WT 550/SWT
-
6512500200 Starter Rope 2200 mmStarter Rope 2200 mm
-
7420852070 Key Clamp. WT 550/SWTKey Clamp. WT 550/SWT
-
8420852296 Pawl. WT 550/SWTPawl. WT 550/SWT
-
9420852305 Pawl LockPawl Lock
-
10420847925 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
12420852520 Lock RingLock Ring
-
13420845560 Locking ElementLocking Element
-
14420941250 Hex Tapping Screw M6 X 20. WT 550/SWTHex Tapping Screw M6 X 20. WT 550/SWT
-
15420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
-
16293800060 Loctite 243, 250 mlLoctite 243, 250 ml
