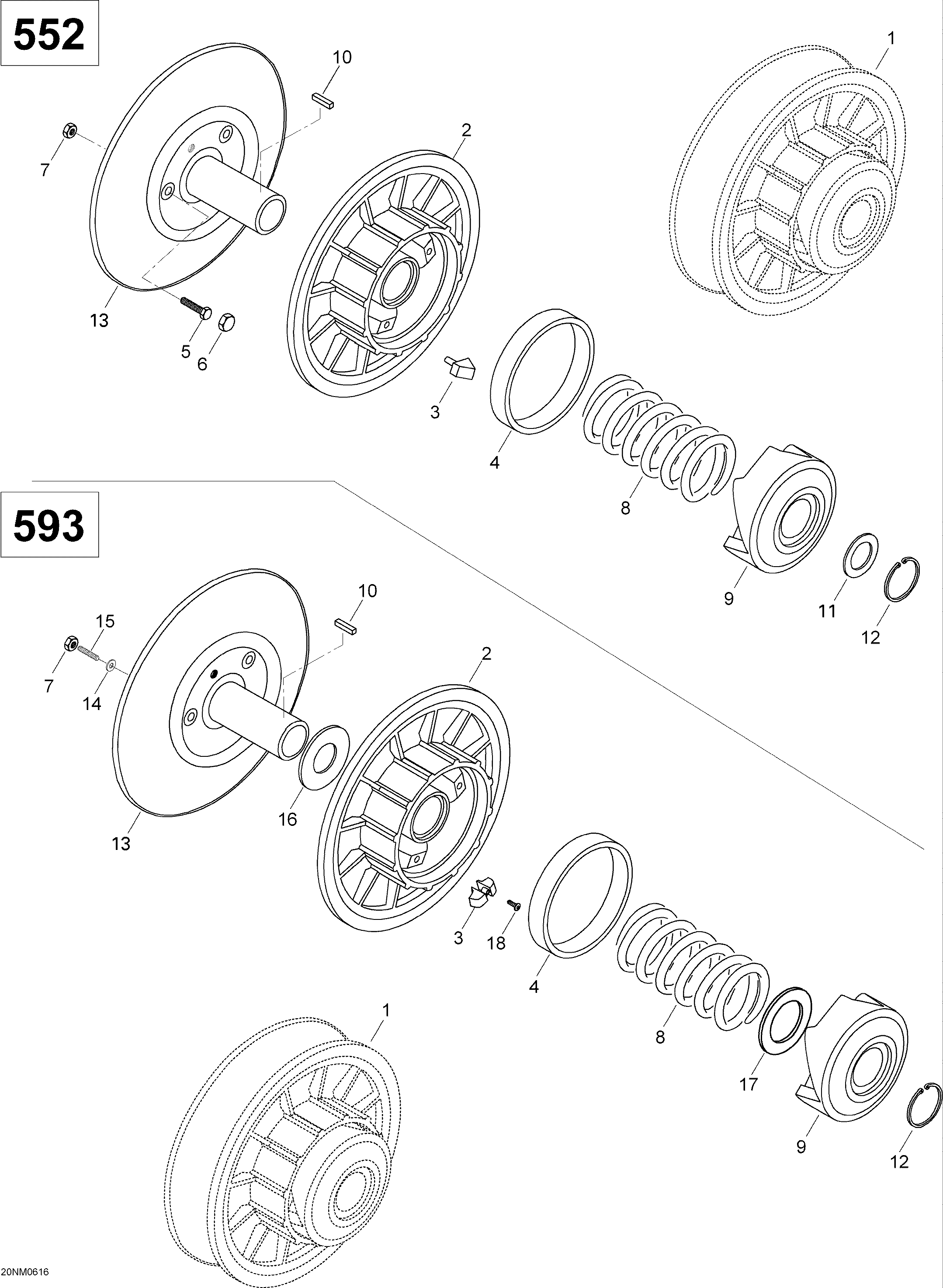

05- Driven Pulley 550 для BRP Ski-Doo Skandic WT 550F - 2006
-
№АртикулНазвание
-
2417126393 Sliding Flange Ass'y. Includes 2 to 4, WT 550/SWTSliding Flange Ass'y. Includes 2 to 4, WT 550/SWT
-
3417212500 Shoe Cam Slider. WT 550/SWTShoe Cam Slider. WT 550/SWT
-
4M140053 BushingBushing
-
5417118900 Hex Screw. WT 550/SWTHex Screw. WT 550/SWT
-
6417119600 Plastic Cap. WT 550/SWTPlastic Cap. WT 550/SWT
-
7417119000 Nut. WT 550/SWTNut. WT 550/SWT
-
8417119100 Release SpringRelease Spring
-
9M140049 Cam 40/35. WT 550/SWTCam 40/35. WT 550/SWT
-
10417119400 KeyKey
-
11417117000 Shim. WT 550/SWTShim. WT 550/SWT
-
11417114900 Shim. WT 550/SWTShim. WT 550/SWT
-
12371903100 CirclipCirclip
-
13417126310 Fixed Flange Machined. WT 550/SWTFixed Flange Machined. WT 550/SWT
