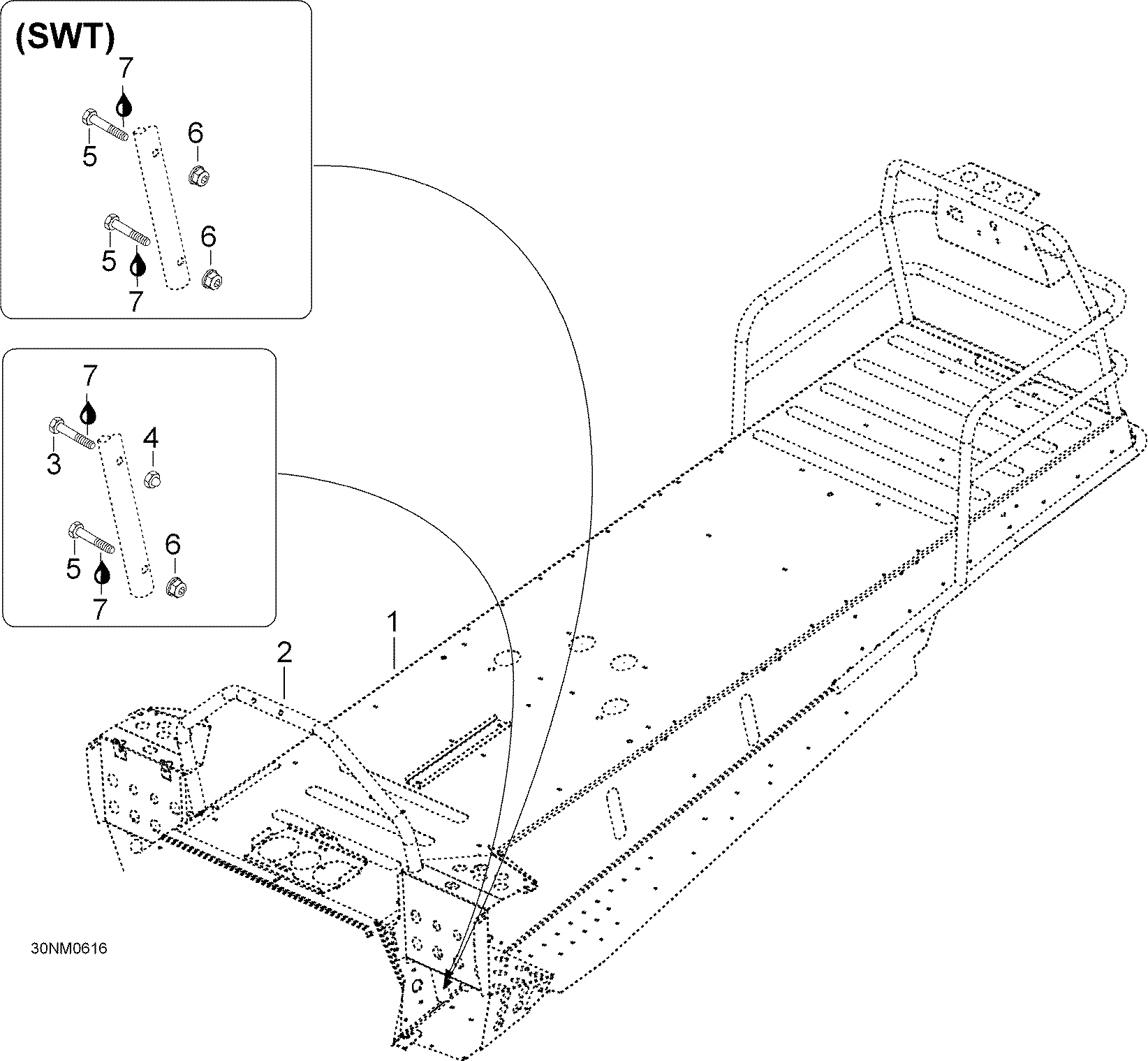

09- Frame 550 WT для BRP Ski-Doo Skandic WT 550F - 2006
-
№АртикулНазвание
-
1605153405 Frame Ass'y. Includes 1 to 6, WT 550Frame Ass'y. Includes 1 to 6, WT 550
-
2605150258 Handle Support. WT 550/WT600Handle Support. WT 550/WT600
-
3M40032 Hex. Screw M6 X 30. WT 550/WT600Hex. Screw M6 X 30. WT 550/WT600
-
4M33051 Hex Nut M6Hex Nut M6
-
5M40002 Hex. Screw M6 X 40. WT 550/WT600Hex. Screw M6 X 40. WT 550/WT600
-
6M33200 Nut M6. WT 550/WT600Nut M6. WT 550/WT600
-
7293800060 Loctite 243, 250 mlLoctite 243, 250 ml
