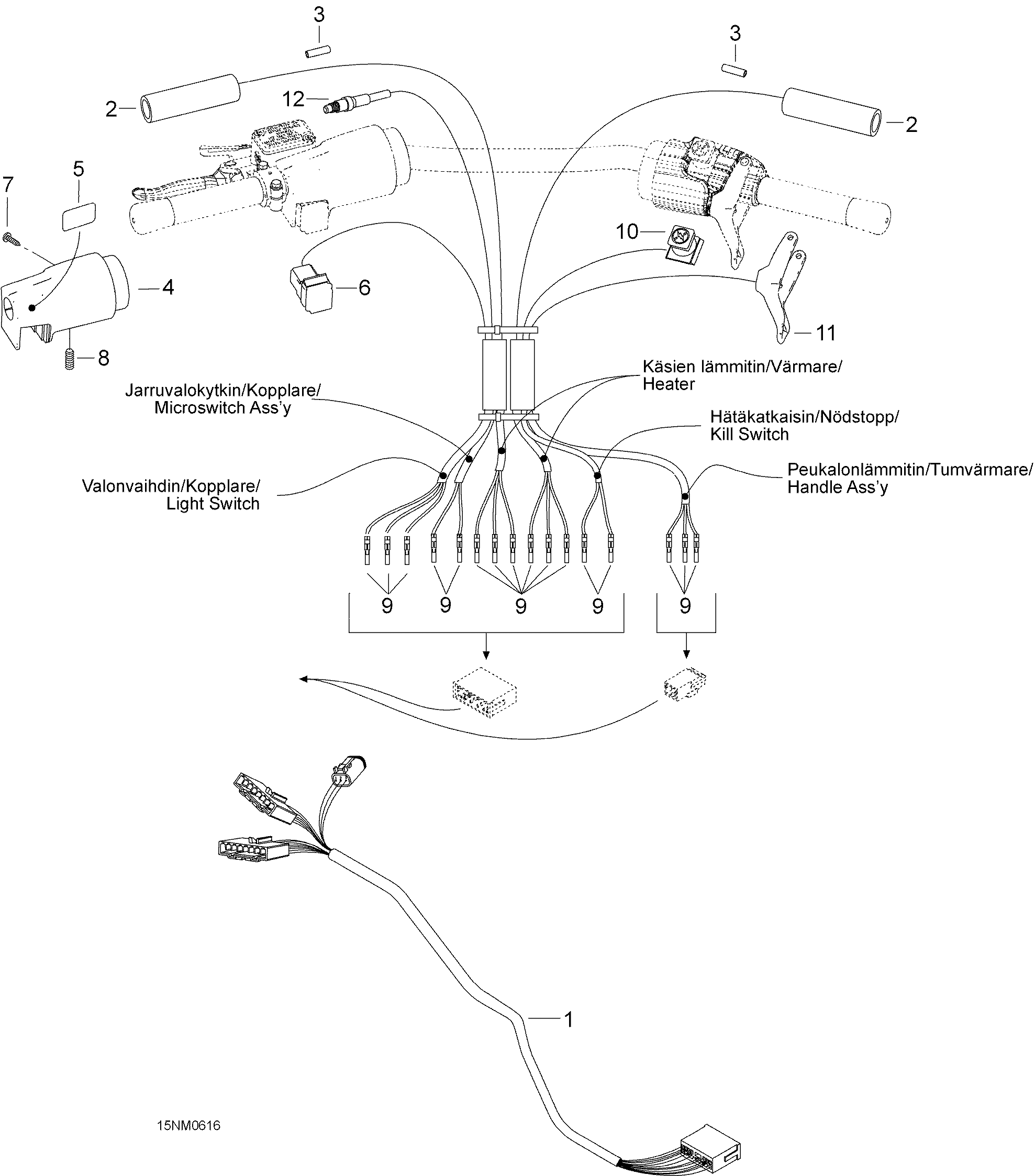

10- Steering Wiring Harness 550 WT для BRP Ski-Doo Skandic WT 550F - 2006
-
№АртикулНазвание
-
1M5248351 Wiring Harness. WT 550Wiring Harness. WT 550
-
2515175664 Heating GripHeating Grip
-
3M39023 HousingHousing
-
4515175696 Brake HousingBrake Housing
-
5415025500 Switch DecalSwitch Decal
-
6515175814 Light SwitchLight Switch
-
7250000022 Phillips ScrewPhillips Screw
-
8414440800 Set Screw M8 X 10Set Screw M8 X 10
-
9M42603 Male TerminalMale Terminal
-
10515175410 Kill SwitchKill Switch
-
11512059767 Handle Ass'Y. WT 550/SWTHandle Ass'Y. WT 550/SWT
-
12507032366 MicroswitchMicroswitch
