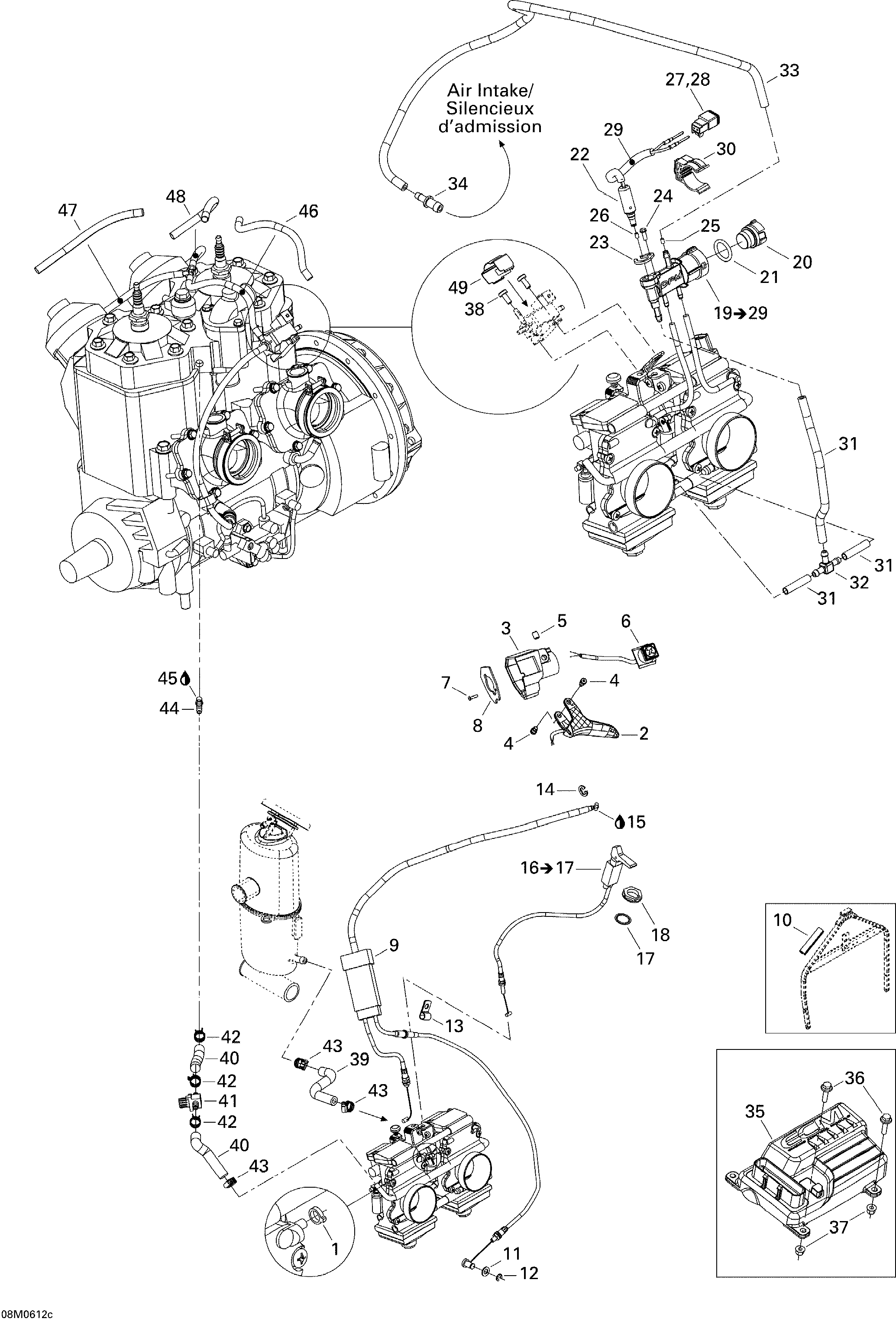

01- Engine 2 для BRP Ski-Doo Summit 800 HO, Adrenaline & X - 2006
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
2512059891 Handle Ass'yHandle Ass'y
-
3512059295 Throttle HousingThrottle Housing
-
4732601143 Flanged ScrewFlanged Screw
-
5414440800 Set Screw M8 X 10Set Screw M8 X 10
-
6515176091 Kill SwitchKill Switch
-
7250000022 Phillips ScrewPhillips Screw
-
8512059507 PlatePlate
-
9512060084 Throttle Cable. AdrenalineThrottle Cable. Adrenaline
-
9512060088 Throttle Cable. XThrottle Cable. X
-
10512059750 ProtectorProtector
-
11234081100 Flat Washer 8 mmFlat Washer 8 mm
-
12414753500 CirclipCirclip
-
13414176000 Clip, CableClip, Cable
-
14414274500 CirclipCirclip
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16512059266 Choke Cable. Includes 16 to 17Choke Cable. Includes 16 to 17
-
17394103300 Lock Washer, Interior TeethLock Washer, Interior Teeth
-
18512059094 Plastic NutPlastic Nut
-
19512060002 Pressure Manifold Ass'y. Includes 19 to 29Pressure Manifold Ass'y. Includes 19 to 29
-
20270600009 CapCap
-
21293300042 O-RingO-Ring
-
22515175701 Solenoid ValveSolenoid Valve
-
23415061600 Solenoid LockSolenoid Lock
-
24241140060 Screw K40 X 10Screw K40 X 10
-
25404161819 Starter JetStarter Jet
-
26404161825 Starter JetStarter Jet
-
27515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
28515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
29515175332 Low Temperature Tubing, VinylLow Temperature Tubing, Vinyl
-
30512058919 SupportSupport
-
31415080200 LineLine
-
32414729300 T-FittingT-Fitting
-
33415080200 LineLine
-
34293710035 Straight FittingStraight Fitting
-
35512060053 Calibrated ModuleCalibrated Module
-
36207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
37233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
38208651241 Phillips Screw M5 X 12Phillips Screw M5 X 12
-
39509000171 HoseHose
-
40509000093 Hose 8 mmHose 8 mm
-
41512059324 Valve 5/16''Valve 5/16''
-
42414655700 Spring ClampSpring Clamp
-
43293650170 Tridon Hose ClampTridon Hose Clamp
-
44512059970 Male Connector 1/8''-27 NptMale Connector 1/8''-27 Npt
-
45293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
46409901700 Tubing, 9 mmTubing, 9 mm
-
47409901700 Tubing, 9 mmTubing, 9 mm
-
48409901700 Tubing, 9 mmTubing, 9 mm
-
49512059809 Heating Element BracketHeating Element Bracket
