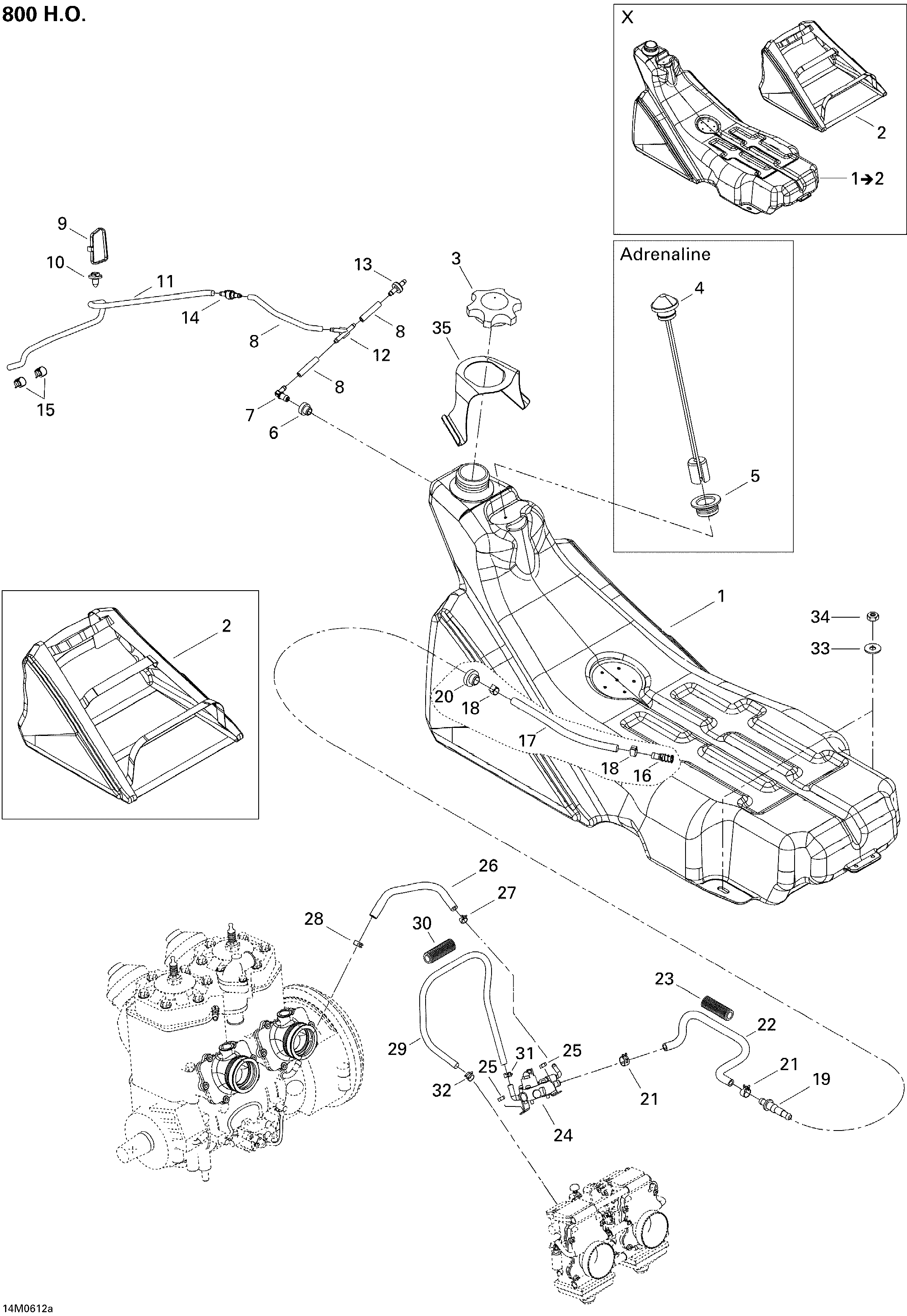

02- Fuel System 800 HO для BRP Ski-Doo Summit 800 HO, Adrenaline & X - 2006
-
№АртикулНазвание
-
1513033090 Fuel Tank. AdrenalineFuel Tank. Adrenaline
-
1861302200 Translucent Fuel Tank Kit. X, Includes Black Tank CoverTranslucent Fuel Tank Kit. X, Includes Black Tank Cover
-
2513033075 Tank Cover, Black. XTank Cover, Black. X
-
2513033176 Tank Cover, Red. XTank Cover, Red. X
-
3513033024 Fuel Tank CapFuel Tank Cap
-
4513033095 Fuel Gauge. AdrenalineFuel Gauge. Adrenaline
-
5293720058 Grommet. AdrenalineGrommet. Adrenaline
-
6513032908 GrommetGrommet
-
7414580700 Elbow Male ConnectorElbow Male Connector
-
8415080200 LineLine
-
9414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
10293730018 Dart MountDart Mount
-
11415080200 LineLine
-
12293710059 Y-FittingY-Fitting
-
13275500398 Check ValveCheck Valve
-
14275500505 Check ValveCheck Valve
-
15414554800 Spring ClampSpring Clamp
-
16414872100 Fuel FilterFuel Filter
-
17513033070 HoseHose
-
18513033010 Norma Spring ClampNorma Spring Clamp
-
19414872700 Male ConnectorMale Connector
-
20570273900 GrommetGrommet
-
21293650053 Crimp ClampCrimp Clamp
-
22513033073 HoseHose
-
23415080000 Tubing, 16 mmTubing, 16 mm
-
24403901811 Fuel Pump. Manuel StartFuel Pump. Manuel Start
-
24403901812 Fuel Pump. Modeles Demarrage ElectriqueFuel Pump. Modeles Demarrage Electrique
-
25233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26513033035 HoseHose
-
27414415200 Spring ClampSpring Clamp
-
28513033029 Spring ClampSpring Clamp
-
29415117800 TubeTube
-
30415079900 Tubing, 10 mmTubing, 10 mm
-
31293650042 Oetiker ClampOetiker Clamp
-
32414420700 Universal Spring Clamp, 3/8''Universal Spring Clamp, 3/8''
-
33234082410 Flat Washer M8Flat Washer M8
-
34232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
35513033066 SupportSupport
