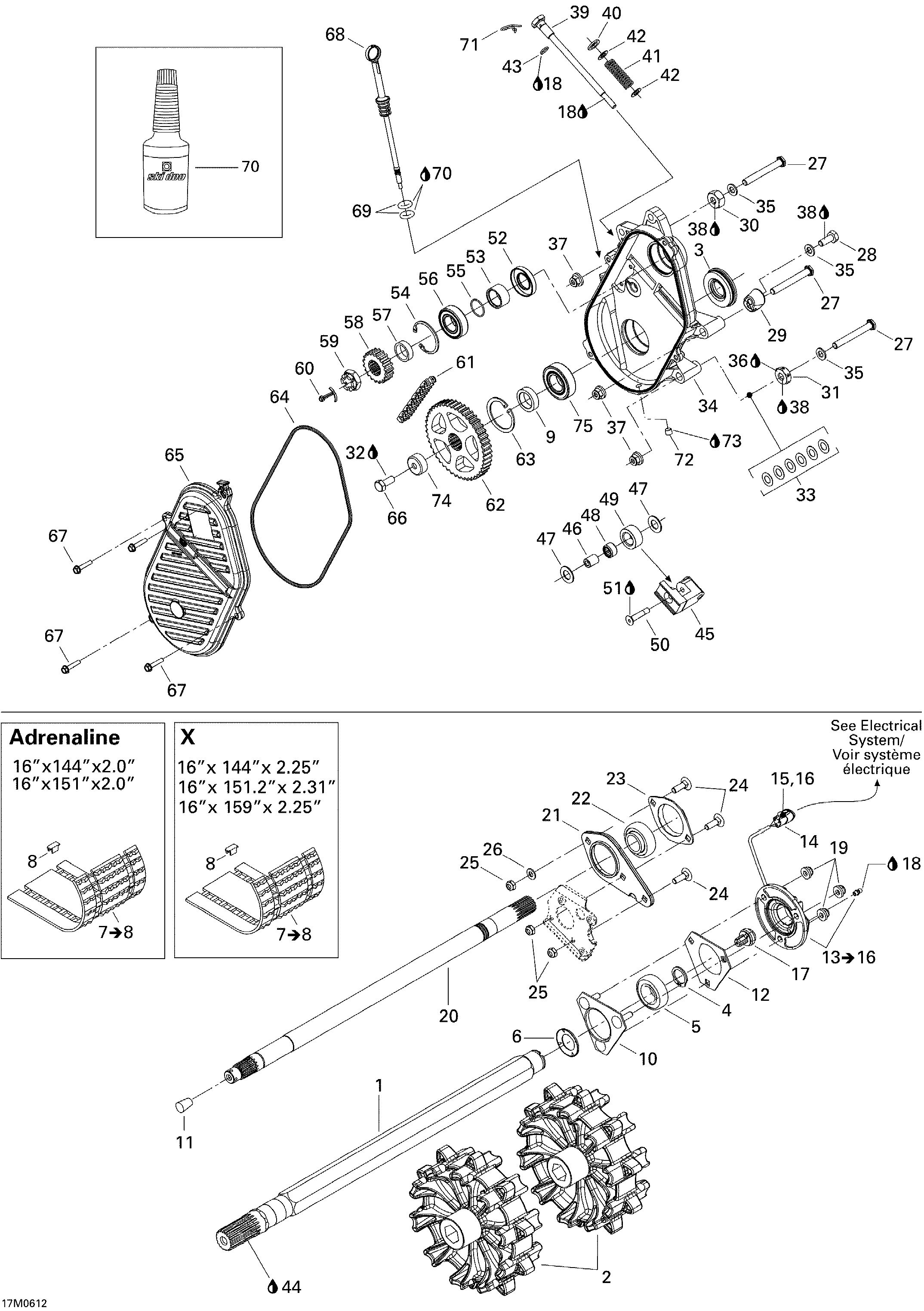

05- Drive System 800HO для BRP Ski-Doo Summit 800 HO, Adrenaline & X - 2006
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152502 Sprocket, 10 Teeth, Interior/exterior. Adrenaline. Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applicationsSprocket, 10 Teeth, Interior/exterior. Adrenaline. Use drive axle assembly w/sprockets 504152849 for SUMMIT 1000SDI 2005-2007, RENEGADE 1000SDI 2007**Use drive axle assembly w/sprockets 504152847 for all other model applications
-
2504152503 9 Teeth Double Sprocket. X9 Teeth Double Sprocket. X
-
3504151918 Oil Seal Ass'yOil Seal Ass'y
-
4371910200 CirclipCirclip
-
5504152009 Ball BearingBall Bearing
-
6501017400 Bearing ProtectorBearing Protector
-
7504152528 Track-assy 16'' X 144'' X 2.0''. Adrenaline, Includes 7 to 8Track-assy 16'' X 144'' X 2.0''. Adrenaline, Includes 7 to 8
-
7504152529 Track-assy 16'' X 151'' X 2.0''. Adrenaline, Includes 7 to 8Track-assy 16'' X 151'' X 2.0''. Adrenaline, Includes 7 to 8
-
7504152530 Track-assy 16'' X 151.2'' X 2.31''. X, Includes 7 to 8Track-assy 16'' X 151.2'' X 2.31''. X, Includes 7 to 8
-
7504152536 Track-assy 16'' X 159'' X 2.25''. X, Includes 7 to 8Track-assy 16'' X 159'' X 2.25''. X, Includes 7 to 8
-
7504152537 Track-assy 16'' X 144'' X 2.25''. X, Includes 7 to 8Track-assy 16'' X 144'' X 2.25''. X, Includes 7 to 8
-
8504152410 GuideGuide
-
9504152058 ShimShim
-
10504151860 Bearing HousingBearing Housing
-
11414784800 CorkCork
-
12501025000 FlangeFlange
-
13504152345 Rotation Sensor. Includes 13 to 16Rotation Sensor. Includes 13 to 16
-
14515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
15278000632 Female TerminalFemale Terminal
-
16515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
17504152040 Magnetic AdaptorMagnetic Adaptor
-
18219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
19233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
20504152018 Counter Shaft. AdrenalineCounter Shaft. Adrenaline
-
20504152020 Counter-Shaft. XCounter-Shaft. X
-
21504151968 SpacerSpacer
-
22504152535 Ball BearingBall Bearing
-
23501026900 FlangeFlange
-
24207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
25232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
26234081410 Flat Washer 8 mmFlat Washer 8 mm
-
27250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
28207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
29504152252 SpacerSpacer
-
30504083800 SpacerSpacer
-
31504152237 SpacerSpacer
-
32293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
33504073700 WasherWasher
-
34504152482 ChaincaseChaincase
-
35503175800 WasherWasher
-
36293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
37233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
38293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
39504151946 Adjustment ScrewAdjustment Screw
-
40503189148 WasherWasher
-
41504151945 SpringSpring
-
42503189564 WasherWasher
-
43504151954 O-RingO-Ring
-
44219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
45504151940 Chain TensionerChain Tensioner
-
46504080200 SpacerSpacer
-
47504080300 WasherWasher
-
48405403000 Needle BearingNeedle Bearing
-
49414531300 RollerRoller
-
50732601144 ScrewScrew
-
51293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
52415049300 SealSeal
-
53507031500 SpacerSpacer
-
54371901700 Circlip, InteriorCirclip, Interior
-
55414876700 O-RingO-Ring
-
56504152006 Ball BearingBall Bearing
-
57504152587 ShimShim
-
58504096200 Sprocket, 21 Teeth. X With 144'' & 151'' TrackSprocket, 21 Teeth. X With 144'' & 151'' Track
-
58504152030 Sprocket (19 Teeth). Adrenaline, X With 159'' TrackSprocket (19 Teeth). Adrenaline, X With 159'' Track
-
59250000012 Hex Castle Nut M20 X 1.5Hex Castle Nut M20 X 1.5
-
60371006300 Pin CotterPin Cotter
-
61504151857 Drive Chain, 74 LinksDrive Chain, 74 Links
-
62504152238 45 Tooth Sprocket45 Tooth Sprocket
-
63415064300 Circlip, InteriorCirclip, Interior
-
64415046400 O-RingO-Ring
-
65504152471 Chaincase CoverChaincase Cover
-
66207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
67210263080 Hex Forming Screw M6 X 30Hex Forming Screw M6 X 30
-
68504151703 Filler Cap Ass'yFiller Cap Ass'y
-
69414969400 O-RingO-Ring
-
70413803300 Synthetic Chaincase Oil, 12 X 355 mlSynthetic Chaincase Oil, 12 X 355 ml
-
71414575600 Hair PinHair Pin
-
72504151921 Plug 1/8''-27Plug 1/8''-27
-
73293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
74504152460 CapCap
-
75504152005 Ball BearingBall Bearing
