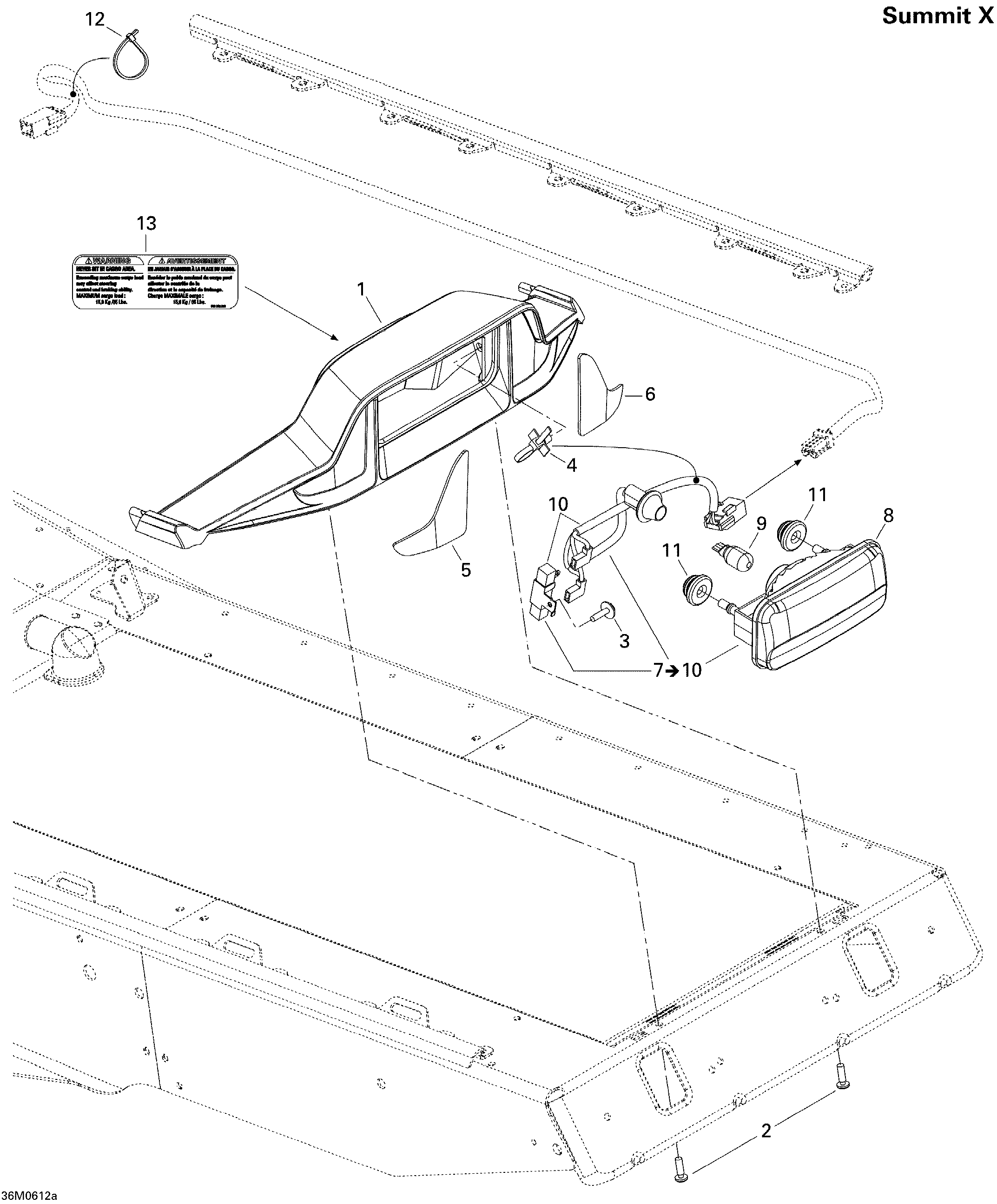

09- Luggage Rack X для BRP Ski-Doo Summit 800 HO, Adrenaline & X - 2006
-
№АртикулНазвание
-
1511000447 Light SupportLight Support
-
2250000146 Torx Screw K50 X 16Torx Screw K50 X 16
-
3250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
4293750009 Tie Rap 160 mmTie Rap 160 mm
-
5511000459 Rear ReflectorRear Reflector
-
6511000460 Rear ReflectorRear Reflector
-
7511000446 Rear Light Ass'y. Includes 7 to 10Rear Light Ass'y. Includes 7 to 10
-
8710000652 Lens BoxLens Box
-
9710000653 BulbBulb
-
10511000445 Wiring HarnessWiring Harness
-
11705001119 Oblong WasherOblong Washer
-
12293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
13516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
14293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
