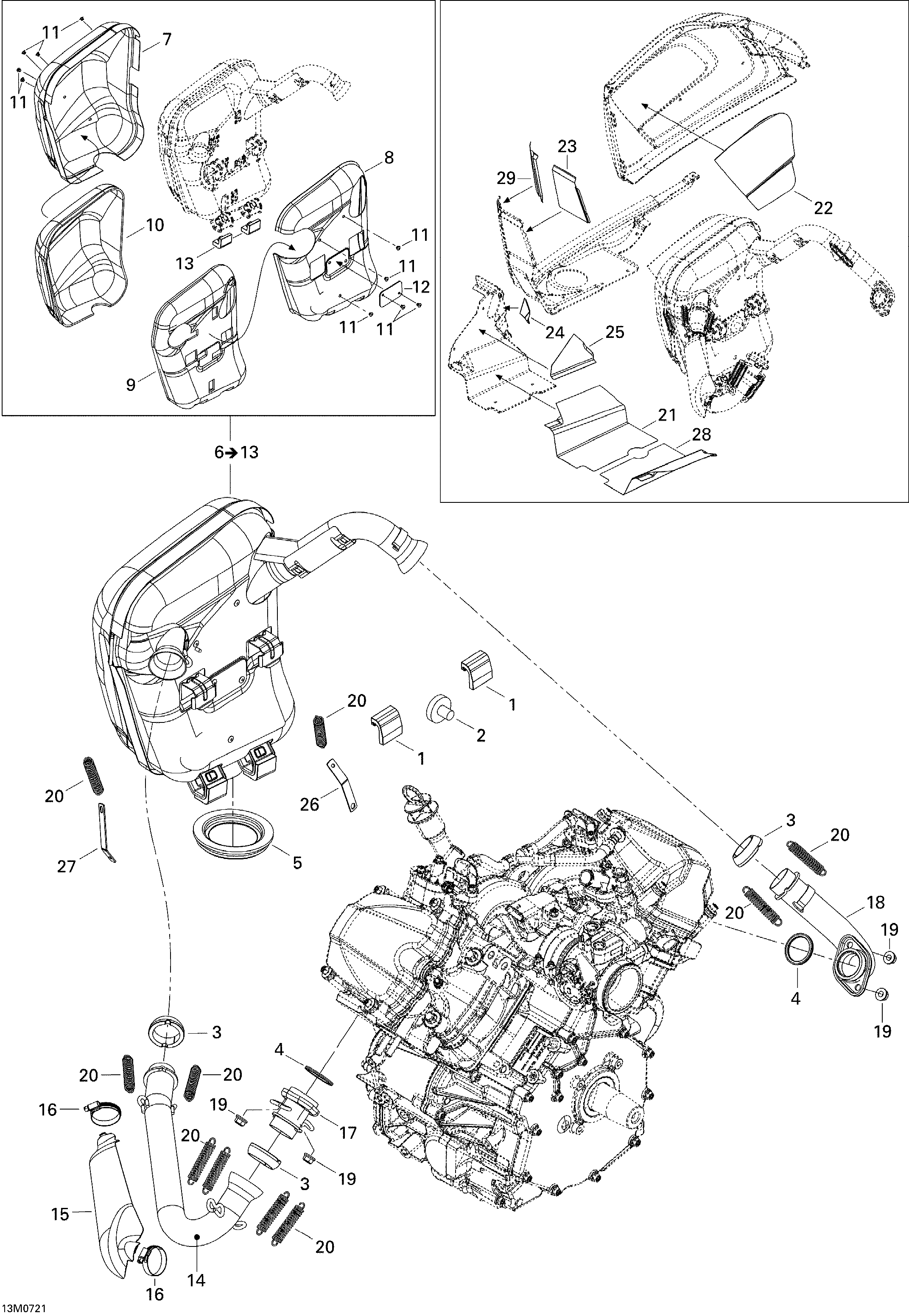

01- Exhaust System для BRP Ski-Doo Legend Trail V800 - 2007
-
№АртикулНазвание
-
1514053372 Upper StopperUpper Stopper
-
2514053654 Rubber BumperRubber Bumper
-
3514054127 Exhaust GasketExhaust Gasket
-
4707600317 GasketGasket
-
5514054240 Exhaust GrommetExhaust Grommet
-
6514054071 Muffler Ass'y. Includes 6 to 13Muffler Ass'y. Includes 6 to 13
-
7514053100 RH Heat ShieldRH Heat Shield
-
8514054096 LH Heat ShieldLH Heat Shield
-
9514054170 LH Isolating WoolLH Isolating Wool
-
10514053103 RH Isolating woolRH Isolating wool
-
11390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
12514053429 ReinforcementReinforcement
-
13514054223 Lower StopperLower Stopper
-
14514054135 Welded PipeWelded Pipe
-
15514054225 Heat DeflectorHeat Deflector
-
16293650098 Norma Gear ClampNorma Gear Clamp
-
17514054088 Welded Front PipeWelded Front Pipe
-
18514054093 Welded Rear PipeWelded Rear Pipe
-
19233081416 Hex Flanged Nut M8Hex Flanged Nut M8
-
20415107100 SpringSpring
-
21514054245 Reflective SheetReflective Sheet
-
22514054083 Feflective SheetFeflective Sheet
-
23514054267 Reflective SheetReflective Sheet
-
24514054268 Reflective SheetReflective Sheet
-
25514054266 Reflective SheetReflective Sheet
-
26514053725 Spring BracketSpring Bracket
-
27514053393 Spring BracketSpring Bracket
-
28514054133 Reflective SheetReflective Sheet
-
29514054012 Reflective SheetReflective Sheet
