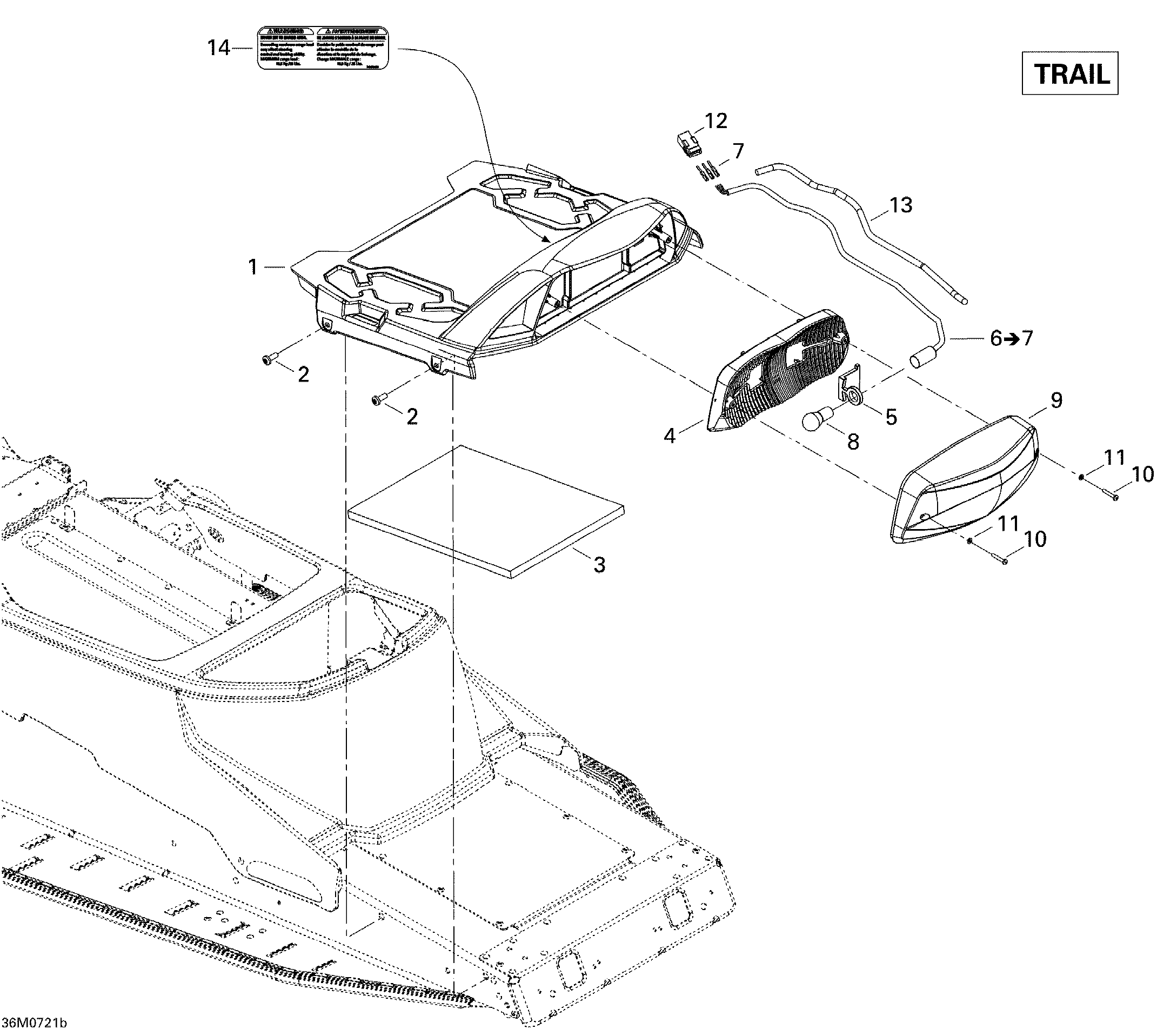

09- Luggage Rack Trail для BRP Ski-Doo Legend Trail V800 - 2007
-
№АртикулНазвание
-
1511000434 Luggage RackLuggage Rack
-
2250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
3511000359 Radiator Cover Shim 121''Radiator Cover Shim 121''
-
4510004442 ReflectorReflector
-
5511000431 Bulb SupportBulb Support
-
6511000465 Bulb Socket. Includes 6 to 7Bulb Socket. Includes 6 to 7
-
7515175232 Male TerminalMale Terminal
-
8410504100 Tail Lamp BulbTail Lamp Bulb
-
9511000315 LensLens
-
10209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
11414516400 WasherWasher
-
12515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
13515175442 Tubing, 6 mmTubing, 6 mm
-
14516003039 Maximum Cargo Load LabelMaximum Cargo Load Label
