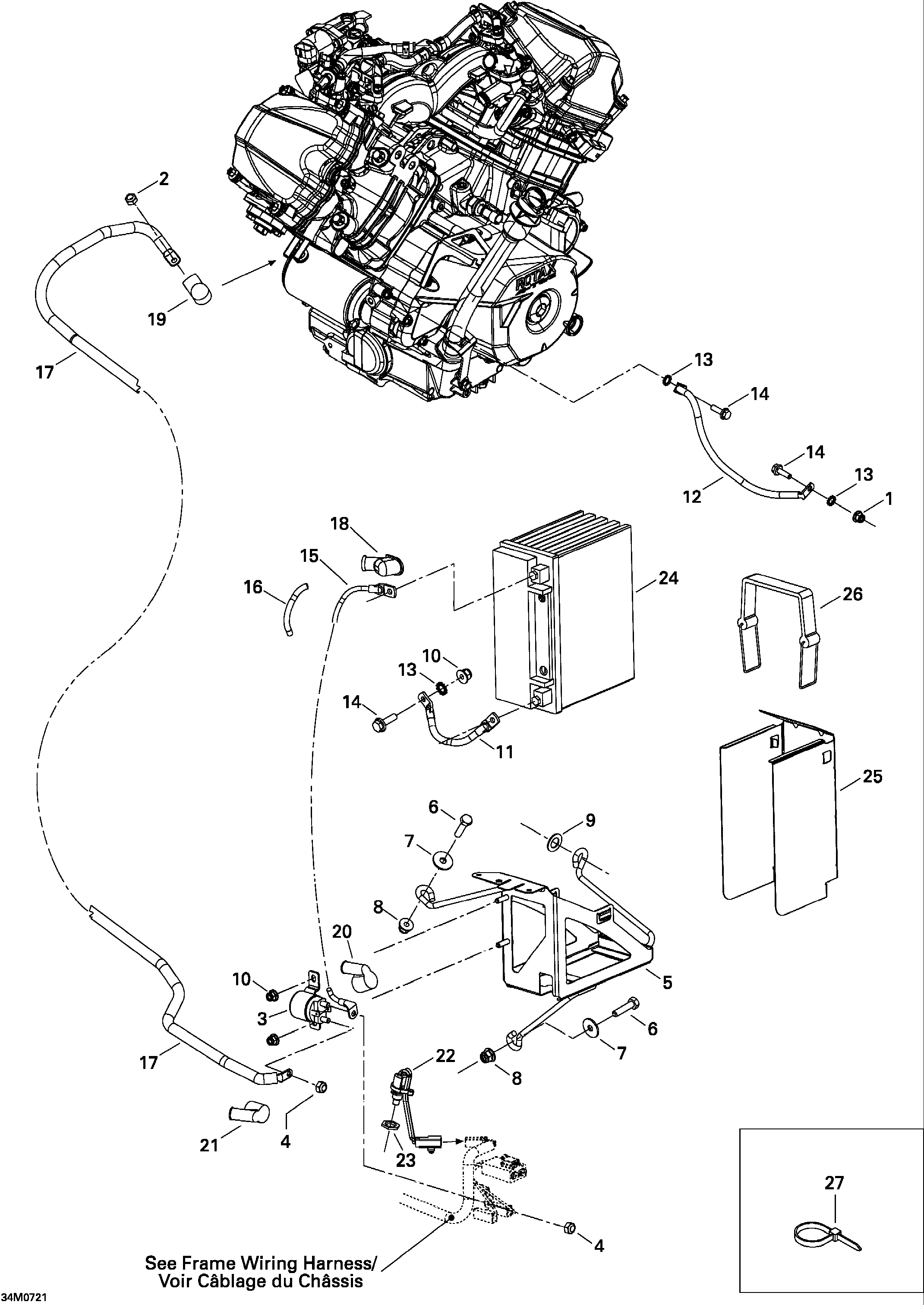

10- Battery And Starter для BRP Ski-Doo Legend Trail V800 - 2007
-
№АртикулНазвание
-
1233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3515176011 Starter RelayStarter Relay
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5515176401 Battery SupportBattery Support
-
6207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
7224061201 Flat WasherFlat Washer
-
8233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
9503175800 WasherWasher
-
10233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
11515175749 Ground WireGround Wire
-
12515176407 Ground WireGround Wire
-
13234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
14207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
15515175904 Battery WireBattery Wire
-
16409901700 Tubing 9 mmTubing 9 mm
-
17515176392 Battery WireBattery Wire
-
18710000495 Protector CapProtector Cap
-
19278000020 Protection CapProtection Cap
-
20570064200 Protection CapProtection Cap
-
21570064200 Protection CapProtection Cap
-
22515176472 Switch Ass'ySwitch Ass'y
-
23250100012 Brass NutBrass Nut
-
24410922962 Battery, 21 AmperesBattery, 21 Amperes
-
25515175616 DeflectorDeflector
-
26515175955 Battery StrapBattery Strap
-
27414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
27293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
27293750009 Tie-Rap 160 mmTie-Rap 160 mm
