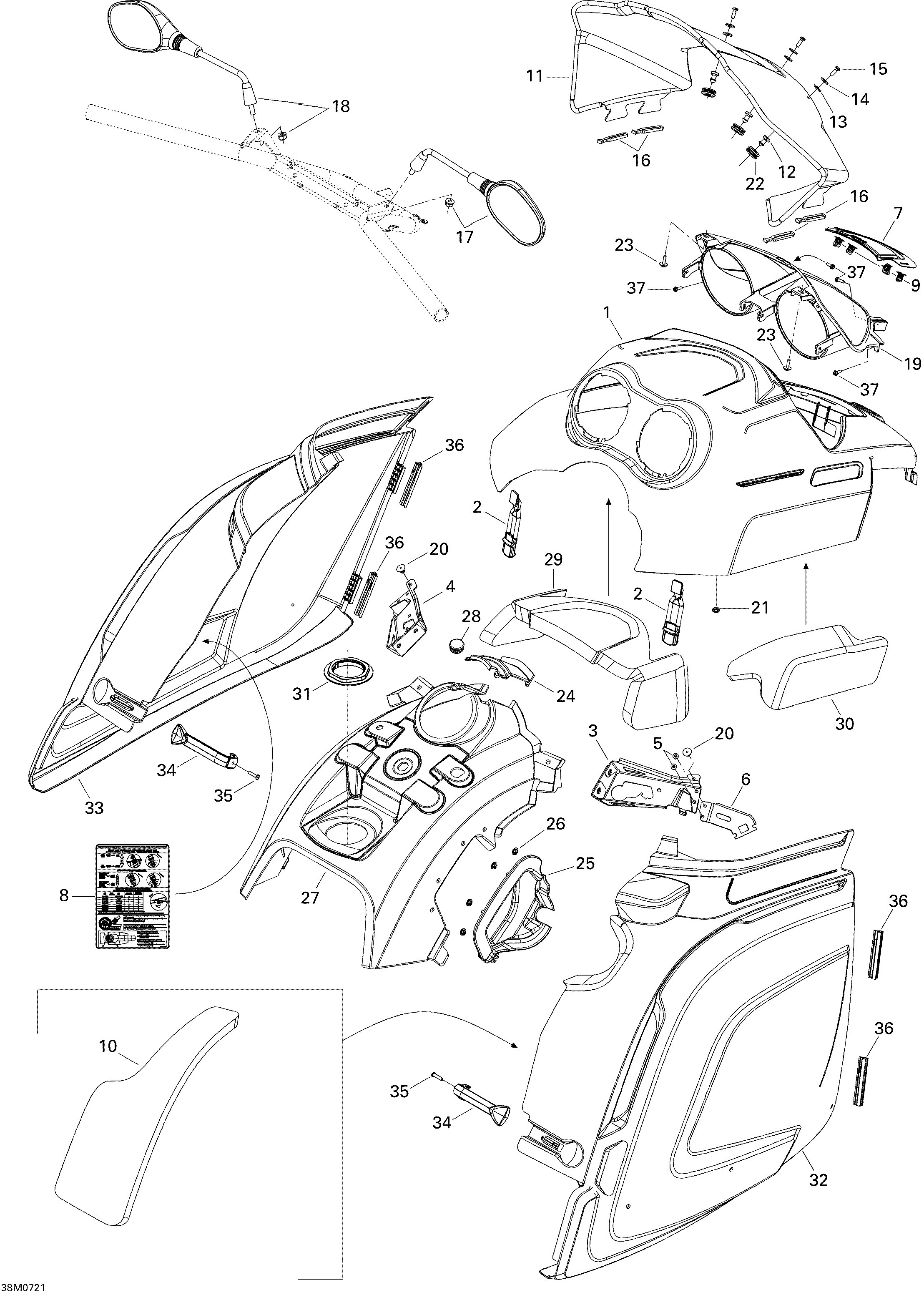

09- Hood для BRP Ski-Doo Legend Trail V800 - 2007
-
№АртикулНазвание
-
1517303515 HoodHood
-
2517303518 LatchLatch
-
3517303662 RH BracketRH Bracket
-
4517303663 LH BracketLH Bracket
-
5390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517303517 BracketBracket
-
7517303331 Center Hood GrillCenter Hood Grill
-
8517303594 Adjustment Suspension Decal. TRAILAdjustment Suspension Decal. TRAIL
-
8517303776 Adjustment Suspension Decal. TOURING & EUROPEAdjustment Suspension Decal. TOURING & EUROPE
-
9517302785 ClipClip
-
10517303457 RH Panel Foam, RearRH Panel Foam, Rear
-
11517303348 Windshield. TRAILWindshield. TRAIL
-
11517303440 High Windshield. TOURING & EUROPEHigh Windshield. TOURING & EUROPE
-
12517303439 KnobKnob
-
13250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
14250200025 Washer M5Washer M5
-
15250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
16570023800 Windshield LatchWindshield Latch
-
17517303629 RH MirrorRH Mirror
-
18517303630 LH MirrorLH Mirror
-
19517303390 Headlight MouldingHeadlight Moulding
-
20293150103 Pop RivetPop Rivet
-
21732610072 Push NutPush Nut
-
22517302841 GrommetGrommet
-
23250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
24517303458 Console CapConsole Cap
-
25517303589 RH ConsoleRH Console
-
26732610072 Push NutPush Nut
-
27517303641 Center ConsoleCenter Console
-
28706200474 CapCap
-
29517303664 Hood FoamHood Foam
-
30517303486 RH Hood FoamRH Hood Foam
-
31517302575 Console NutConsole Nut
-
32517303644 RH PanelRH Panel
-
33517303633 LH PanelLH Panel
-
34517302448 Panel LatchPanel Latch
-
35390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
36517302823 Hinge LockHinge Lock
-
37250000068 Hex Tapping Screw #8 X 5/8''Hex Tapping Screw #8 X 5/8''
