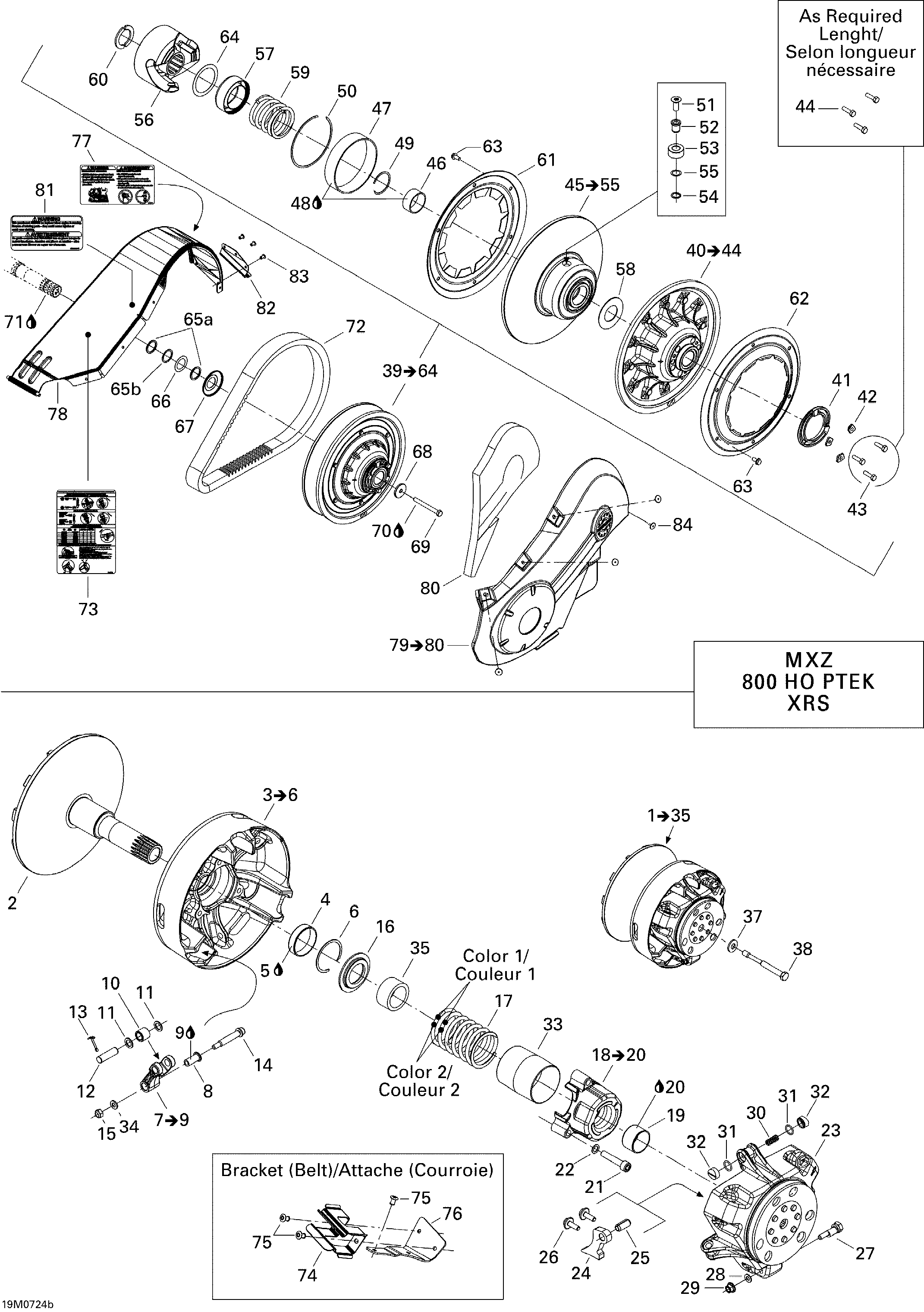

05- Pulley System 800 HO для BRP Ski-Doo MX Z XRS 800 HO PTEK - 2007
-
№АртикулНазвание
-
2417222904 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222171 Sliding Flange Ass'y. Includes 3 to 6Sliding Flange Ass'y. Includes 3 to 6
-
4417222758 BushingBushing
-
5413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
6293370037 CirclipCirclip
-
7417222671 Lever Ass'y. Includes 7 to 9Lever Ass'y. Includes 7 to 9
-
8417222633 BushingBushing
-
9413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
10417222762 RollerRoller
-
11417004302 Stopper WasherStopper Washer
-
12417222594 PinPin
-
13732958001 Cotter PinCotter Pin
-
14417222028 Screw Ass'yScrew Ass'y
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16417222312 Spring SeatSpring Seat
-
17415015400 Spring, Violet/greenSpring, Violet/green
-
18417007500 Spring Cover Ass'y. Includes 18 to 20Spring Cover Ass'y. Includes 18 to 20
-
19417009204 BushingBushing
-
20413703100 Loctite 609, 10 mlLoctite 609, 10 ml
-
21205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
22250200009 Lock Washer 8 mmLock Washer 8 mm
-
23417222213 Governor CupGovernor Cup
-
24417222546 Ramp 414Ramp 414
-
25250400009 Rolled Pin 10 X 22Rolled Pin 10 X 22
-
26250000059 Hex Flanged Scew M6 X 18Hex Flanged Scew M6 X 18
-
27417222955 Calibration ScrewCalibration Screw
-
28417005600 WasherWasher
-
29233061414 Hex Flanged Nut M6Hex Flanged Nut M6
-
30417005700 SpringSpring
-
31732401030 O-RingO-Ring
-
32417222362 Slider ShoeSlider Shoe
-
33417009205 GuardGuard
-
34234061410 Flat Washer 6 mmFlat Washer 6 mm
-
35417222826 BushingBushing
-
37250200006 Washer-spring Conical 14 mmWasher-spring Conical 14 mm
-
38417120000 Drive Pulley BoltDrive Pulley Bolt
-
40417126807 Fixed Flange Ass'y. Includes 40 to 44Fixed Flange Ass'y. Includes 40 to 44
-
41415005800 Adjustment RingAdjustment Ring
-
42415005900 Adjustment ShimAdjustment Shim
-
43207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
44207162244 Hex Screw M6 X 22Hex Screw M6 X 22
-
45417127040 Slidding Flange Ass'y. Includes 45 to 55Slidding Flange Ass'y. Includes 45 to 55
-
46417127042 CoussinetCoussinet
-
47417127043 CoussinetCoussinet
-
48413408300 Loctite, Black Max, 3 mlLoctite, Black Max, 3 ml
-
49371911200 CirclipCirclip
-
50417126878 CirclipCirclip
-
51250000279 Torx Screw M8, Scotch GripTorx Screw M8, Scotch Grip
-
52417127015 StudStud
-
53417126892 RollerRoller
-
54417126823 V-circlipV-circlip
-
55417126797 WasherWasher
-
56417126990 Cam Ass'yCam Ass'y
-
57417126381 GuardGuard
-
58504099600 Stopper WasherStopper Washer
-
59417126688 Spring, GreenSpring, Green
-
60417126734 Half KeyHalf Key
-
61417126698 CoverCover
-
62504151831 Aerodynamic CoverAerodynamic Cover
-
63210251180 Hex. Forming Screw M5 x 11Hex. Forming Screw M5 x 11
-
64417126322 Swivel AbutmentSwivel Abutment
-
65417300252 SpacerSpacer
-
65417300265 SpacerSpacer
-
66504112000 ShimShim
-
67417300238 ProtectorProtector
-
68517302322 Strength WasherStrength Washer
-
69207087544 Hex Screw M8 X 75Hex Screw M8 X 75
-
70293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
71293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
72417300166 Drive BeltDrive Belt
-
73516002616 Decal, Suspension AdjustmentDecal, Suspension Adjustment
-
74517281905 BracketBracket
-
75390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
76417300282 BracketBracket
-
77516002674 Emergency Starting LabelEmergency Starting Label
-
78417300213 Belt GuardBelt Guard
-
79417300301 Side Protector Ass'y. Includes 79 to 80Side Protector Ass'y. Includes 79 to 80
-
80417300246 FoamFoam
-
81516002670 Security Label, Belt GuardSecurity Label, Belt Guard
-
82417300216 Belt Guard BracketBelt Guard Bracket
-
83390909200 Avex RivetAvex Rivet
-
84293150103 Pop RivetPop Rivet
