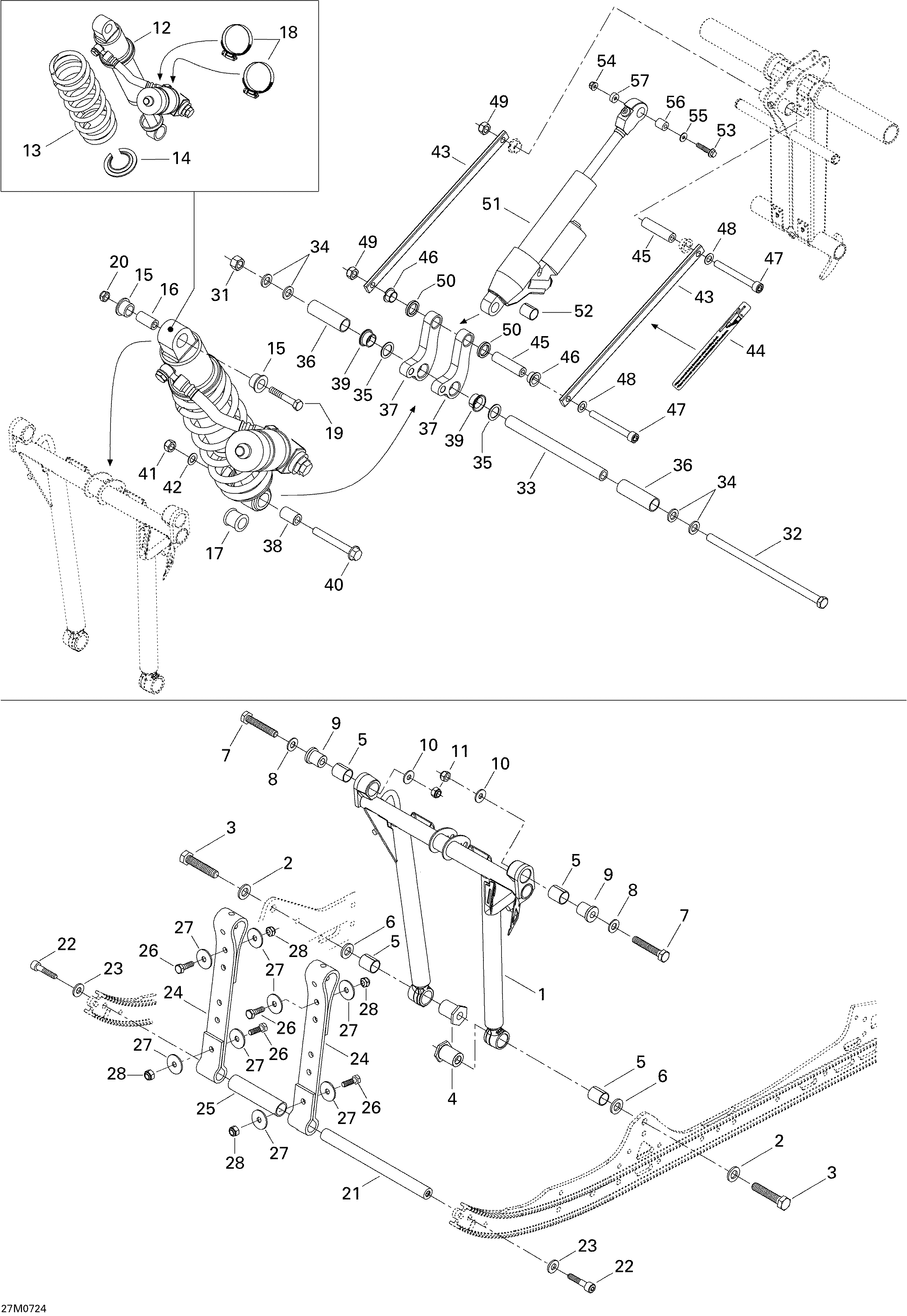

08- Front Arm для BRP Ski-Doo MX Z XRS 800 HO PTEK - 2007
-
№АртикулНазвание
-
1503191536 Front ArmFront Arm
-
2503189148 WasherWasher
-
3250000225 Hex Screw M12 X 35, Scotch GripHex Screw M12 X 35, Scotch Grip
-
4503190727 Inferior AxleInferior Axle
-
5503190974 BushingBushing
-
6503190656 WasherWasher
-
7207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
8732900049 WasherWasher
-
9503190698 AxleAxle
-
10506151251 WasherWasher
-
11233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
12503191295 Central ShockCentral Shock
-
13503191459 SpringSpring
-
14503190271 Spring StopperSpring Stopper
-
15503189117 CushionCushion
-
16503189282 BushingBushing
-
17503189271 CushionCushion
-
18293650035 Tridon ClampTridon Clamp
-
19207005044 Hex Screw M10 X 50Hex Screw M10 X 50
-
20232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
21503189562 AxleAxle
-
22205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
23503189564 WasherWasher
-
24503190782 Stopper StrapStopper Strap
-
25503189265 SpacerSpacer
-
26207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
27224081301 Flat WasherFlat Washer
-
28233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
31232021416 Hex Nut M12Hex Nut M12
-
32250000229 Hex Screw M12 X 252Hex Screw M12 X 252
-
33503191047 Pivot ShaftPivot Shaft
-
34503189148 WasherWasher
-
35503190697 WasherWasher
-
36503190600 SpacerSpacer
-
37503190601 Rocker ArmRocker Arm
-
38503190604 Central Shock AxleCentral Shock Axle
-
39503190605 Central Rocker Axle CushionCentral Rocker Axle Cushion
-
40207607544 Hex. Flanged Screw M10 X 75Hex. Flanged Screw M10 X 75
-
41232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
42503175800 WasherWasher
-
43503190644 Tie RodTie Rod
-
44516001790 DecalDecal
-
45503191192 Bar AxleBar Axle
-
46506150200 Bushing SwivelBushing Swivel
-
47205009044 Socket Screw M10 X 90Socket Screw M10 X 90
-
48503175800 WasherWasher
-
49232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
50503190694 Plastic SpacerPlastic Spacer
-
51503191296 Rear ShockRear Shock
-
52503190706 BushingBushing
-
53207085586 Hex Screw M8 X 55Hex Screw M8 X 55
-
54233281416 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
55503189157 WasherWasher
-
56414936000 CushionCushion
-
57503190526 SpacerSpacer
