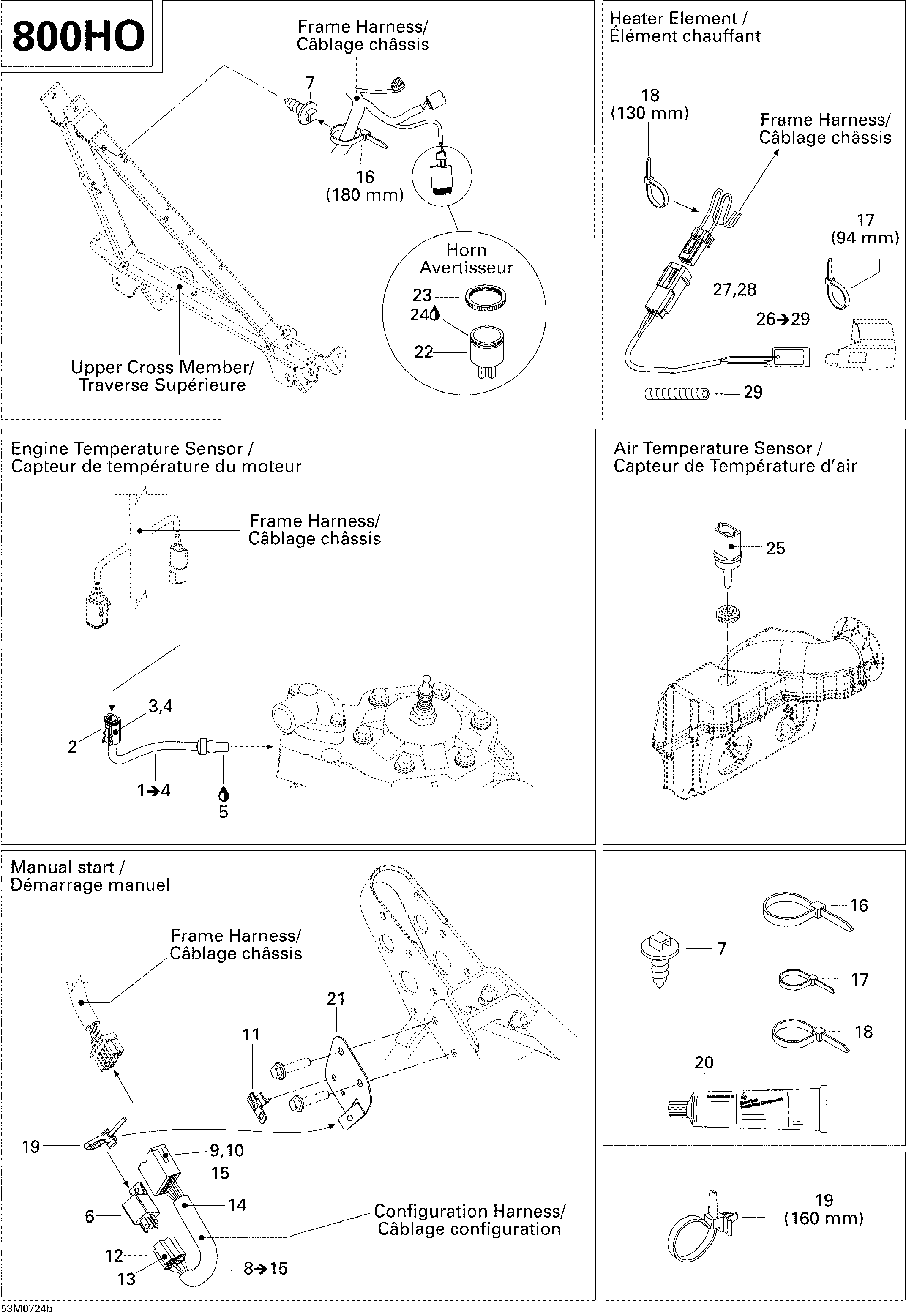

10- Electrical Accessories 2, 800HO для BRP Ski-Doo MX Z XRS 800 HO PTEK - 2007
-
№АртикулНазвание
-
1515176043 Temperature Sensor. Includes 1 to 4Temperature Sensor. Includes 1 to 4
-
2278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
5293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
6410113200 RelayRelay
-
7293730018 Mount DartMount Dart
-
8515176175 Configuration Harness. Includes 8 to 15Configuration Harness. Includes 8 to 15
-
9515175232 Male TerminalMale Terminal
-
10515175273 Male TerminalMale Terminal
-
11515175283 Housing SupportHousing Support
-
12409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
13561503100 Female TerminalFemale Terminal
-
14409901800 Tubing 13 mmTubing 13 mm
-
15515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
16414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
17293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
18293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
19293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
20293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
21515176020 Harness SupportHarness Support
-
22515176035 HornHorn
-
23414805101 Plastic NutPlastic Nut
-
24296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
25270600000 Air Temperature SensorAir Temperature Sensor
-
26515176473 Heater Element Ass'y. Includes 26 to 29Heater Element Ass'y. Includes 26 to 29
-
27515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
28515175232 Male TerminalMale Terminal
-
29515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
