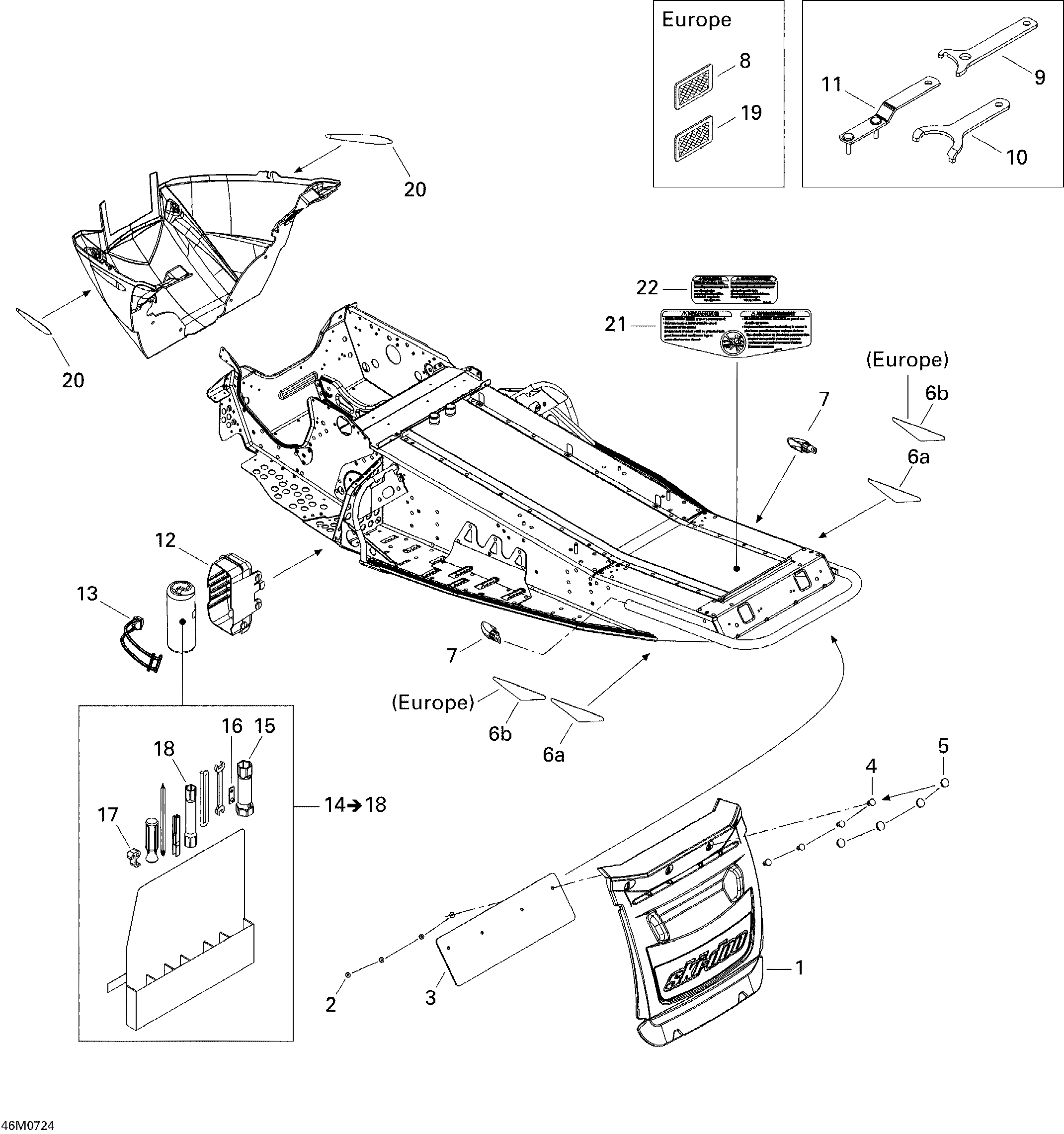

09- Utilities для BRP Ski-Doo MX Z XRS 800 HO PTEK - 2007
-
№АртикулНазвание
-
1520000449 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6a520000237 Rear Reflector, RedRear Reflector, Red
-
6b520000311 Rear Reflector, Amber. EuropeRear Reflector, Amber. Europe
-
7520000272 CapCap
-
8520000271 Reflector Amber, Europe. EuropeReflector Amber, Europe. Europe
-
9529032900 Adjustment WrenchAdjustment Wrench
-
10529035582 Adjustment WrenchAdjustment Wrench
-
11520000126 Adjustment WrenchAdjustment Wrench
-
12520000322 TrunkTrunk
-
13520000528 LatchLatch
-
14529000025 Tool Kit. Includes 14 to 18Tool Kit. Includes 14 to 18
-
15529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
16529024400 Rope AdaptorRope Adaptor
-
17529019400 Starter GripStarter Grip
-
18295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
19415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
20516001336 Front ReflectorFront Reflector
-
21516003034 Warning Label, Track SecurityWarning Label, Track Security
-
22516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
