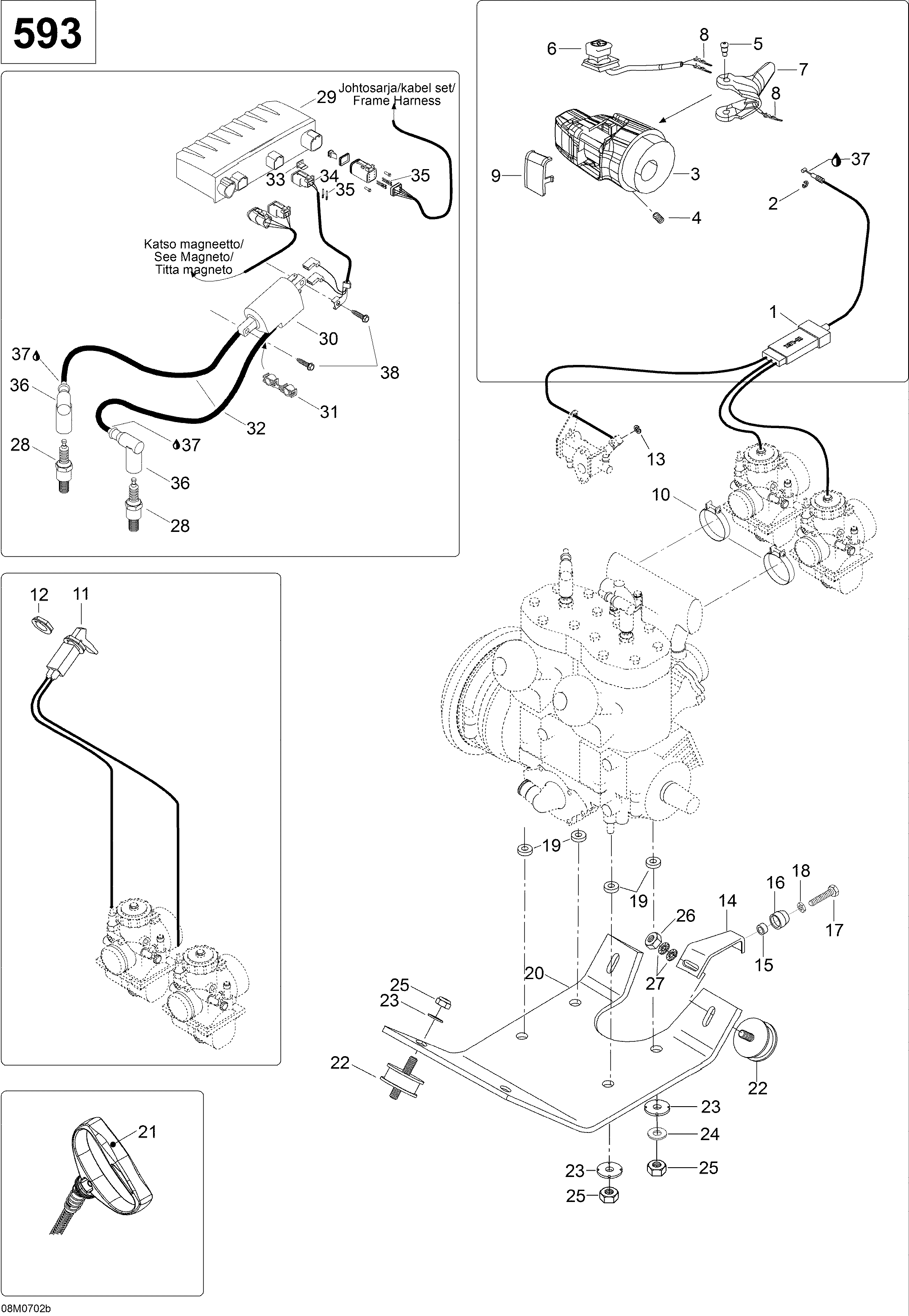

01- Engine And Engine Support 600 для BRP Ski-Doo Skandic WT 600 - 2007
-
№АртикулНазвание
-
1M5246328 Throttle CableThrottle Cable
-
2M31038 CirclipCirclip
-
3512059243 Throttle HousingThrottle Housing
-
4414440800 Set Screw M8 X 10Set Screw M8 X 10
-
5732601143 Flanged ScrewFlanged Screw
-
6515175410 Kill SwitchKill Switch
-
7512059348 Handle Ass'yHandle Ass'y
-
8M42603 Male TerminalMale Terminal
-
9572100901 Switch CoverSwitch Cover
-
10414532700 CollarCollar
-
11M535482 Choke Cable. Includes 11 to 12Choke Cable. Includes 11 to 12
-
12512059364 Nut-plasticNut-plastic
-
13M31035 CirclipCirclip
-
14M539902 SupportSupport
-
15M2846014 Rubber WasherRubber Washer
-
16605449240 SleeveSleeve
-
17M40121 Hex Screw M8 X 25Hex Screw M8 X 25
-
18M33003 NutNut
-
19M5446347 SleeveSleeve
-
20M5346175 Engine SupportEngine Support
-
21572084400 Starter GripStarter Grip
-
22570128700 Rubber MountRubber Mount
-
23512056700 Lock WasherLock Washer
-
24M20105 WasherWasher
-
25233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
26232006414 Hex Nut M10Hex Nut M10
-
27M20068 Lock WasherLock Washer
-
28512059552 Spark Plug, NGK Br9ecs, 0.5 mmSpark Plug, NGK Br9ecs, 0.5 mm
-
29605350037 Calibration ModuleCalibration Module
-
30410922935 Ignition CoilIgnition Coil
-
31410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
32278001268 Spark Plug WireSpark Plug Wire
-
33M42609 Male Wedge 2 WaysMale Wedge 2 Ways
-
34409207300 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
35278000632 Female TerminalFemale Terminal
-
36278000237 Spark Plug CapSpark Plug Cap
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38M40377 ScrewScrew
