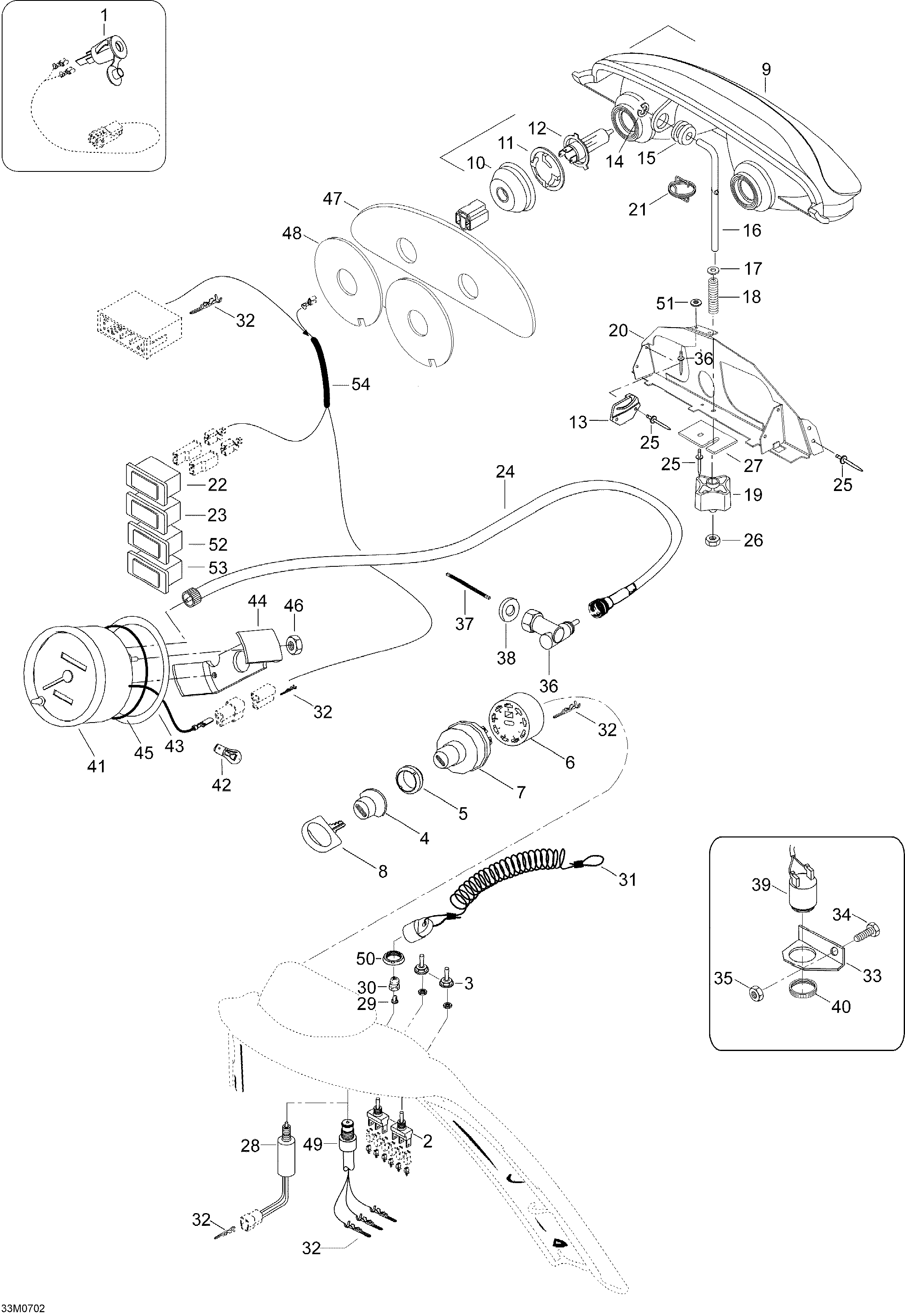

10- Electrical System WT 600 для BRP Ski-Doo Skandic WT 600 - 2007
-
№АртикулНазвание
-
1M42026 Current OutletCurrent Outlet
-
2410107300 Switch (Heating Grip)Switch (Heating Grip)
-
3515175281 Switch CoverSwitch Cover
-
4570013700 Switch BootSwitch Boot
-
5410112100 Face NutFace Nut
-
6572150700 Female Terminal Housing, 9 CircuitsFemale Terminal Housing, 9 Circuits
-
7410113602 Ignition SwitchIgnition Switch
-
8414991700 Blank KeyBlank Key
-
9515176311 Halogen Headlamp Ass'y. Includes 9 to 12Halogen Headlamp Ass'y. Includes 9 to 12
-
12515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
11515175910 Bulb HolderBulb Holder
-
10515175911 CoverCover
-
13517289300 RH SupportRH Support
-
13517289400 LH SupportLH Support
-
14732610072 Push NutPush Nut
-
15415100800 GrommetGrommet
-
16M5448100 Adjuster RodAdjuster Rod
-
18415100600 SpringSpring
-
19515175548 HandleHandle
-
20M5248092 SupportSupport
-
21M5445737 SpringSpring
-
22515175726 Pilot Lamp, HeadlampPilot Lamp, Headlamp
-
23515175728 Pilot Lamp, Oil Level/BrakePilot Lamp, Oil Level/Brake
-
24M5344162 Speedometer CableSpeedometer Cable
-
25M36005 RivetRivet
-
26232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
27M5448320 Washer 6mmWasher 6mm
-
31515166900 Dess CapDess Cap
-
32M42603 Male TerminalMale Terminal
-
33M549459 SupportSupport
-
34207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
35M33200 Nut M6Nut M6
-
36M35021 Drive AngleDrive Angle
-
37M45009 Square Pin-SpeedometerSquare Pin-Speedometer
-
38M5444186 WasherWasher
-
39414792102 Back-Up AlarmBack-Up Alarm
-
40414805101 Plastic NutPlastic Nut
-
41605152889 Speedometer Kmh/mphSpeedometer Kmh/mph
-
42410504200 Instrumentation BulbInstrumentation Bulb
-
43517258500 WasherWasher
-
44414806500 Case HolderCase Holder
-
45414807100 O-RingO-Ring
-
46M33062 Nut M5Nut M5
-
47M5247817 FoamFoam
-
48M5447818 Plastic PlatePlastic Plate
-
49515175797 Dess SwitchDess Switch
-
50278000508 Safety Switch NutSafety Switch Nut
-
51M20008 Washer 5 mmWasher 5 mm
-
52410109700 Pilot Lamp, Engine TemperaturePilot Lamp, Engine Temperature
-
53605450484 Pilot Lamp D.e.s.s.Pilot Lamp D.e.s.s.
-
54M5247805 Harness Ass'yHarness Ass'y
