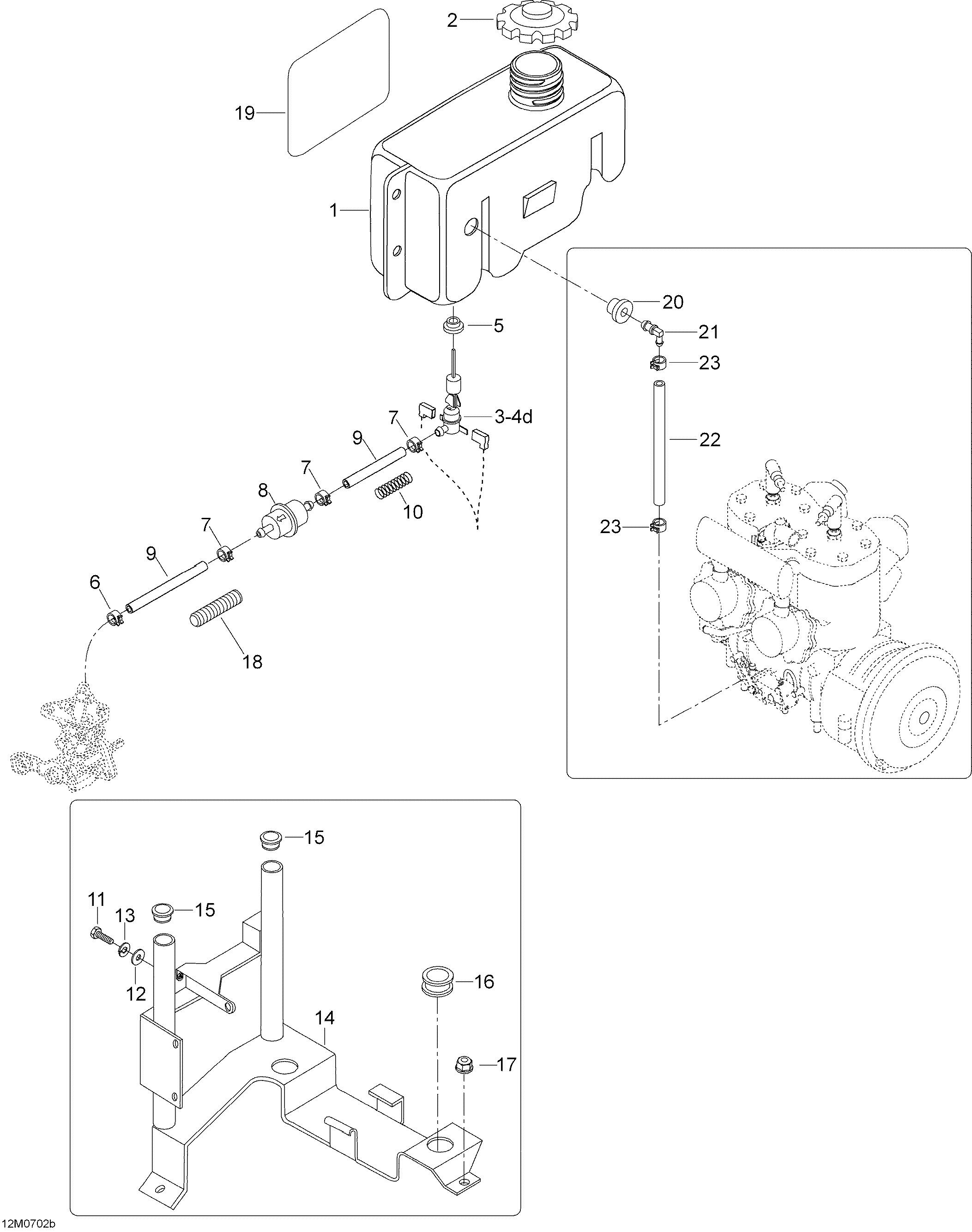

02- Oil System 600 для BRP Ski-Doo Skandic WT 600 - 2007
-
№АртикулНазвание
-
1M5146370 Oil TankOil Tank
-
2519000044 CapCap
-
3605452095 Oil Sensor. Includes 3 to 4dOil Sensor. Includes 3 to 4d
-
4a515176327 Oil Level Sensor. Not ShownOil Level Sensor. Not Shown
-
4b409209500 Female Housing, 2 Circuits. Not ShownFemale Housing, 2 Circuits. Not Shown
-
4c278001014 Female Terminal. Not ShownFemale Terminal. Not Shown
-
4d278001013 Wire Seal. Not ShownWire Seal. Not Shown
-
5570023000 Insulating RingInsulating Ring
-
6414420700 Spring ClipSpring Clip
-
7414415200 Universal Spring ClampUniversal Spring Clamp
-
8414536500 FilterFilter
-
9415080700 LineLine
-
10M25005 SpringSpring
-
11M40322 ScrewScrew
-
12M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
13234161471 Lock Washer M6, BlackLock Washer M6, Black
-
14M5246593 Oil Tank SupportOil Tank Support
-
15M28136 PlugPlug
-
16M5446766 GrommetGrommet
-
17M33200 Nut M6Nut M6
-
18M28015 HousingHousing
-
19M5443578 Reflecting SheetReflecting Sheet
-
20570135100 GrommetGrommet
-
21414580700 Elbow Male ConnectorElbow Male Connector
-
22M39004 HoseHose
-
23414554800 Spring ClampSpring Clamp
