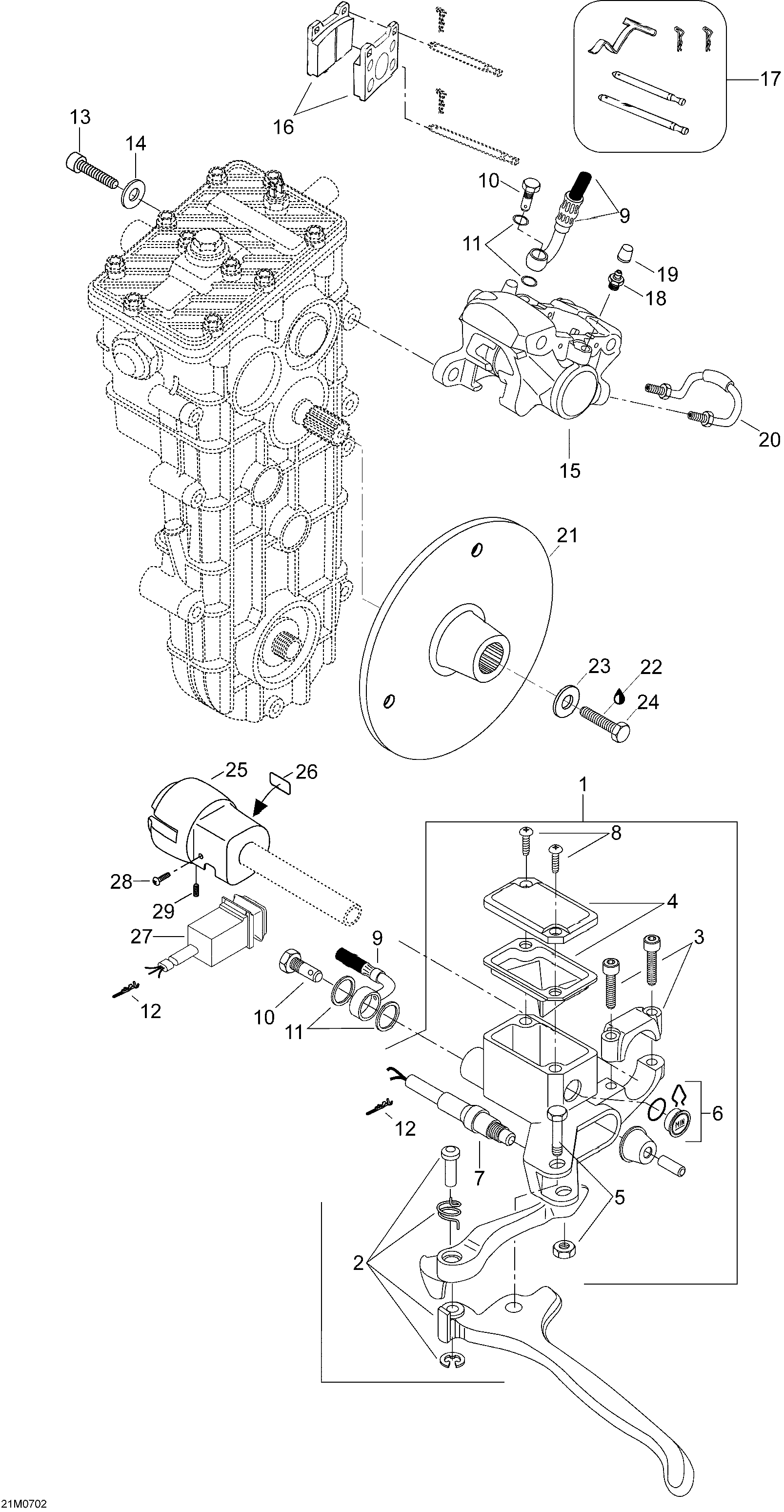

06- Brakes для BRP Ski-Doo Skandic WT 600 - 2007
-
№АртикулНазвание
-
1605352693 Master Cylinder. Includes 1 to 8Master Cylinder. Includes 1 to 8
-
2507032423 Brake Lever Ass'yBrake Lever Ass'y
-
5415030000 Pin Ass'yPin Ass'y
-
7507032366 MicroswitchMicroswitch
-
8216141260 Screw M4 X 12Screw M4 X 12
-
9507032219 HoseHose
-
10414920500 Banjo BoltBanjo Bolt
-
11414920600 Washer For Hose ConnectionWasher For Hose Connection
-
12M42603 Male TerminalMale Terminal
-
13M40277 Socket Head Screw M10 X 65Socket Head Screw M10 X 65
-
14M20068 Lock WasherLock Washer
-
15507032412 Caliper. Includes 15 to 20Caliper. Includes 15 to 20
-
16415084600 Brake Pad KitBrake Pad Kit
-
17414990700 Kit, pins, Retainers, SpringKit, pins, Retainers, Spring
-
18414989800 Bleeder ScrewBleeder Screw
-
20414989900 Rigid TubingRigid Tubing
-
21605354606 Brake DiskBrake Disk
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23M546336 WasherWasher
-
24M40336 Screw M8 X 20Screw M8 X 20
-
25515175696 Brake HousingBrake Housing
-
26415025500 Switch DecalSwitch Decal
-
27515175814 Light SwitchLight Switch
-
28250000022 Phillips ScrewPhillips Screw
-
29414440800 Set Screw M8 X 10Set Screw M8 X 10
