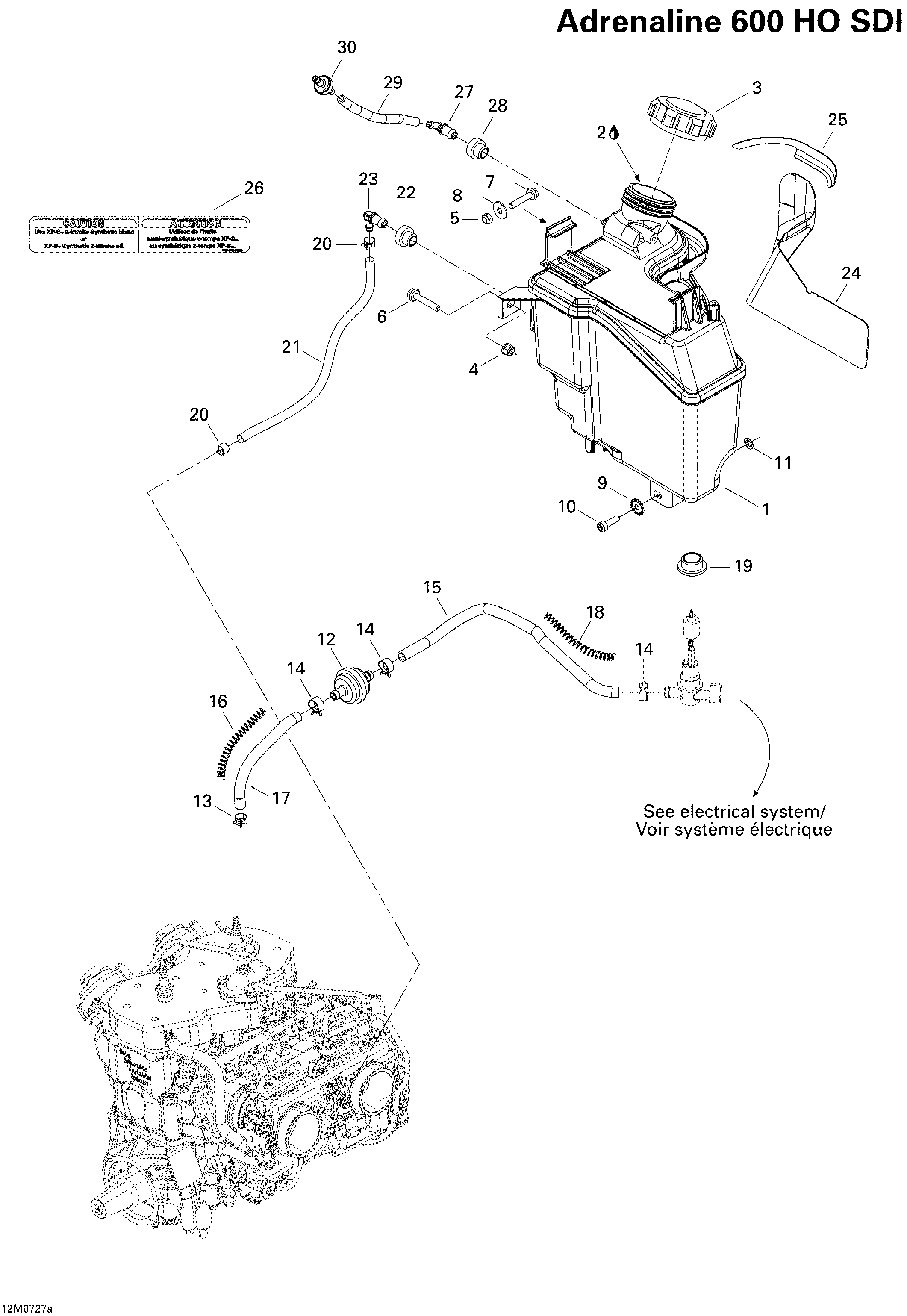

02- Oil System 600 HO SDI для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2007
-
№АртикулНазвание
-
1519000111 Oil TankOil Tank
-
2293600071 Semi-synthetic Oil, 12 X 1 LiterSemi-synthetic Oil, 12 X 1 Liter
-
3519000033 CapCap
-
4233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
5232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
6207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
7207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
8391302000 Flat WasherFlat Washer
-
9250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
10250000081 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
11732610072 Push NutPush Nut
-
12414536500 FilterFilter
-
13414420700 Spring ClipSpring Clip
-
14414415200 Universal Spring ClampUniversal Spring Clamp
-
15513033263 HoseHose
-
16519000064 SpringSpring
-
17415080700 LineLine
-
18519000065 SpringSpring
-
19570023000 Insulating RingInsulating Ring
-
20414554800 Spring ClampSpring Clamp
-
21415080200 Polyurethane HosePolyurethane Hose
-
22513032908 GrommetGrommet
-
23414580700 Elbow Male ConnectorElbow Male Connector
-
24519000054 Reflective SheetReflective Sheet
-
25519000072 Reflective SheetReflective Sheet
-
26516002325 Warning Decal, OilWarning Decal, Oil
-
27414580700 Elbow Male ConnectorElbow Male Connector
-
28513032908 GrommetGrommet
-
29415080200 Polyurethane HosePolyurethane Hose
-
30275500398 Check ValveCheck Valve
