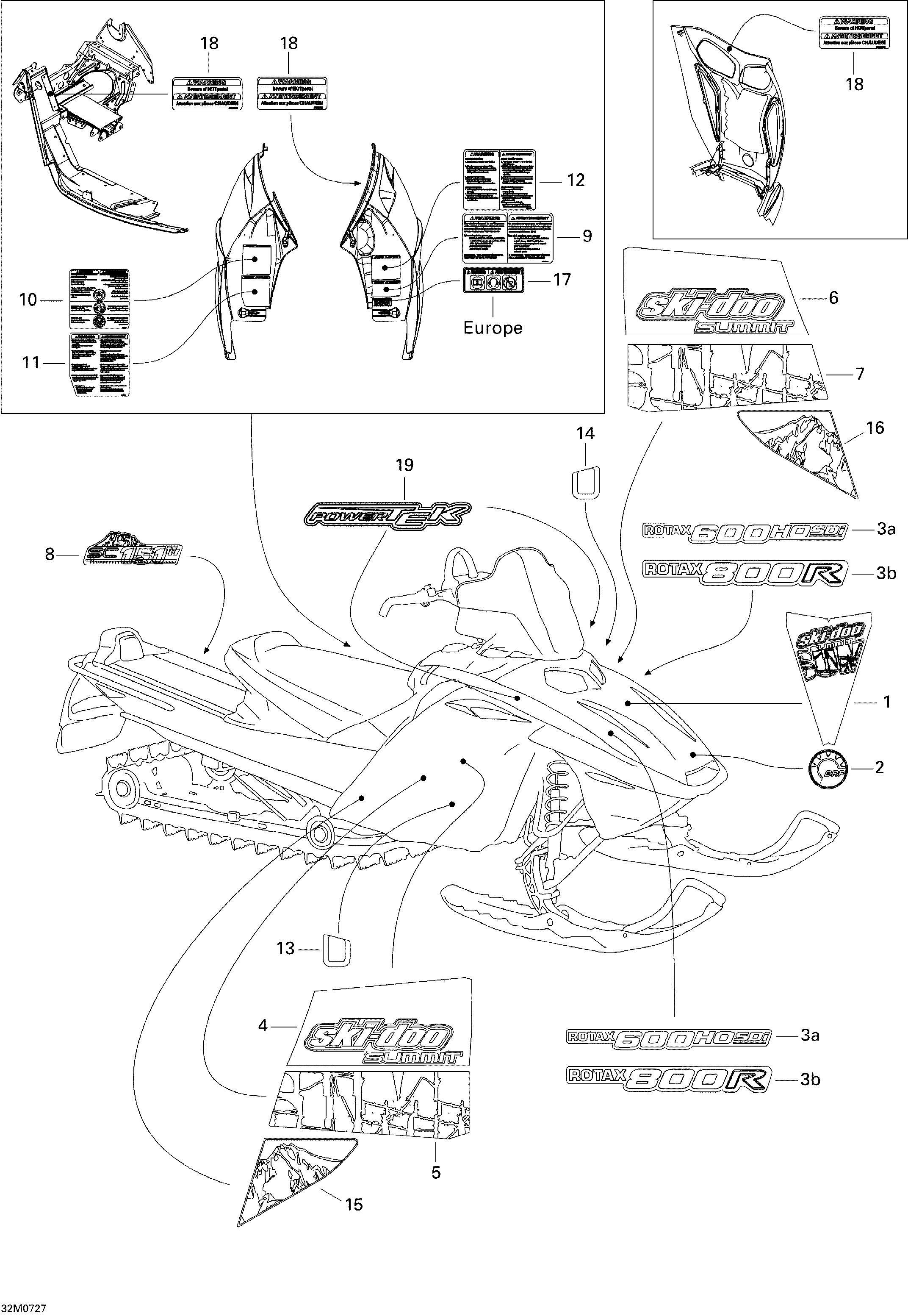

09- Decals 600HO SDI для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2007
-
№АртикулНазвание
-
1516003099 Hood Decal. Grey-BlackHood Decal. Grey-Black
-
1516003100 Hood Decal. Blue-BlackHood Decal. Blue-Black
-
2219902468 Logo BRPLogo BRP
-
3a516002759 Rotax 600HOSDI Decal. 600 H.O. SDIRotax 600HOSDI Decal. 600 H.O. SDI
-
4516003102 RH Side Decal. Grey-BlackRH Side Decal. Grey-Black
-
4516003104 RH Side Decal. Blue-BlackRH Side Decal. Blue-Black
-
5516003106 RH Lower Side Decal. Grey-BlackRH Lower Side Decal. Grey-Black
-
5516003108 RH Lower Side Decal. Blue-BlackRH Lower Side Decal. Blue-Black
-
6516003101 LH Side Decal. Grey-BlackLH Side Decal. Grey-Black
-
6516003103 LH Side Decal. Blue-BlackLH Side Decal. Blue-Black
-
7516003105 LH Lower Side Decal. Grey-BlackLH Lower Side Decal. Grey-Black
-
7516003107 LH Lower Side Decal. Blue-BlackLH Lower Side Decal. Blue-Black
-
8516002554 Forming Frame Decal 151''. Track 151''Forming Frame Decal 151''. Track 151''
-
9516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
10516002908 Security Label, GeneralSecurity Label, General
-
11516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
12516003024 Security Label, StartingSecurity Label, Starting
-
13516001910 RH Protector DecalRH Protector Decal
-
14516001911 LH Protector DecalLH Protector Decal
-
15516003110 RH Rear Lower DecalRH Rear Lower Decal
-
16516003109 LH Rear Lower DecalLH Rear Lower Decal
-
17516003027 Europe Pictogram Decal. EuropeEurope Pictogram Decal. Europe
-
18516002965 Security Label, Hot PartsSecurity Label, Hot Parts
