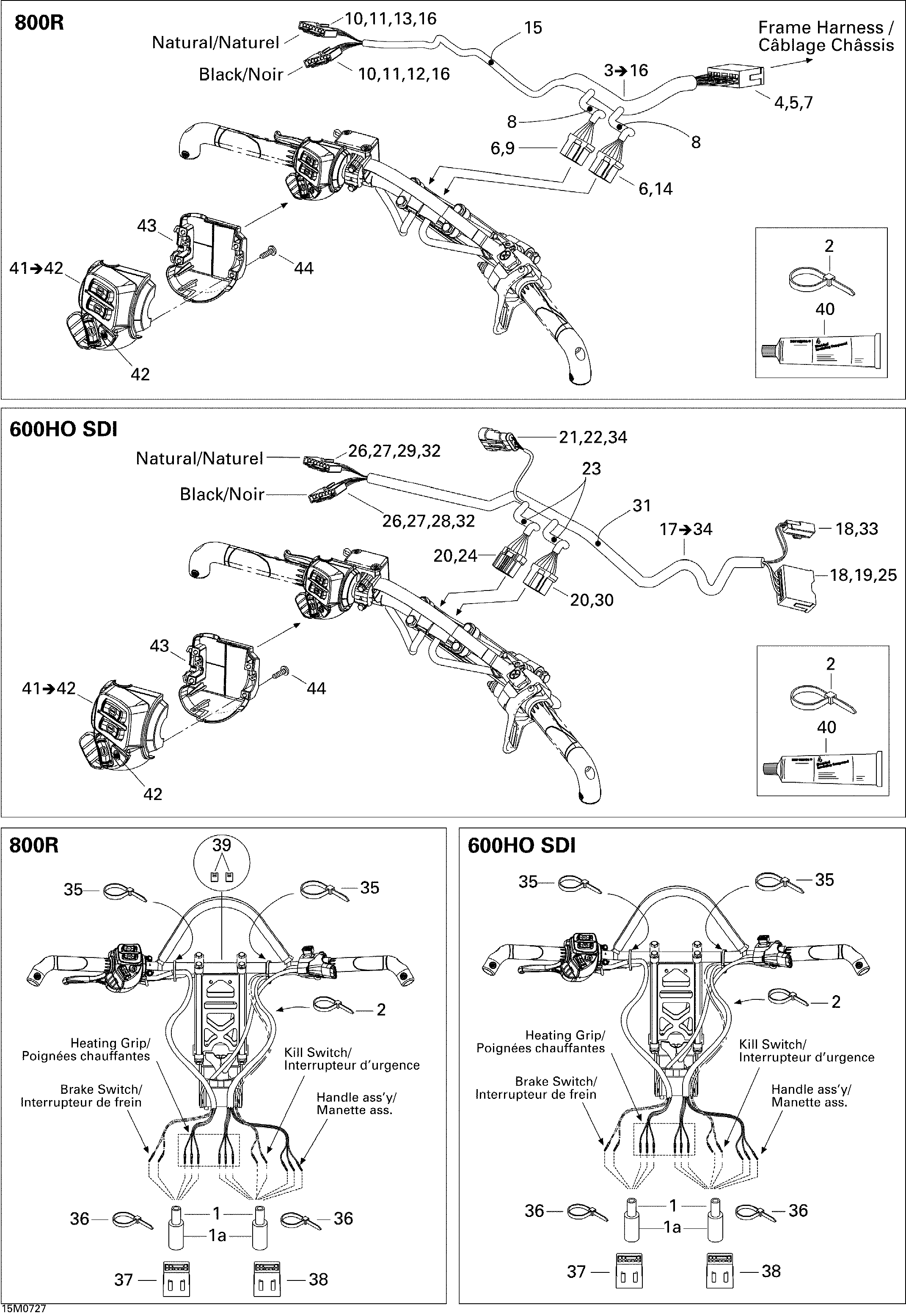

10- Steering Wiring Harness 600HO SDI для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2007
-
№АртикулНазвание
-
1409902000 Low Temperature Tubing 3/8''Low Temperature Tubing 3/8''
-
1a515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4515175232 Male TerminalMale Terminal
-
5515175273 Male TerminalMale Terminal
-
6515175231 Female TerminalFemale Terminal
-
7515175352 Male Terminal Housing, 13 CircuitsMale Terminal Housing, 13 Circuits
-
8415079900 Tubing 10 mmTubing 10 mm
-
9515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
10515175808 Female TerminalFemale Terminal
-
11515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
12515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
13515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
14515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
15515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
16515175941 Female TerminalFemale Terminal
-
17515176207 Steering Wiring Harness. 600HO SDI, Includes 17 to 34Steering Wiring Harness. 600HO SDI, Includes 17 to 34
-
18515175232 Male TerminalMale Terminal
-
19515175273 Male TerminalMale Terminal
-
20515175231 Female TerminalFemale Terminal
-
21710000568 HousingHousing
-
22278001013 Wire SealWire Seal
-
23415079900 Tubing 10 mmTubing 10 mm
-
24515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
25515175720 Male Terminal Housing, 11 CircuitsMale Terminal Housing, 11 Circuits
-
26515175808 Female TerminalFemale Terminal
-
27515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
28515175807 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
29515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
30515175819 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
31515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
32515175941 Female TerminalFemale Terminal
-
33710000667 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
34515176164 Male TerminalMale Terminal
-
35414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
37515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
38515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
40293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
41515176015 LH Switch Housing. 600HO SDI, Includes 41 to 42LH Switch Housing. 600HO SDI, Includes 41 to 42
-
42515176088 Start/RER ButtonStart/RER Button
-
43515175926 Housing Switch PlateHousing Switch Plate
-
44250000263 Torx Screw #8-18Torx Screw #8-18
