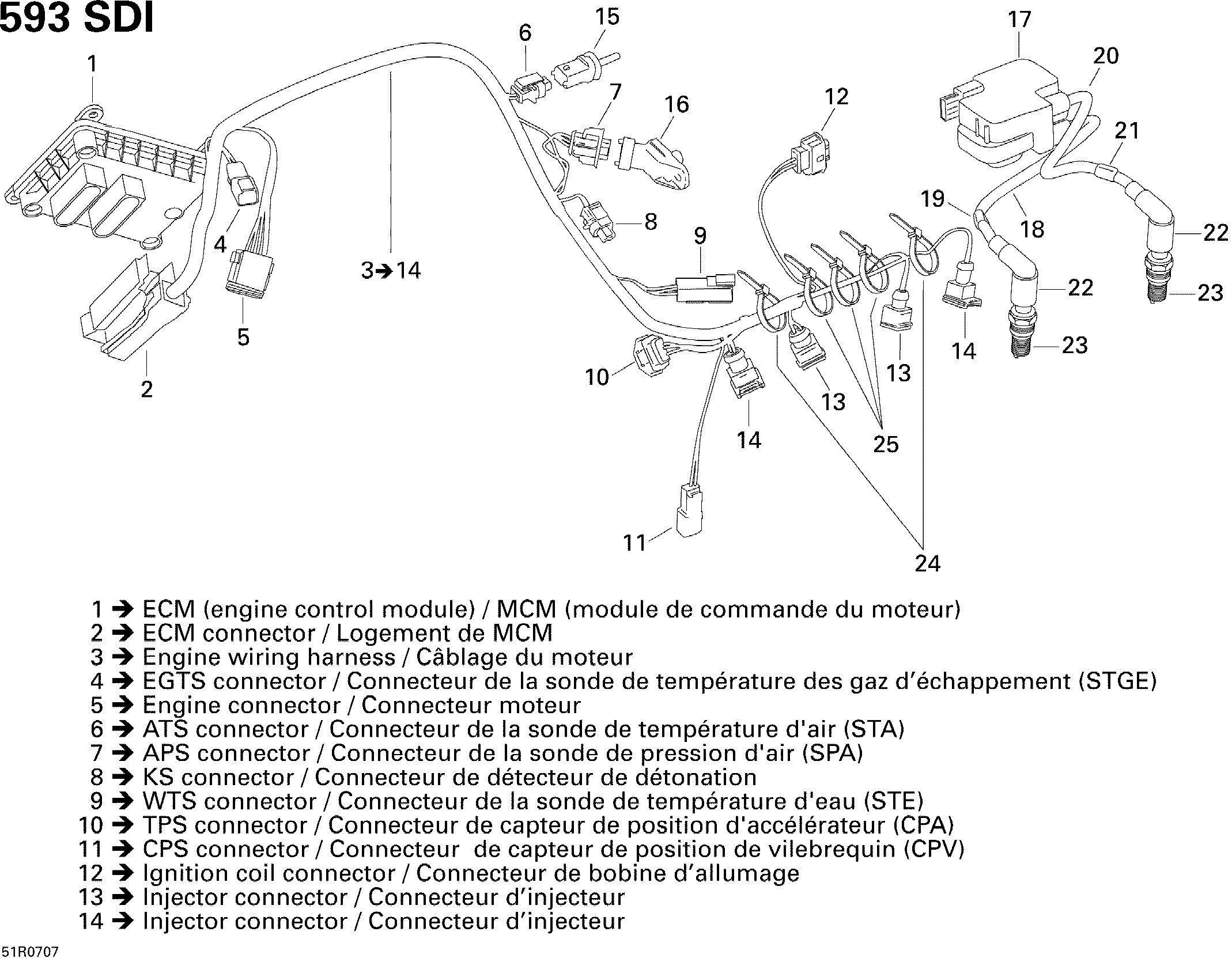

10- Engine Harness And Electronic Module, Summit ADR, CU для BRP Ski-Doo Summit Adrenaline 600HO SDI - 2007
-
№АртикулНазвание
-
1420665194 Electronic Box, EcmElectronic Box, Ecm
-
2420664450 ECM ConnectorECM Connector
-
3420664317 Wiring Harness Ass'y. Includes 3 to 14Wiring Harness Ass'y. Includes 3 to 14
-
4278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
5278001743 Male Housing, 8 CircuitsMale Housing, 8 Circuits
-
6278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
7278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
8278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
9278000635 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
10278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
11409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13415128566 Male Housing, 2 Circuits, AmpMale Housing, 2 Circuits, Amp
-
14415128565 Male Housing, 2 Circuits, BoschMale Housing, 2 Circuits, Bosch
-
15420966970 Temperature SensorTemperature Sensor
-
16420274055 Pressure SensorPressure Sensor
-
17420266070 Ignition CoilIgnition Coil
-
18420664300 Spark Plug Cable, Front, 365 mmSpark Plug Cable, Front, 365 mm
-
19420660632 Sleeve, Mag SideSleeve, Mag Side
-
20420664307 Ignition Cable, 430 mm, PTOIgnition Cable, 430 mm, PTO
-
21420660630 Sleeve, PTO SideSleeve, PTO Side
-
22278000237 Spark Plug CapSpark Plug Cap
-
24420866714 Tie RapTie Rap
-
25420866716 Tie-RapTie-Rap
