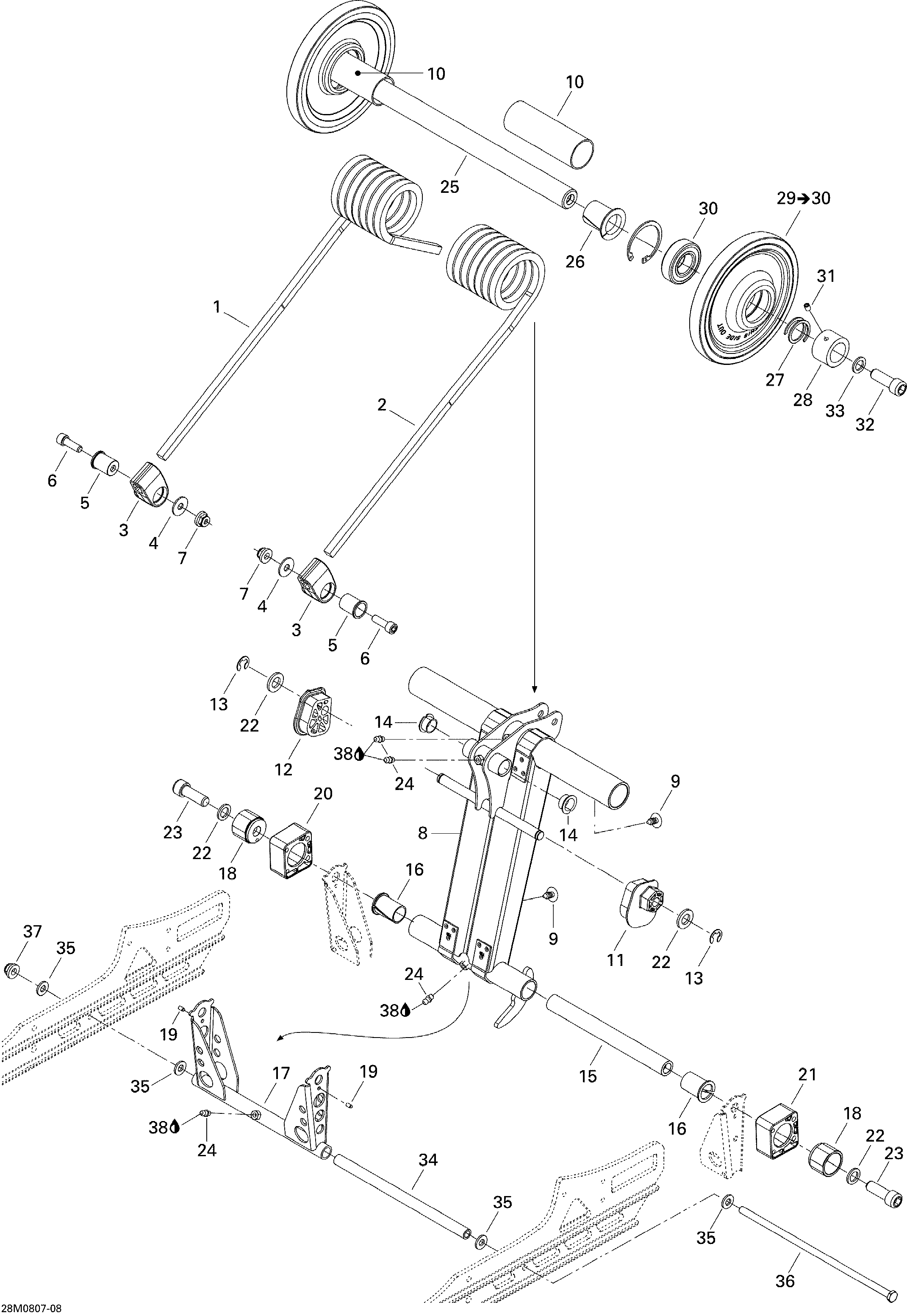

08- Rear Arm для BRP Ski-Doo GTX LTD 600 HO SDI - 2008
-
№АртикулНазвание
-
1503191240 Spring PaintSpring Paint
-
2503191242 LH Spring PaintLH Spring Paint
-
3503191539 Spring SupportSpring Support
-
4234082410 Flat Washer 8 mmFlat Washer 8 mm
-
5503190754 Retainer CushionRetainer Cushion
-
6205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8503191119 Rear ArmRear Arm
-
9414644300 DartDart
-
10503191041 Plastic BushingPlastic Bushing
-
11503191565 LH Cam AdjusterLH Cam Adjuster
-
12503191566 RH Cam AdjusterRH Cam Adjuster
-
13293370013 E-CirclipE-Circlip
-
14503191555 Swivel BushingSwivel Bushing
-
15503190687 Lower ShaftLower Shaft
-
16503191640 CushionCushion
-
17503191091 Pivot ArmPivot Arm
-
18503189488 Block GuideBlock Guide
-
19250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
20503191562 RH Block, 4 PositionsRH Block, 4 Positions
-
21503191563 LH Block, 4 PositionsLH Block, 4 Positions
-
22503189148 WasherWasher
-
23205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
24408200700 Grease FittingGrease Fitting
-
25503191841 Upper ShaftUpper Shaft
-
26503190619 CushionCushion
-
27503189146 Axle SpringAxle Spring
-
28503190570 Retainer RingRetainer Ring
-
29503190803 Wheel 165. Includes 29 to 30Wheel 165. Includes 29 to 30
-
30503190795 Ball BearingBall Bearing
-
31206260844 Socket Set Screw M6 X 8Socket Set Screw M6 X 8
-
32205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
33503189276 WasherWasher
-
34503189156 Pivot Arm AxlePivot Arm Axle
-
35503189157 WasherWasher
-
36732601198 Long Bolt M8Long Bolt M8
-
37233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
38219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
