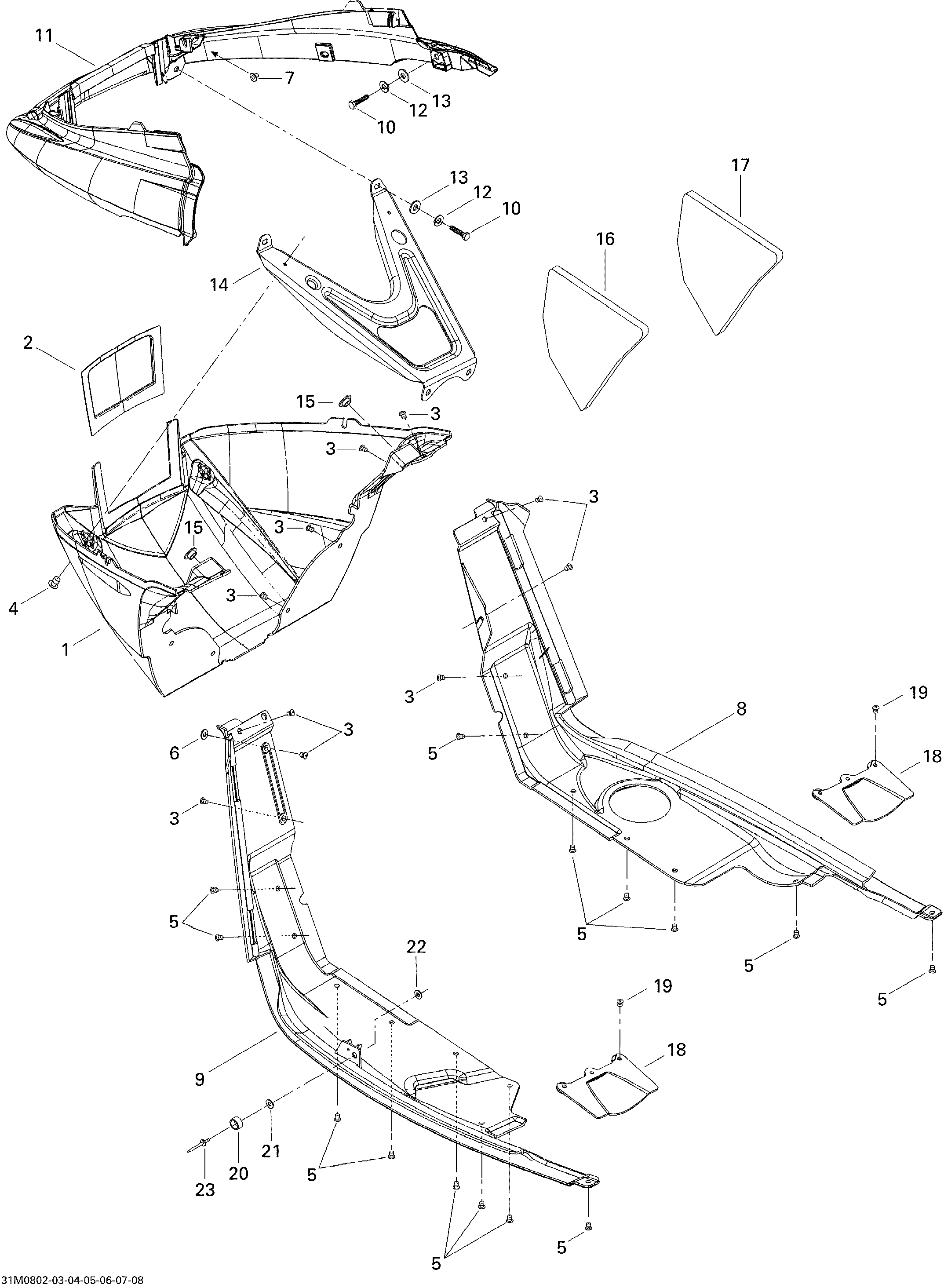

09- Bottom Pan LTD для BRP Ski-Doo GTX LTD 600 HO SDI - 2008
-
№АртикулНазвание
-
1502006681 Front Bottom Pan, BlackFront Bottom Pan, Black
-
2502006687 Bottom Pan GrillBottom Pan Grill
-
3293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
5293150103 Pop RivetPop Rivet
-
6517124300 WasherWasher
-
7293100003 Nut M6Nut M6
-
8502006702 RH Bottom PanRH Bottom Pan
-
9502006703 LH Bottom PanLH Bottom Pan
-
10207161444 Hex. Screw M6 X 14Hex. Screw M6 X 14
-
11502006679 Bumper, Black. LTD & Sport Black-BlackBumper, Black. LTD & Sport Black-Black
-
12234161471 Lock Washer M6, BlackLock Washer M6, Black
-
13224061121 Flat WasherFlat Washer
-
14502006772 SupportSupport
-
15414916600 Nylon CapNylon Cap
-
16502006722 LH FoamLH Foam
-
17502006721 RH FoamRH Foam
-
20415018100 Rubber StopperRubber Stopper
-
21250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
22293150007 WasherWasher
-
23390401600 Pop Rivet 1/8''Pop Rivet 1/8''
