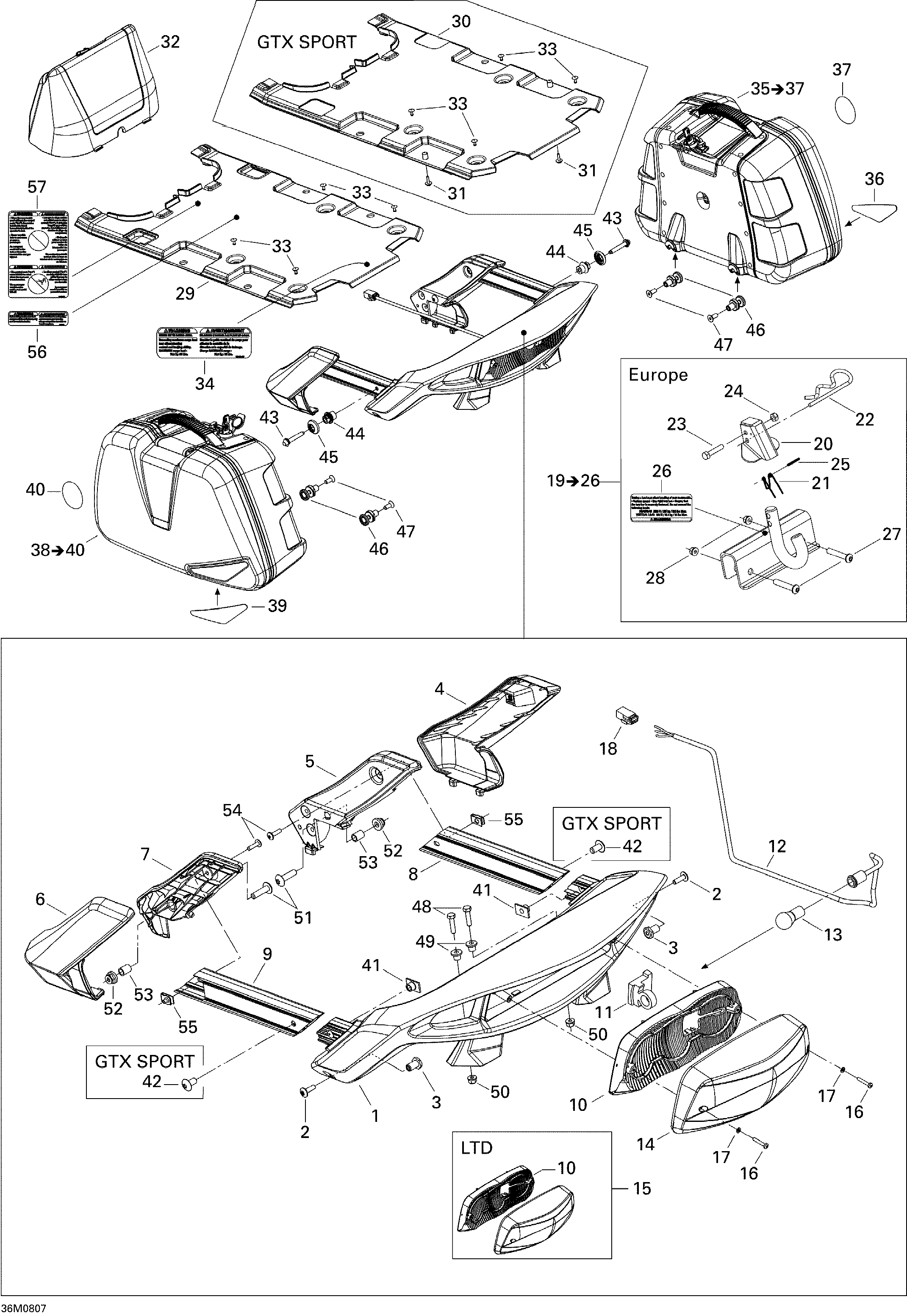

09- Luggage Rack LTD для BRP Ski-Doo GTX LTD 600 HO SDI - 2008
-
№АртикулНазвание
-
1511000317 RackRack
-
2250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
3511000398 InsertInsert
-
4511000322 RH Outside ArmRH Outside Arm
-
5511000326 RH Inside ArmRH Inside Arm
-
6511000323 LH Outside ArmLH Outside Arm
-
7511000327 LH Inside ArmLH Inside Arm
-
8511000321 RH Side BarRH Side Bar
-
9511000345 LH Side BarLH Side Bar
-
10510004442 ReflectorReflector
-
11511000431 Bulb SupportBulb Support
-
12511000466 Bulb SocketBulb Socket
-
13410504100 Tail Light BulbTail Light Bulb
-
15861509300 Lens And Reflector Kit. LTDLens And Reflector Kit. LTD
-
16209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
17414516400 WasherWasher
-
18515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
19511000509 Hitch Ass'y. EUROPE, Includes 19 to 26Hitch Ass'y. EUROPE, Includes 19 to 26
-
20511000514 PawlPawl
-
21517152800 SpringSpring
-
22114045200 Hair PinHair Pin
-
23207063544 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
24232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
25732804000 Spring Pin M3 X 24Spring Pin M3 X 24
-
26516003037 Security LabelSecurity Label
-
27205484546 Socket Head Screw M8 X 45. EUROPESocket Head Screw M8 X 45. EUROPE
-
28233281414 Hex. Flanged Elastic Nut M8. EUROPEHex. Flanged Elastic Nut M8. EUROPE
-
29511000439 Radiator Cover. LTDRadiator Cover. LTD
-
30511000440 Radiator Cover. SPORTRadiator Cover. SPORT
-
31250000113 Screw M4 X 16, Type K-40. SPORTScrew M4 X 16, Type K-40. SPORT
-
32511000357 Tank CoverTank Cover
-
33293150103 Pop RivetPop Rivet
-
34516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
35511000442 RH Suitcase. LTD, Includes 35 to 37RH Suitcase. LTD, Includes 35 to 37
-
36520000237 Rear Reflector, Red. LTDRear Reflector, Red. LTD
-
37219902477 Brp Logo, Vinyl. LTDBrp Logo, Vinyl. LTD
-
38511000443 LH Suitcase. LTD, Includes 38 to 40LH Suitcase. LTD, Includes 38 to 40
-
39520000237 Rear Reflector, Red. LTDRear Reflector, Red. LTD
-
40219902477 Brp Logo, Vinyl. LTDBrp Logo, Vinyl. LTD
-
41511000341 Thread InsertThread Insert
-
43511000337 Suitcase Stud. LTDSuitcase Stud. LTD
-
44511000423 Stud Nut. LTDStud Nut. LTD
-
45511000358 Rubber Bumper. LTDRubber Bumper. LTD
-
46511000338 Support Rod. LTDSupport Rod. LTD
-
47205882044 Socket Head Screw M8 X 20, Scotch Grip. LTDSocket Head Screw M8 X 20, Scotch Grip. LTD
-
48207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
49511000340 Flanged BushingFlanged Bushing
-
50233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
51250000197 Torx Truss Screw M8 X 30Torx Truss Screw M8 X 30
-
52233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
53511000325 BushingBushing
-
54250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
55250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
56516003035 Clenching DecalClenching Decal
-
57516003036 Seat Decal. LTDSeat Decal. LTD
