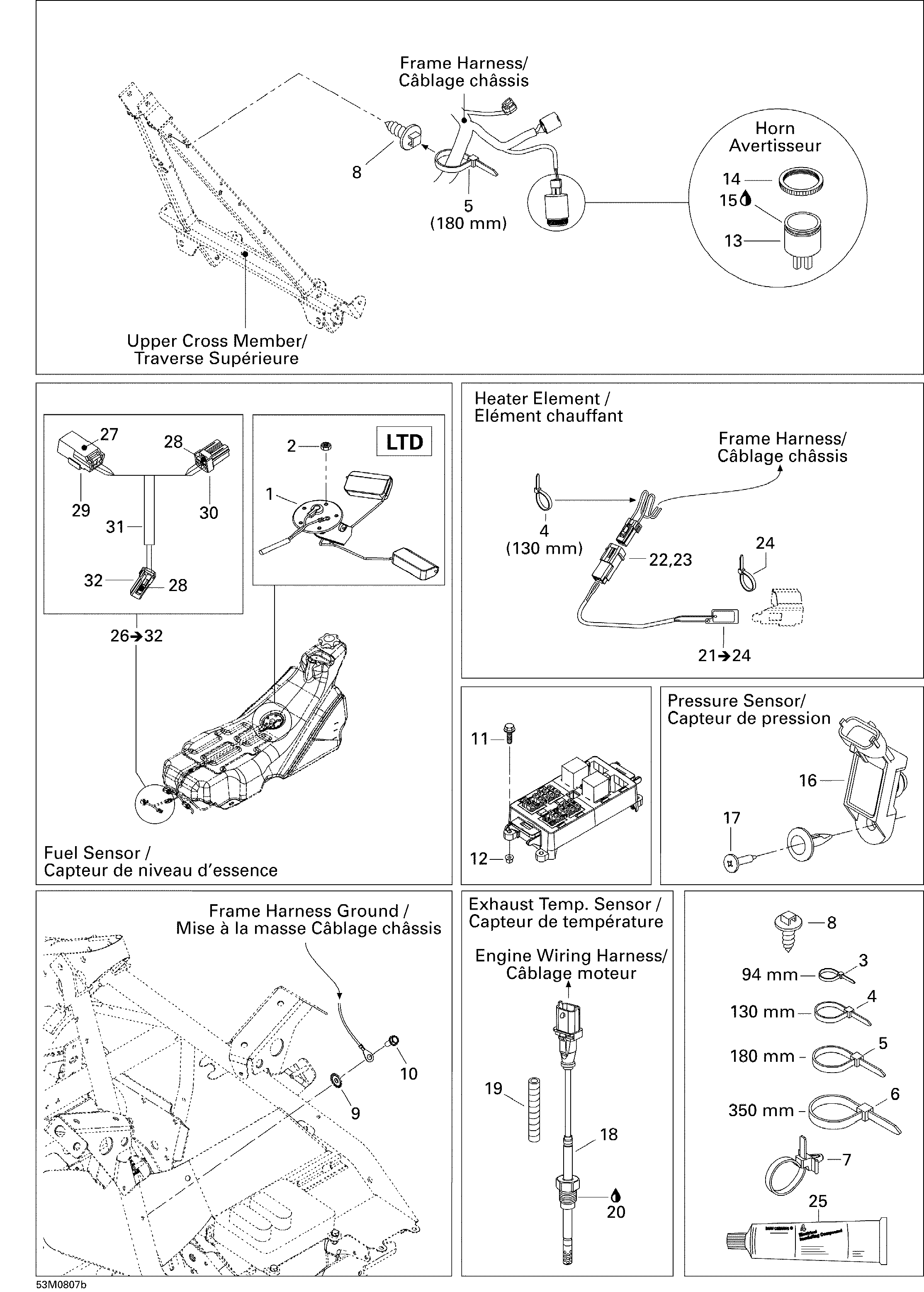

10- Electrical Accessories 2, LTD для BRP Ski-Doo GTX LTD 600 HO SDI - 2008
-
№АртикулНазвание
-
1515176213 Fuel Level Sensor. LTDFuel Level Sensor. LTD
-
2232551414 Elastic Stop Nut M5. LTDElastic Stop Nut M5. LTD
-
3293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
6293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
7293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
8293730018 Mount DartMount Dart
-
9394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
10210261280 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
11207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
12233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
13515176035 HornHorn
-
14414805101 Plastic NutPlastic Nut
-
15296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
16420274055 MAPS, Manifold Air Pressure SensorMAPS, Manifold Air Pressure Sensor
-
17414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
18515176132 Temperature SensorTemperature Sensor
-
19515175442 Tubing 6 mmTubing 6 mm
-
20293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
21515176653 Heater Element Support Ass'y. Includes 21 to 24Heater Element Support Ass'y. Includes 21 to 24
-
22515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
23515175232 Male TerminalMale Terminal
-
24293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
25293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
26515176171 Extension Harness. Includes 26 to 32Extension Harness. Includes 26 to 32
-
27515175232 Male TerminalMale Terminal
-
28515175231 Female TerminalFemale Terminal
-
29515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
30515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
31515175442 Tubing 6 mmTubing 6 mm
-
32515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
