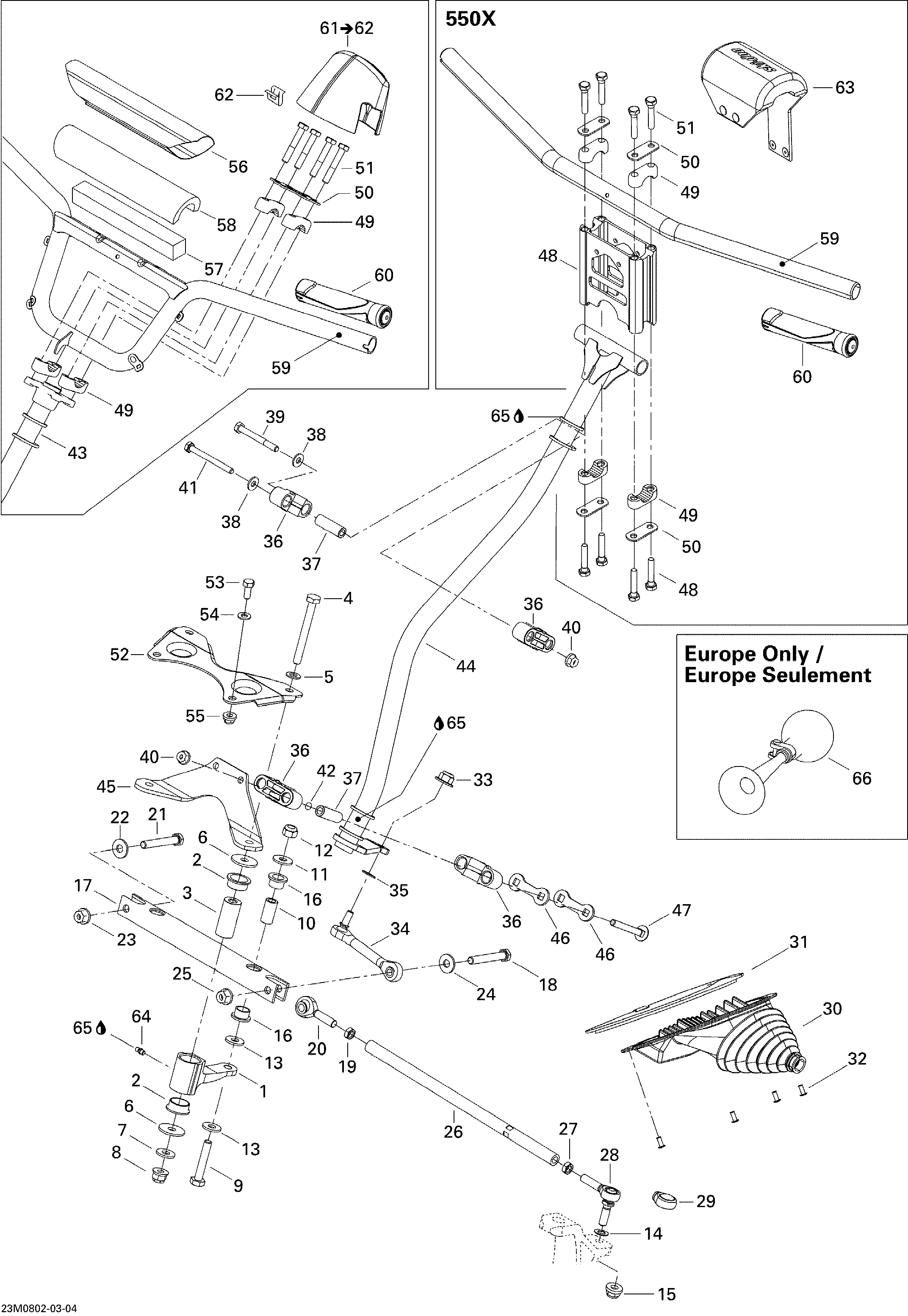

07- Steering для BRP Ski-Doo MX Z 550F - 2008
-
№АртикулНазвание
-
1506152124 RH Swivel ArmRH Swivel Arm
-
1506152123 LH Swivel ArmLH Swivel Arm
-
2415041100 CushionCushion
-
3506151272 Swivel PivotSwivel Pivot
-
4207009086 Hex. Screw M10 X 90Hex. Screw M10 X 90
-
5503183800 WasherWasher
-
6506150000 Washer 10 mmWasher 10 mm
-
7506151251 WasherWasher
-
8732610084 Flanged Nut M10Flanged Nut M10
-
9207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
10506151273 Pivot BarPivot Bar
-
11224002251 Flat WasherFlat Washer
-
12233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
13250200032 WasherWasher
-
14503175800 WasherWasher
-
15250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
16503191555 Swivel BushingSwivel Bushing
-
17506151328 Swivel BarSwivel Bar
-
18207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
19250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
20506151810 LH Ball JointLH Ball Joint
-
21207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
22224002251 Flat WasherFlat Washer
-
23233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
24224002251 Flat WasherFlat Washer
-
25233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
26506151340 Tie-RodTie-Rod
-
27732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
28506152212 Ball JointBall Joint
-
29506151650 Protection CapProtection Cap
-
30506151725 RH Tie-Rod CapRH Tie-Rod Cap
-
30506151726 LH Tie-Rod CapLH Tie-Rod Cap
-
31506151356 RH Retainer RingRH Retainer Ring
-
31506151357 LH Retainer RingLH Retainer Ring
-
32390909100 Avex RivetAvex Rivet
-
33250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
34506151621 Ball Joint, DoubleBall Joint, Double
-
35503175800 WasherWasher
-
36506150400 Housing HalfHousing Half
-
37506150500 Housing BushingHousing Bushing
-
38503189157 WasherWasher
-
39207087044 Hex. Screw M8 X 70Hex. Screw M8 X 70
-
40233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
41207088044 Hex. Screw M8 X 80Hex. Screw M8 X 80
-
42506151140 O-RingO-Ring
-
43506152131 Main Tube. FANMain Tube. FAN
-
45506151330 Steering Shaft SupportSteering Shaft Support
-
46506150600 Stopper PlateStopper Plate
-
47207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
49506151622 Steering SupportSteering Support
-
50506151547 Reinforcement. FANReinforcement. FAN
-
51250000082 Hex. Screw With Nylon M8 X 50. FANHex. Screw With Nylon M8 X 50. FAN
-
52506151536 Pivot SupportPivot Support
-
53207182544 Hex. Screw M8 X 25Hex. Screw M8 X 25
-
54234081410 Flat Washer 8 mmFlat Washer 8 mm
-
55233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
56506152140 Steering Cover. FANSteering Cover. FAN
-
57506152141 Steering Cover Foam Insert. FANSteering Cover Foam Insert. FAN
-
58506152143 Steering Cover Foam. FANSteering Cover Foam. FAN
-
59506151993 Handle Bar. FANHandle Bar. FAN
-
60506152238 Handle Grip. FANHandle Grip. FAN
-
61506151660 Cap. Includes 61 to 62Cap. Includes 61 to 62
-
62517302785 ClipClip
-
64408200700 Grease FittingGrease Fitting
-
65219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
66549011291 HornHorn
