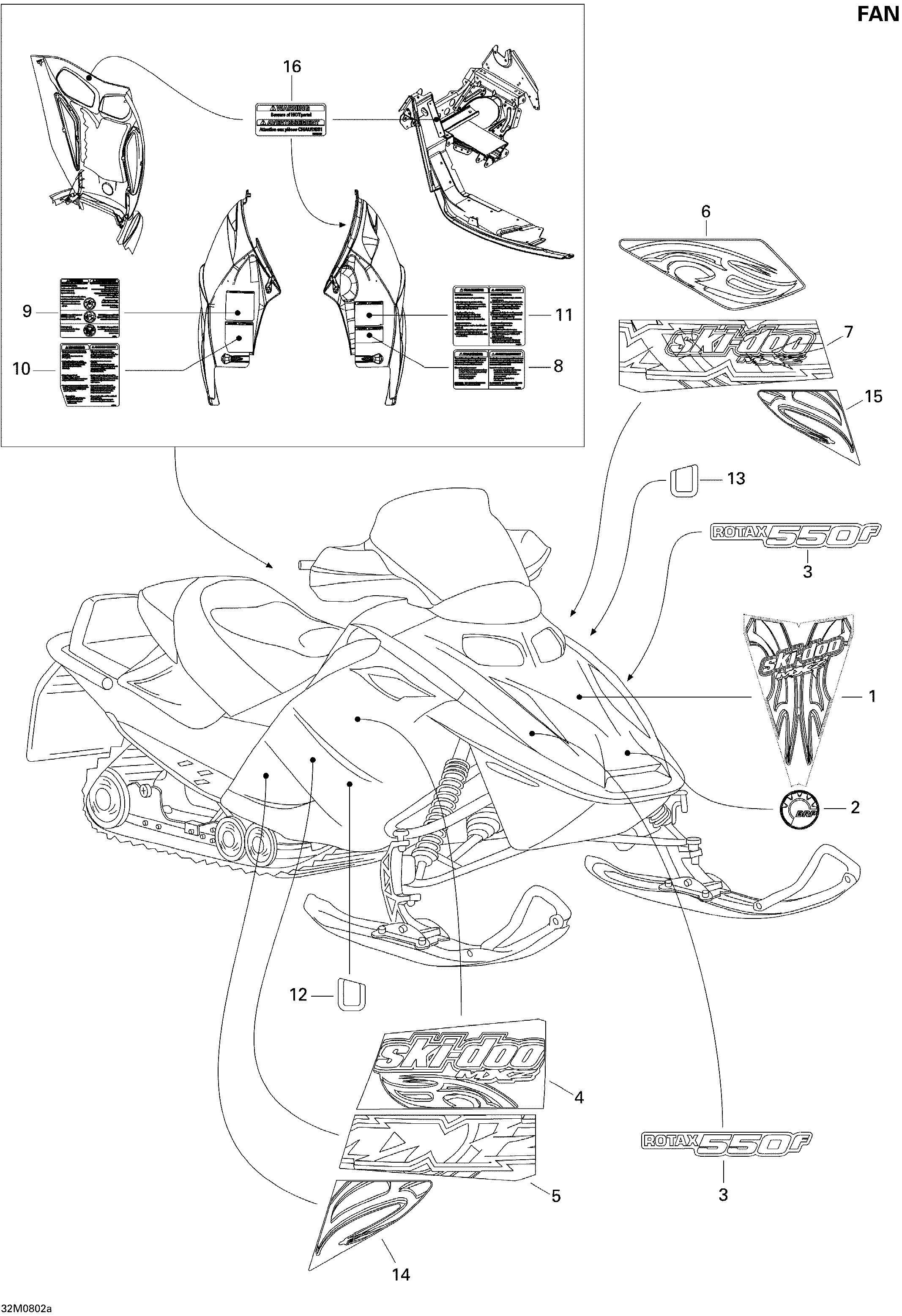

09- Decals FAN для BRP Ski-Doo MX Z 550F - 2008
-
№АртикулНазвание
-
1516003384 Hood DecalHood Decal
-
2219902468 BRP Logo, 48 mmBRP Logo, 48 mm
-
3516003410 Hood Decal, Rotax 550FHood Decal, Rotax 550F
-
4516003052 RH Side DecalRH Side Decal
-
5516003058 RH Lower Side DecalRH Lower Side Decal
-
6516003066 LH Side DecalLH Side Decal
-
7516003067 LH Lower Side DecalLH Lower Side Decal
-
8516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
9516002908 Security Label, GeneralSecurity Label, General
-
10516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
11516003024 Security Label, StartingSecurity Label, Starting
-
12516001910 RH Protector DecalRH Protector Decal
-
13516001911 LH Protector DecalLH Protector Decal
-
14516003061 RH Rear Lower DecalRH Rear Lower Decal
-
15516003060 LH Rear Lower DecalLH Rear Lower Decal
-
16516002965 Security Label, Hot PartsSecurity Label, Hot Parts
