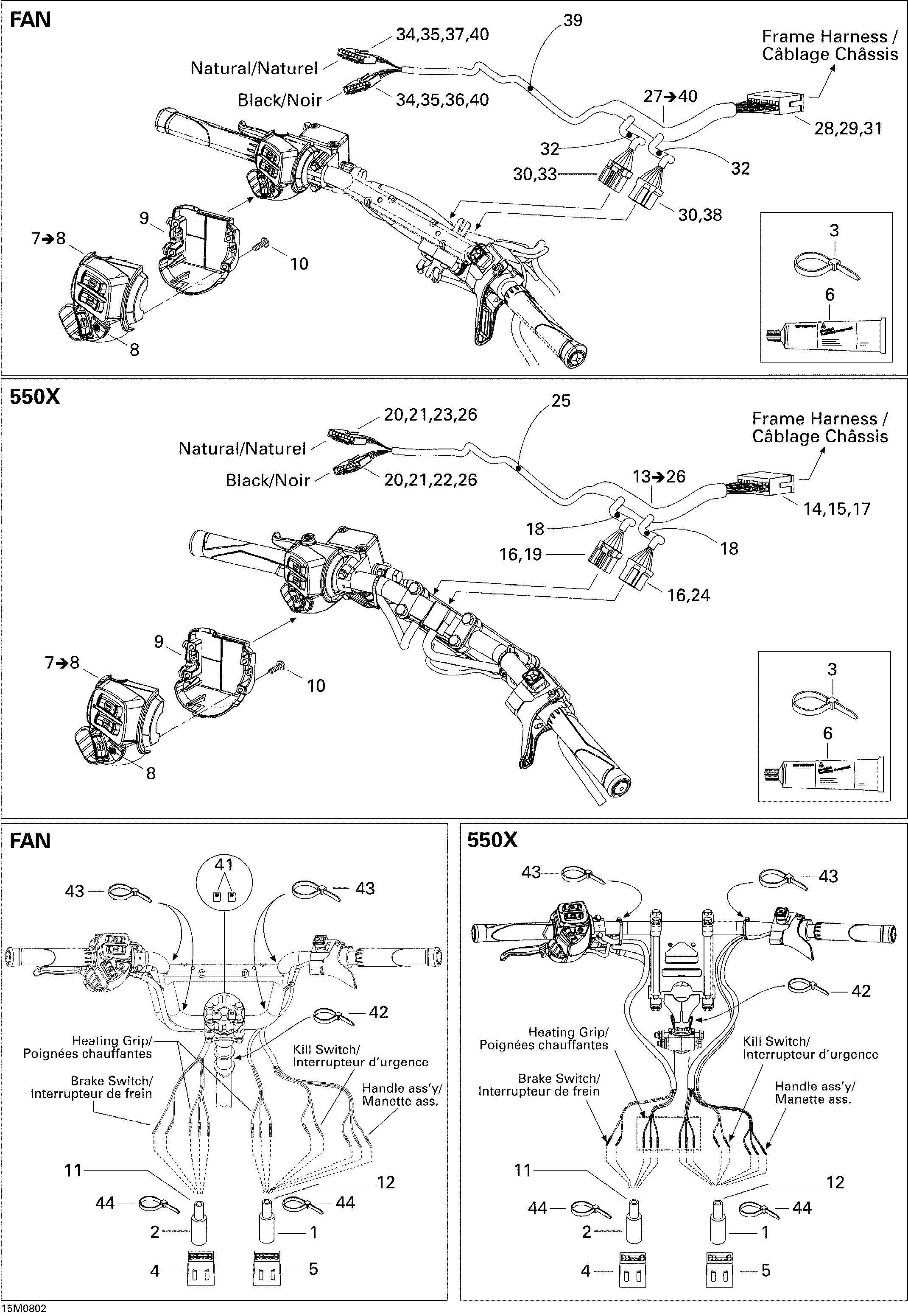

10- Steering Wiring Harness для BRP Ski-Doo MX Z 550F - 2008
-
№АртикулНазвание
-
1515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
2515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
3293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
4515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
5515175817 Male Terminal Housing, 8 CircuitsMale Terminal Housing, 8 Circuits
-
6293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
7515176187 LH Switch Housing. Includes 7 to 8LH Switch Housing. Includes 7 to 8
-
8515176088 Start/RER ButtonStart/RER Button
-
9515175926 Housing Switch PlateHousing Switch Plate
-
10250000263 Torx Screw #8-18Torx Screw #8-18
-
11409902200 Tubing 25 mmTubing 25 mm
-
12409902200 Tubing 25 mmTubing 25 mm
-
27515176308 Steering Wiring Harness. FAN, Includes 27 to 40Steering Wiring Harness. FAN, Includes 27 to 40
-
28515175232 Male Terminal. FANMale Terminal. FAN
-
29515175273 Male Terminal. FANMale Terminal. FAN
-
30515175231 Female Terminal. FANFemale Terminal. FAN
-
31515175352 Male Terminal Housing, 13 Circuits. FANMale Terminal Housing, 13 Circuits. FAN
-
32415079900 Tubing 10 mm. FANTubing 10 mm. FAN
-
33515175543 Female Terminal Housing, 6 Circuits. FANFemale Terminal Housing, 6 Circuits. FAN
-
34515175808 Female Terminal. FANFemale Terminal. FAN
-
35515175809 Femelle Lock, 8 Circuits. FANFemelle Lock, 8 Circuits. FAN
-
36515175807 Female Terminal Housing, 8 Circuits. FANFemale Terminal Housing, 8 Circuits. FAN
-
37515175810 Female Terminal Housing, 8 Circuits. FANFemale Terminal Housing, 8 Circuits. FAN
-
38515175819 Female Terminal Housing, 8 Circuits. FANFemale Terminal Housing, 8 Circuits. FAN
-
39515175830 Low Temperature Tubing 1/2''. FANLow Temperature Tubing 1/2''. FAN
-
40515175941 Female Terminal. FANFemale Terminal. FAN
-
41515175944 Housing Support. FANHousing Support. FAN
-
42293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
43414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
44293750002 Tie-Rap 130 mmTie-Rap 130 mm
