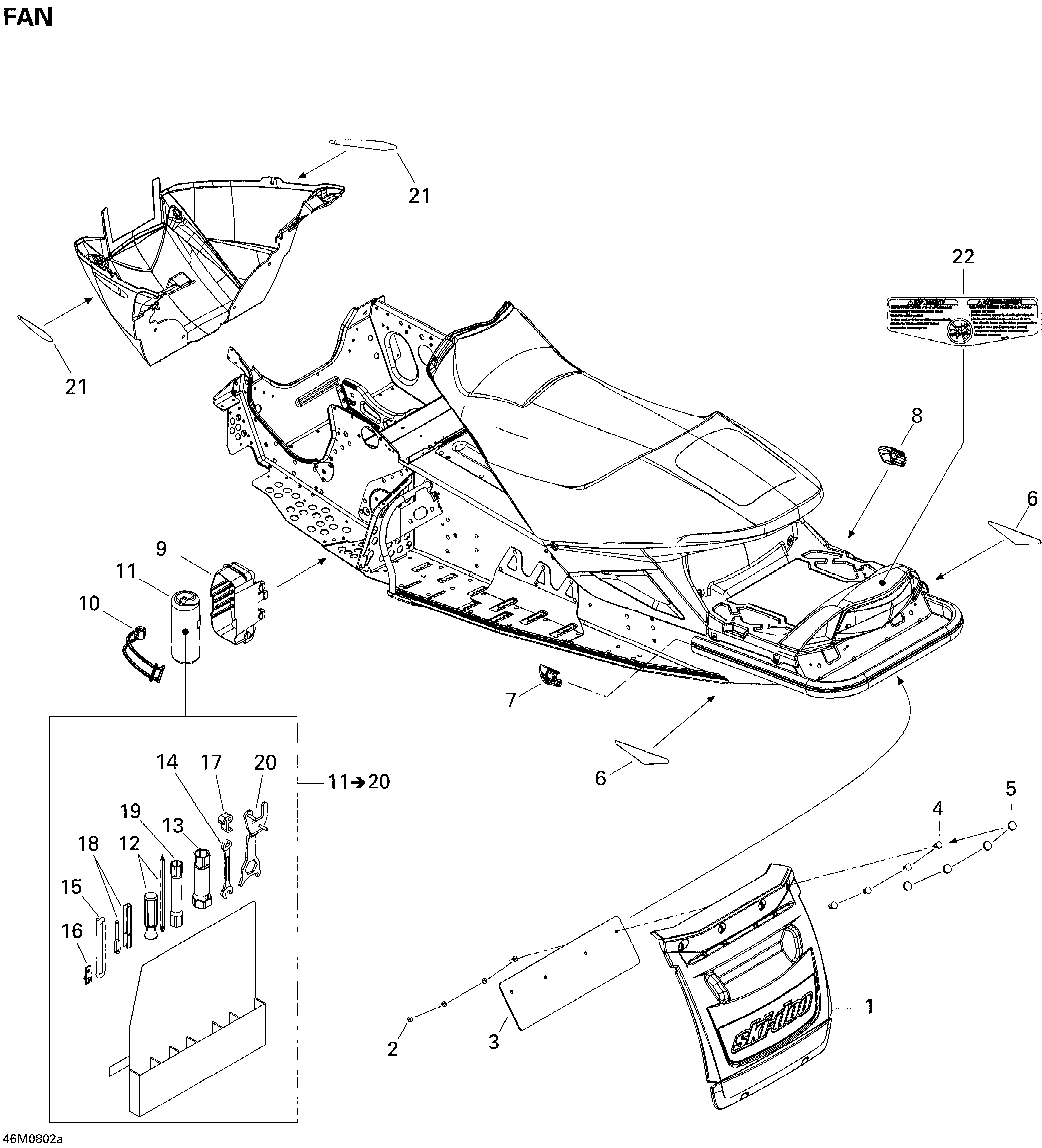

09- Utilities для BRP Ski-Doo MX Z 550F - 2008
-
№АртикулНазвание
-
1520000449 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap, BlackCap, Black
-
6520000237 Rear Reflector, RedRear Reflector, Red
-
7520000397 LH CapLH Cap
-
8520000398 RH CapRH Cap
-
9520000322 TrunkTrunk
-
10520000528 LatchLatch
-
11529000036 Tool Kit. Includes 11 to 20Tool Kit. Includes 11 to 20
-
12529000004 Driver ScrewDriver Screw
-
13529014800 Socket Wrench 21/26 mmSocket Wrench 21/26 mm
-
14529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
15412500200 Starter Rope 2200 mm, MeterStarter Rope 2200 mm, Meter
-
16529024400 Rope AdaptorRope Adaptor
-
17529019400 Starter GripStarter Grip
-
18529035501 Spacing ToolSpacing Tool
-
19295000175 Socket Wrench 16/18 mmSocket Wrench 16/18 mm
-
20520000721 WrenchWrench
-
21516001336 Front ReflectorFront Reflector
-
22516003034 Warning Label, Track SecurityWarning Label, Track Security
