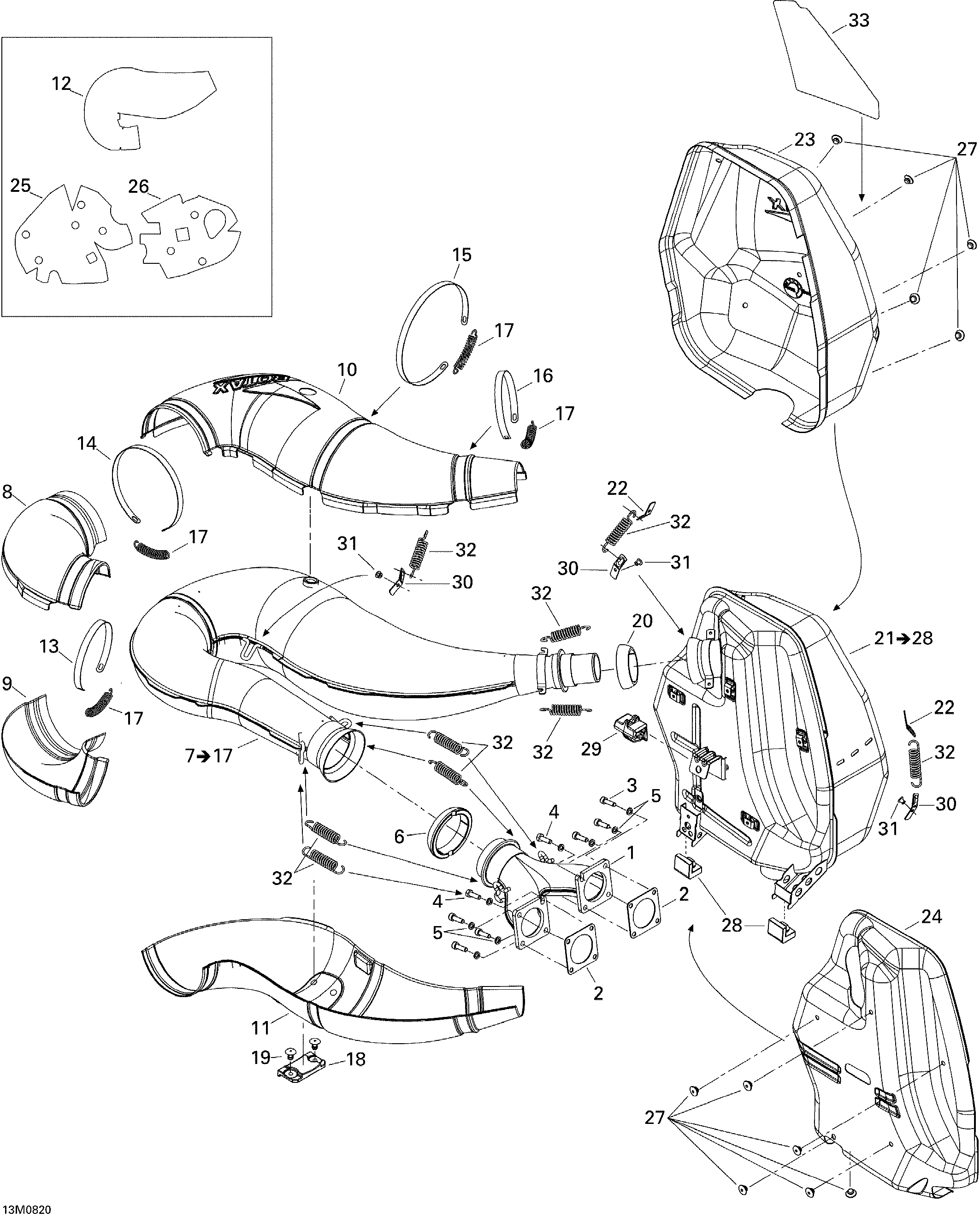

01- Exhaust System для BRP Ski-Doo MX Z 600RS - 2008
-
№АртикулНазвание
-
1420673420 ManifoldManifold
-
2420850552 GasketGasket
-
3514054047 Socket Screw M6 X 20, Scotch GripSocket Screw M6 X 20, Scotch Grip
-
4250000337 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
5514053953 WasherWasher
-
6514053487 Exhaust GasketExhaust Gasket
-
7514054385 Calibrated Tube Ass'y. Includes 7 to 17Calibrated Tube Ass'y. Includes 7 to 17
-
8514054485 Front Upper EnveloppeFront Upper Enveloppe
-
9514054486 Front Lower EnveloppeFront Lower Enveloppe
-
10514054389 Rear Upper EnveloppeRear Upper Enveloppe
-
11514054279 Rear Lower EnveloppeRear Lower Enveloppe
-
12514054487 Insulating WoolInsulating Wool
-
13514054408 Retaining StrapRetaining Strap
-
14514054409 Retaining StrapRetaining Strap
-
15514054410 Retaining StrapRetaining Strap
-
16514053499 Retaining StrapRetaining Strap
-
17514053643 SpringSpring
-
18514054275 BumperBumper
-
19293150103 Pop RivetPop Rivet
-
20514053812 Exhaust GasketExhaust Gasket
-
21514054515 Muffler Ass'y. Includes 21 to 28Muffler Ass'y. Includes 21 to 28
-
22514054155 Spring BracketSpring Bracket
-
23514054433 RH DeflectorRH Deflector
-
24514054202 LH DeflectorLH Deflector
-
25514054298 RH Insulating WoolRH Insulating Wool
-
26514054299 LH Insulating WoolLH Insulating Wool
-
27390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
28514054274 Lower StopperLower Stopper
-
29514054282 Upper StopperUpper Stopper
-
30514054391 Spring BracketSpring Bracket
-
31390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
32514054226 SpringSpring
-
33514054488 Reflective SheetReflective Sheet
