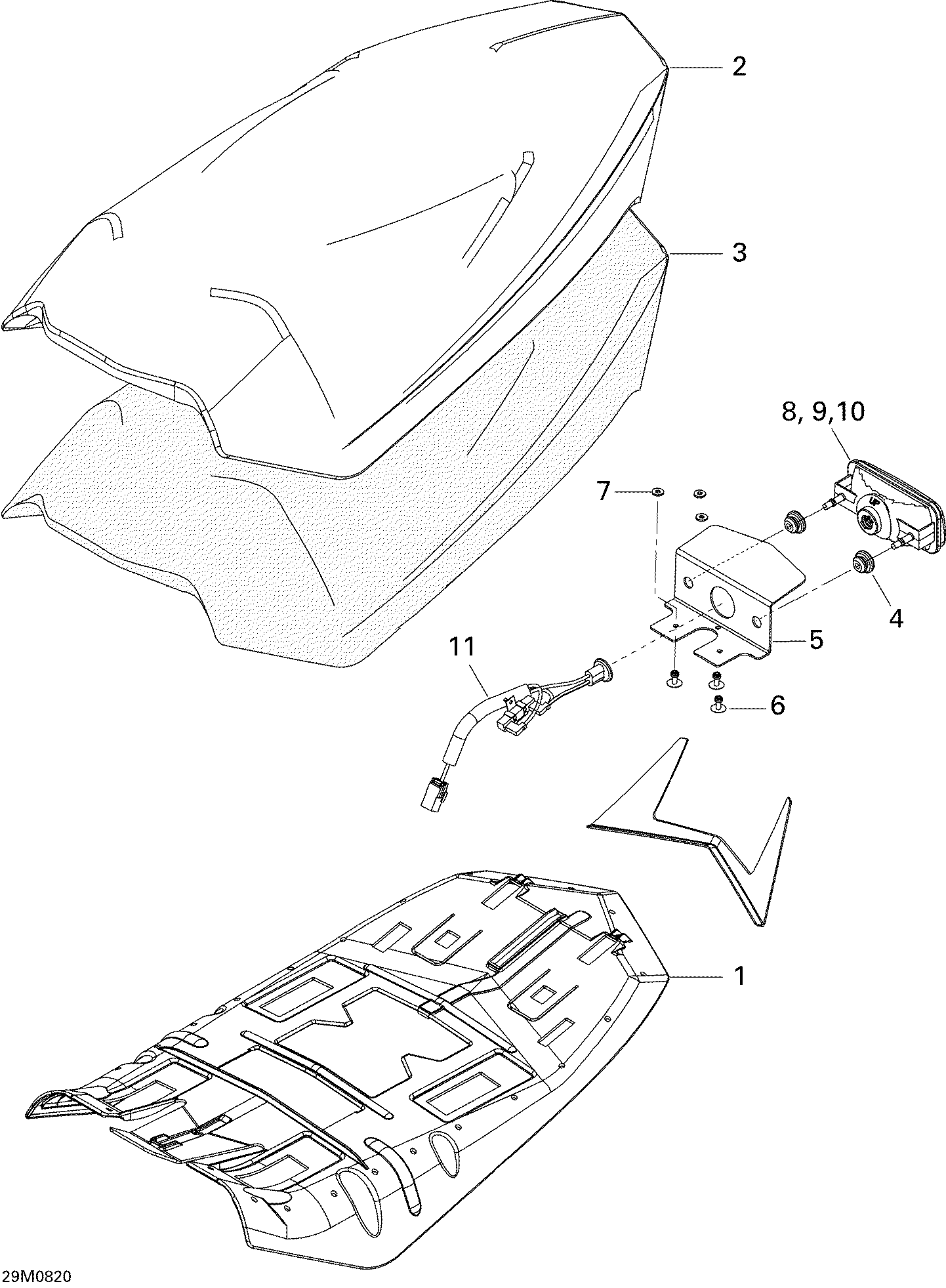

09- Seat для BRP Ski-Doo MX Z 600RS - 2008
-
№АртикулНазвание
-
1510004689 Seat BaseSeat Base
-
2510004691 Seat Foam. Without Tail LightSeat Foam. Without Tail Light
-
2510004952 Seat Foam. With Tail LightSeat Foam. With Tail Light
-
3510004693 Seat Cover. Without Tail LightSeat Cover. Without Tail Light
-
3510004953 Seat Cover. With Tail LightSeat Cover. With Tail Light
-
4705001119 Washer. With Tail LightWasher. With Tail Light
-
5520000749 Support. With Tail LightSupport. With Tail Light
-
6293150104 Pop Rivet 3/16''. With Tail LightPop Rivet 3/16''. With Tail Light
-
7517225900 Flat Washer. With Tail LightFlat Washer. With Tail Light
-
8511000507 Rear light Ass'y. With Tail Light, Includes 8 to 11Rear light Ass'y. With Tail Light, Includes 8 to 11
-
9710000652 Rear Lens Box. With Tail LightRear Lens Box. With Tail Light
-
10710000653 Bulb. With Tail LightBulb. With Tail Light
-
11511000508 Wiring Harness. With Tail LightWiring Harness. With Tail Light
