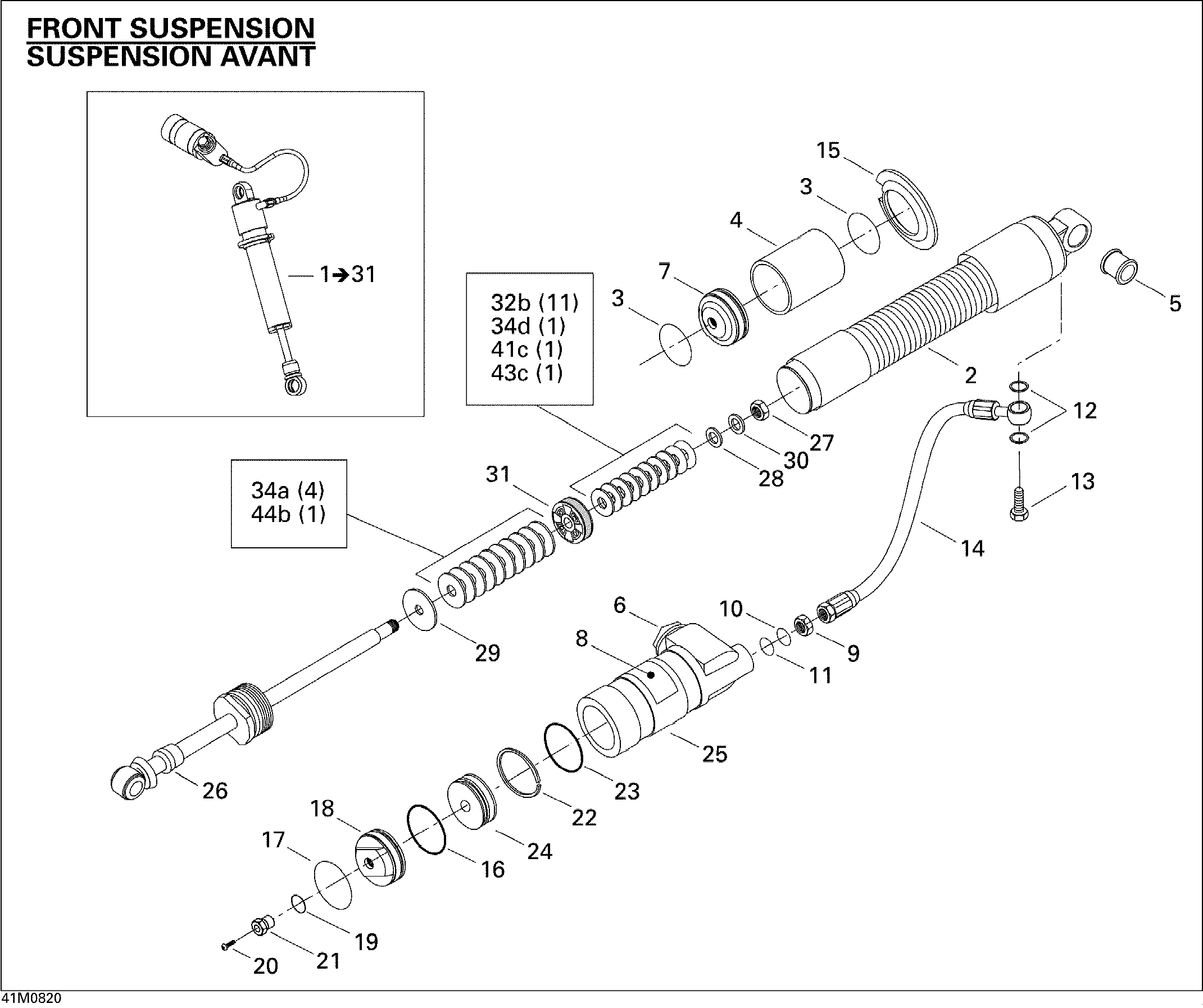

07- Take Apart Shock, Front для BRP Ski-Doo MX Z 600RS - 2008
-
№АртикулНазвание
-
1505072398 RH Front Shock. Includes 1 to 31RH Front Shock. Includes 1 to 31
-
1505072400 LH Front Shock. Includes 1 to 31LH Front Shock. Includes 1 to 31
-
12415038700 O-RingO-Ring
-
13415093810 BoltBolt
-
14415128591 Hose Ass'yHose Ass'y
-
15415128598 Spring CollarSpring Collar
-
16415093804 O-RingO-Ring
-
19505070400 O-RingO-Ring
-
20505070399 ScrewScrew
-
21505070398 Air Valve RingAir Valve Ring
-
22415093806 Piston RingPiston Ring
-
23415093807 O-RingO-Ring
-
25415128592 ReservoirReservoir
-
31415128848 Piston (2 X 0.3-1) (C36)Piston (2 X 0.3-1) (C36)
-
32a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
32b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
32c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
34a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
34b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
37D414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
38b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
38c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
40b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
40c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
42a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
42b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
42c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
42d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
43b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
46a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
46b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
46d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
