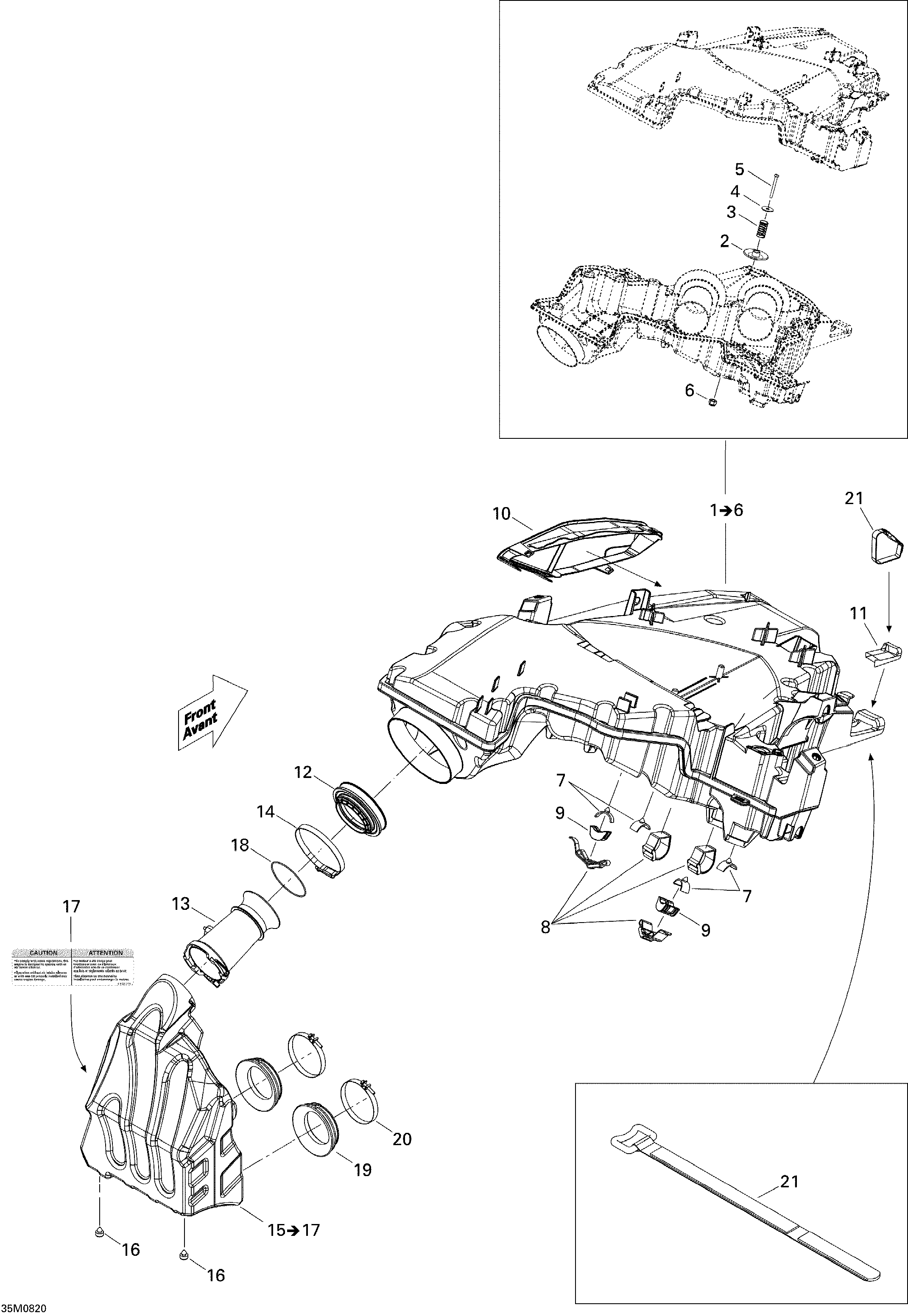

02- Air Intake System для BRP Ski-Doo MX Z 600RS - 2008
-
№АртикулНазвание
-
1508000606 Secondaire Chamber Ass'y. Includes 1 to 6Secondaire Chamber Ass'y. Includes 1 to 6
-
3508000576 SpringSpring
-
4224060201 Flat WasherFlat Washer
-
5205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
6232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
7508000537 StopperStopper
-
8508000532 Strip VelcroStrip Velcro
-
9508000572 BumperBumper
-
10508000568 Air FilterAir Filter
-
11508000581 Reflective SheetReflective Sheet
-
12508000567 BootBoot
-
13508000542 Intake AdapterIntake Adapter
-
14514052924 Norma ClampNorma Clamp
-
15508000535 Primary Chamber Ass'y. Includes 15 to 17Primary Chamber Ass'y. Includes 15 to 17
-
16293830005 Rubber Plug, BlackRubber Plug, Black
-
17516003371 Caution Label, Air IntakeCaution Label, Air Intake
-
18293300115 O-RingO-Ring
-
19508000536 Intake AdapterIntake Adapter
-
20508000346 Gemi ClampGemi Clamp
-
21508000599 Velcro StripVelcro Strip
