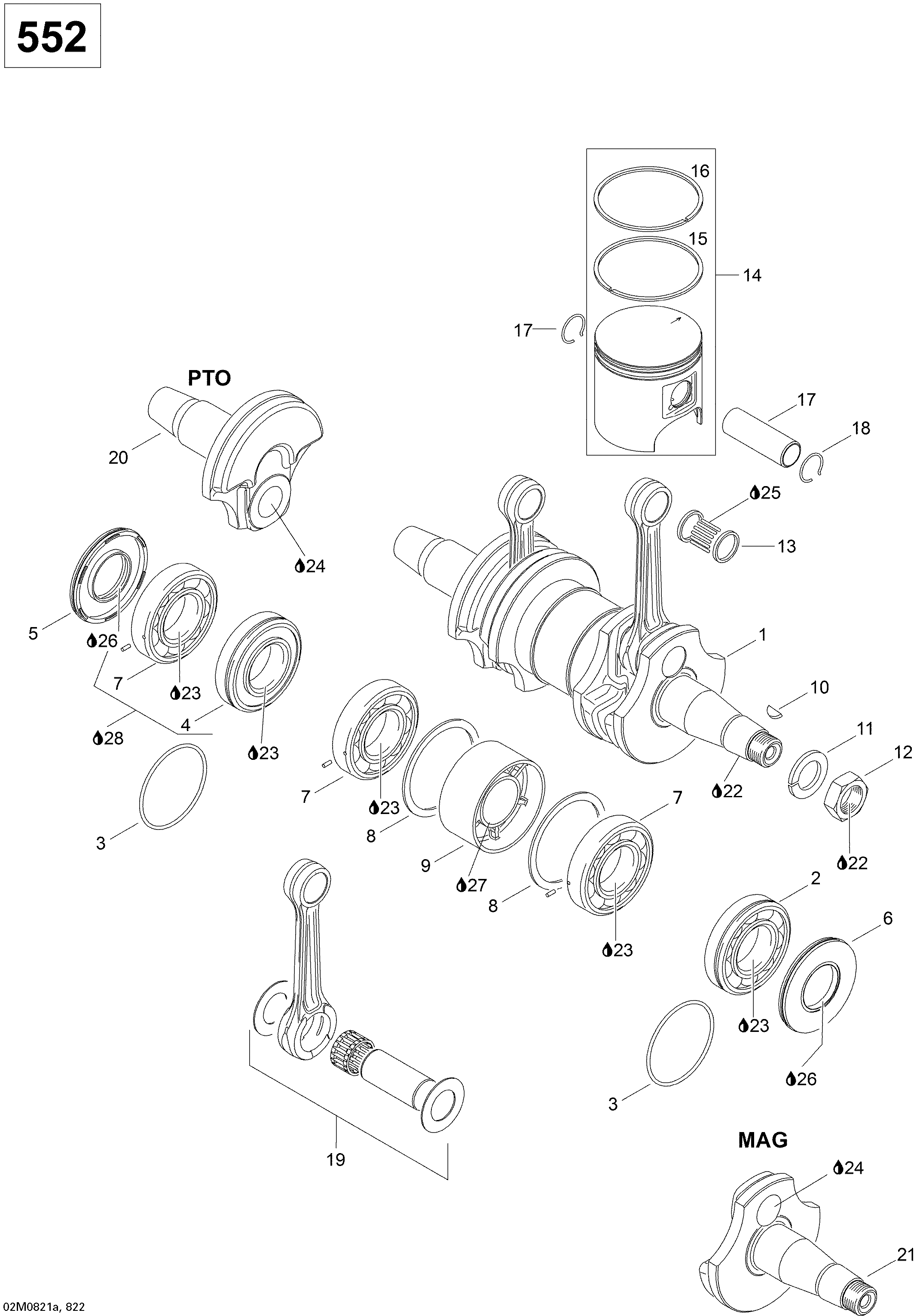

01- Crankshaft And Pistons 550F для BRP Ski-Doo Skandic SUV 550F - 2008
![](/wa-data/public/shop/sheme/bombardier/ski-doo/e23f80ba-1bb6-4fc3-8818-34fe9c50fba0.png)
-
№АртикулНазвание
-
1420889062 CrankshaftCrankshaft
-
2420832571 Ball BearingBall Bearing
-
3293300022 O-Ring 64 mmO-Ring 64 mm
-
4420832639 Ball BearingBall Bearing
-
5420831952 Oil SealOil Seal
-
6420831955 Oil SealOil Seal
-
7420832573 Ball BearingBall Bearing
-
8420927710 Retaining DiskRetaining Disk
-
9420850149 Labyrinth SleeveLabyrinth Sleeve
-
10420246055 Woodruff KeyWoodruff Key
-
11420945759 Lock WasherLock Washer
-
12420842234 Hex. Nut M22Hex. Nut M22
-
13420832420 Needle BearingNeedle Bearing
-
14420889050 Piston Assy 75.86 mm. Includes 14 to 16Piston Assy 75.86 mm. Includes 14 to 16
-
14420889051 Piston Assy 76.11 mm. Includes 14 to 17Piston Assy 76.11 mm. Includes 14 to 17
-
14420889052 Piston Assy 76.36 mm. Includes 14 to 18Piston Assy 76.36 mm. Includes 14 to 18
-
15420815300 Rectangular Ring 76 mmRectangular Ring 76 mm
-
15420815301 Rectangular Ring 76.25 mmRectangular Ring 76.25 mm
-
15420815302 Rectangular Ring 76.50 mmRectangular Ring 76.50 mm
-
16420815155 Semi-Trapez Ring, 76 mmSemi-Trapez Ring, 76 mm
-
16420815156 Semi-Trapez Ring, 76.25 mmSemi-Trapez Ring, 76.25 mm
-
16420815157 Semi-trapez Ring 76.50 mmSemi-trapez Ring 76.50 mm
-
17420916405 Piston PinPiston Pin
-
18420845106 Piston CirclipPiston Circlip
-
19420889064 Rod Repair KitRod Repair Kit
-
22293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
23293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
24413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
25413802900 Injection Oil, 12 X 1 LiterInjection Oil, 12 X 1 Liter
-
26420899271 Petamo Grease, GHY133N, 400 GPetamo Grease, GHY133N, 400 G
-
28293550021 Isoflex Grease, 50 G, Topas NB52Isoflex Grease, 50 G, Topas NB52
