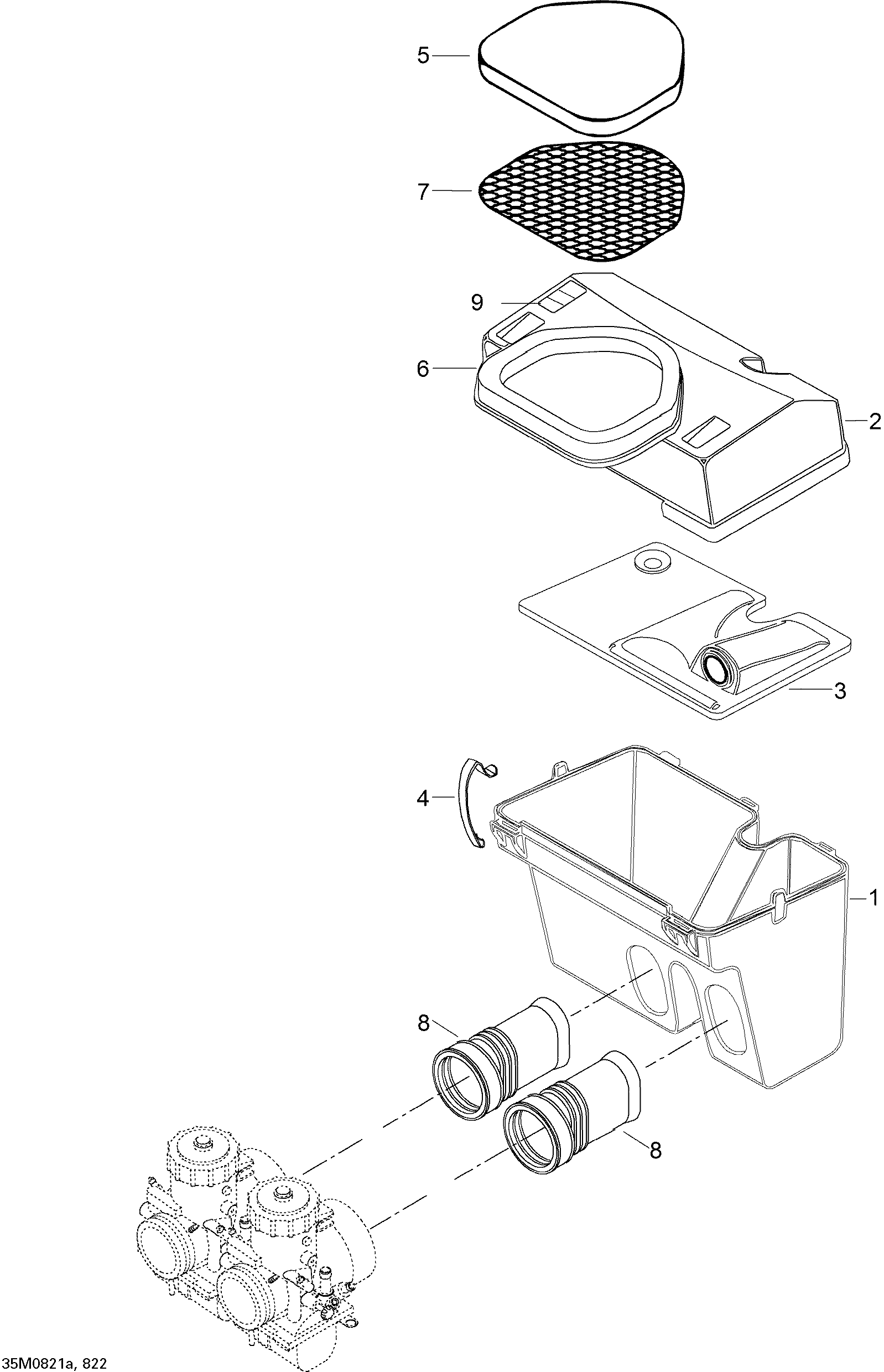

02- Air Silencer 550F для BRP Ski-Doo Skandic SUV 550F - 2008
-
№АртикулНазвание
-
1M5142751 Air IntakeAir Intake
-
2605255779 Airbox CoverAirbox Cover
-
3M5344795 Tube PlateTube Plate
-
4M5442836 Spring LockSpring Lock
-
5M5342958 Air FilterAir Filter
-
6M5342959 Sealing FoamSealing Foam
-
7M5342960 Intake GrillIntake Grill
-
8M5142626 Air Intake AdaptorAir Intake Adaptor
-
9605628003 ClampClamp
