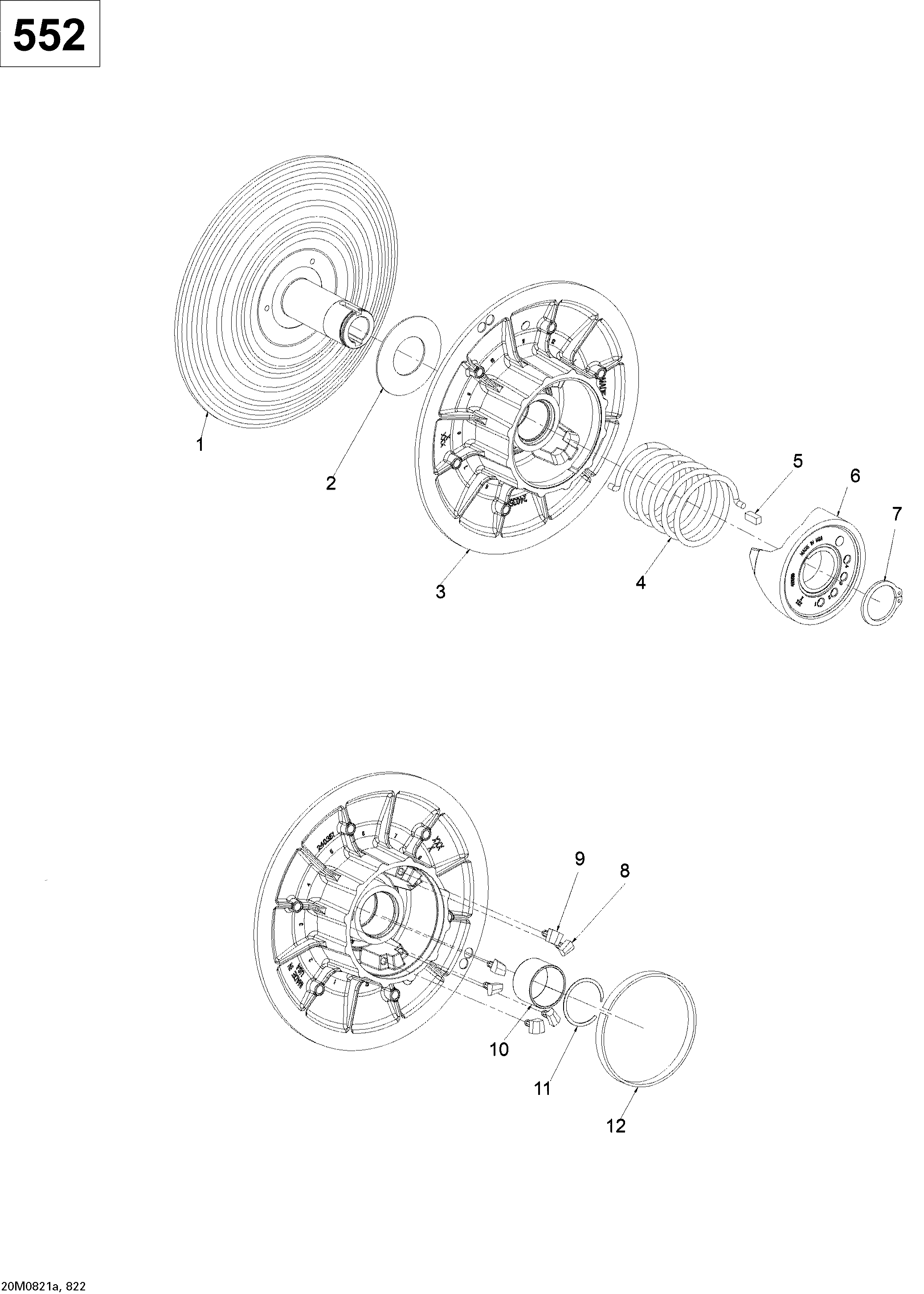

05- Driven Pulley 550F для BRP Ski-Doo Skandic SUV 550F - 2008
-
№АртикулНазвание
-
1619100024 Fixed flangeFixed flange
-
2504099600 Stopper WasherStopper Washer
-
3619100026 Sliding Flange Ass'ySliding Flange Ass'y
-
4619100037 Release springRelease spring
-
5619100028 KeyKey
-
6619100035 Cam 40/30 degrCam 40/30 degr
-
7619100027 CirclipCirclip
-
8619100040 Foward slider shoeFoward slider shoe
-
9619100039 Reverse slider shoeReverse slider shoe
-
10619100032 BushingBushing
-
11619100033 CirclipCirclip
-
12619100034 BushingBushing
