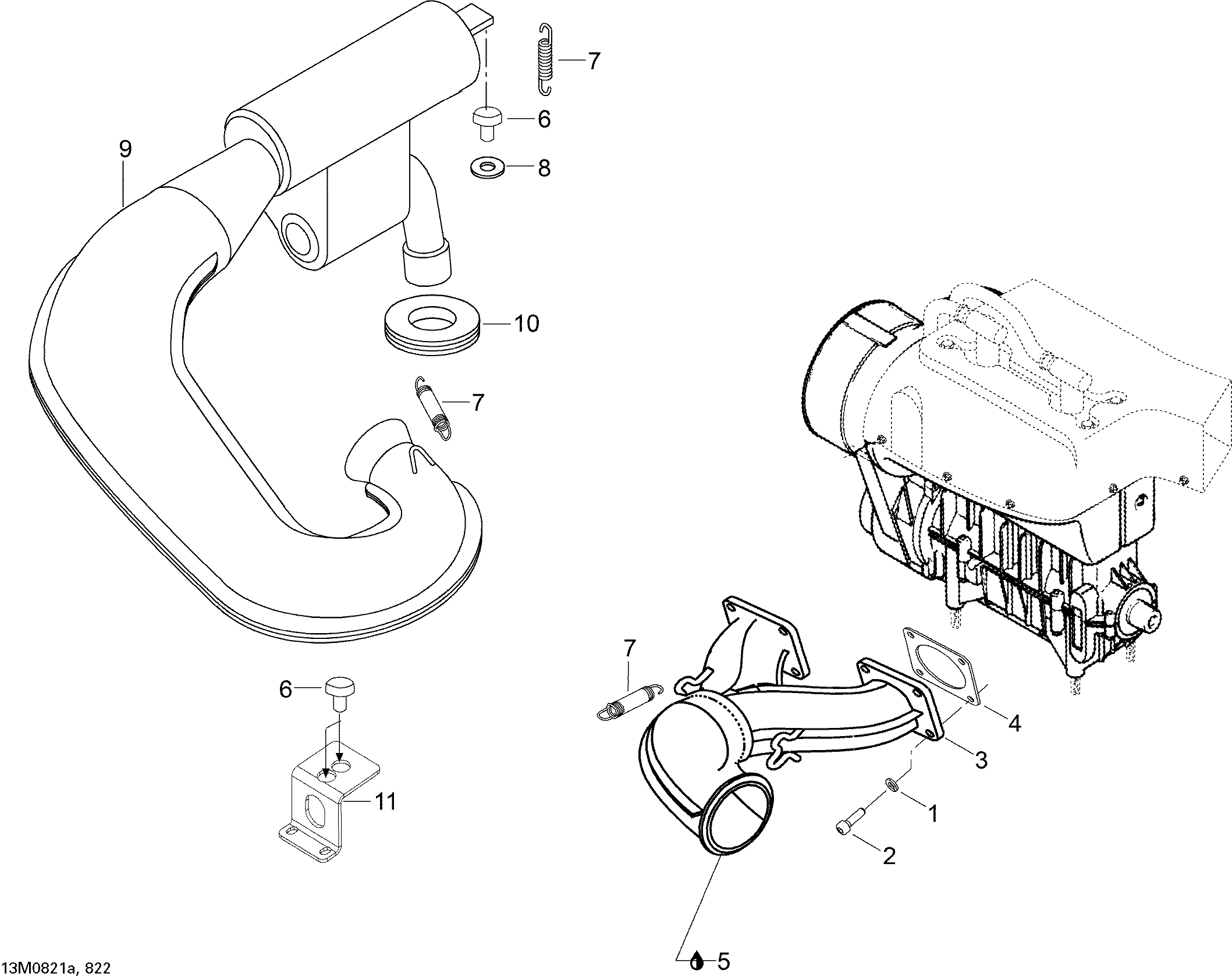

01- Exhaust System 550F для BRP Ski-Doo Skandic SUV 550F - 2008
-
№АртикулНазвание
-
1234181401 Lock Washer 8 mmLock Washer 8 mm
-
2M40135 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
3420973512 Exhaust ManifoldExhaust Manifold
-
4420831849 Gasket 1.0 mmGasket 1.0 mm
-
5293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
6514053654 Rubber BumperRubber Bumper
-
7420938795 SpringSpring
-
8M20087 WasherWasher
-
9605155510 Tuned Pipe Ass'yTuned Pipe Ass'y
-
10570039000 Exhaust GrommetExhaust Grommet
-
11605455781 BracketBracket
