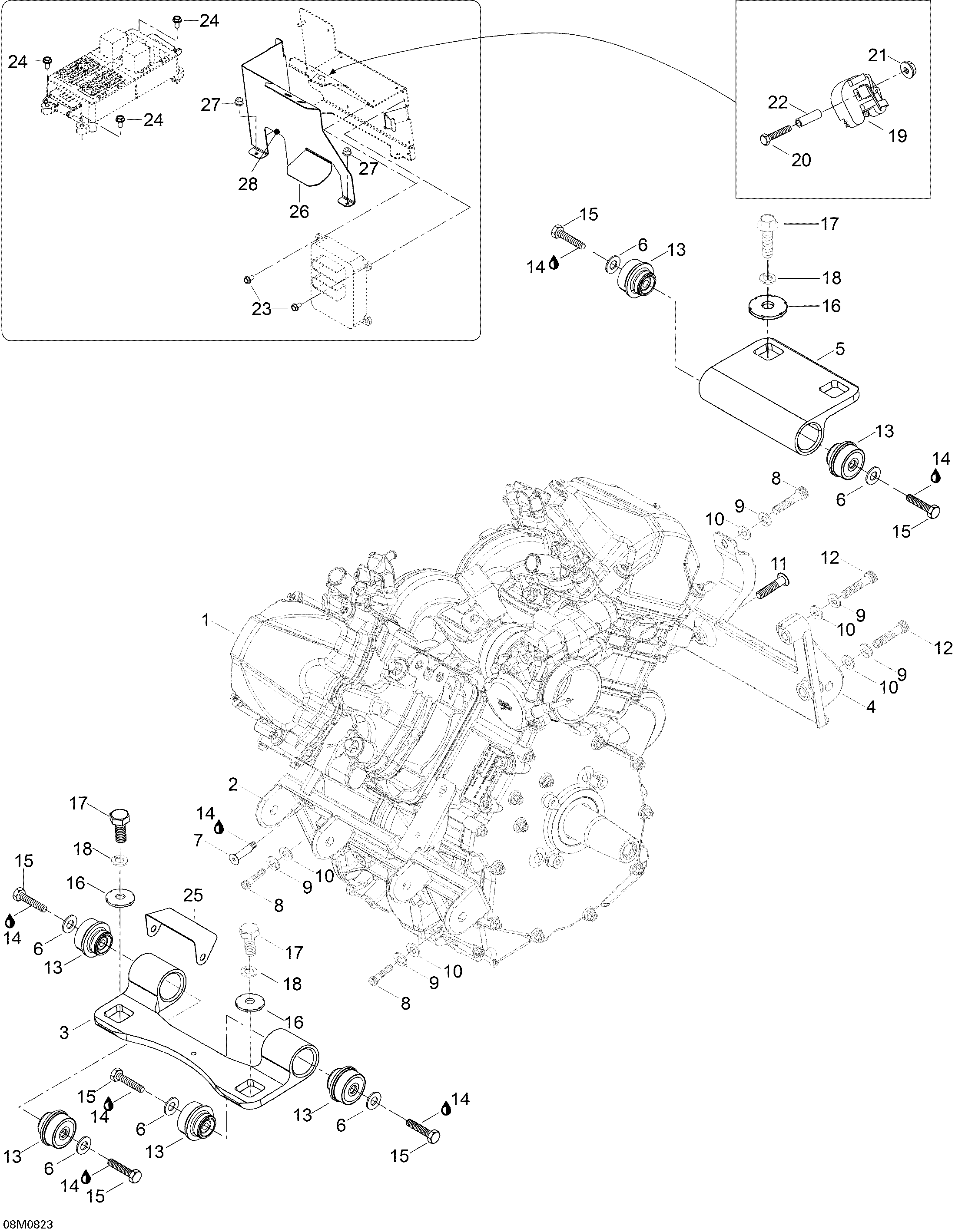

01- Engine And Engine Support для BRP Ski-Doo Skandic SWT V-800 - 2008
-
№АртикулНазвание
-
2605253109 Front Engine Mounting SupportFront Engine Mounting Support
-
3605353705 Front SupportFront Support
-
4605253110 Rear Engine Mounting SupportRear Engine Mounting Support
-
5605353706 Rear SupportRear Support
-
6234001410 Flat Washer 10 mmFlat Washer 10 mm
-
7M40839 Screw M8 X 20Screw M8 X 20
-
8205082544 Socket Head Screw M8 X 25Socket Head Screw M8 X 25
-
9234181401 Lock Washer 8 mmLock Washer 8 mm
-
10M20104 WasherWasher
-
11605640012 Socket Screw M8 X 25Socket Screw M8 X 25
-
12M40286 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
13512059691 Rubber MountRubber Mount
-
15207103044 Hex. Screw M10 X 30Hex. Screw M10 X 30
-
16512056700 Lock WasherLock Washer
-
17207102544 Hex. Screw M10 X 25Hex. Screw M10 X 25
-
18234100602 Lock Spring Washer M10Lock Spring Washer M10
-
19278001546 Ignition CoilIgnition Coil
-
20M40084 Screw M6 X 45Screw M6 X 45
-
21M33200 Nut M6Nut M6
-
22512059812 SpacerSpacer
-
23M40327 Allen Screw M6 X 12Allen Screw M6 X 12
-
24210251680 Hex. Forming Screw M5 X 16Hex. Forming Screw M5 X 16
-
25605354238 Front DeflectorFront Deflector
-
26605353299 Heat CoverHeat Cover
-
27M33200 Nut M6Nut M6
-
28M28413 Sealing StripSealing Strip
