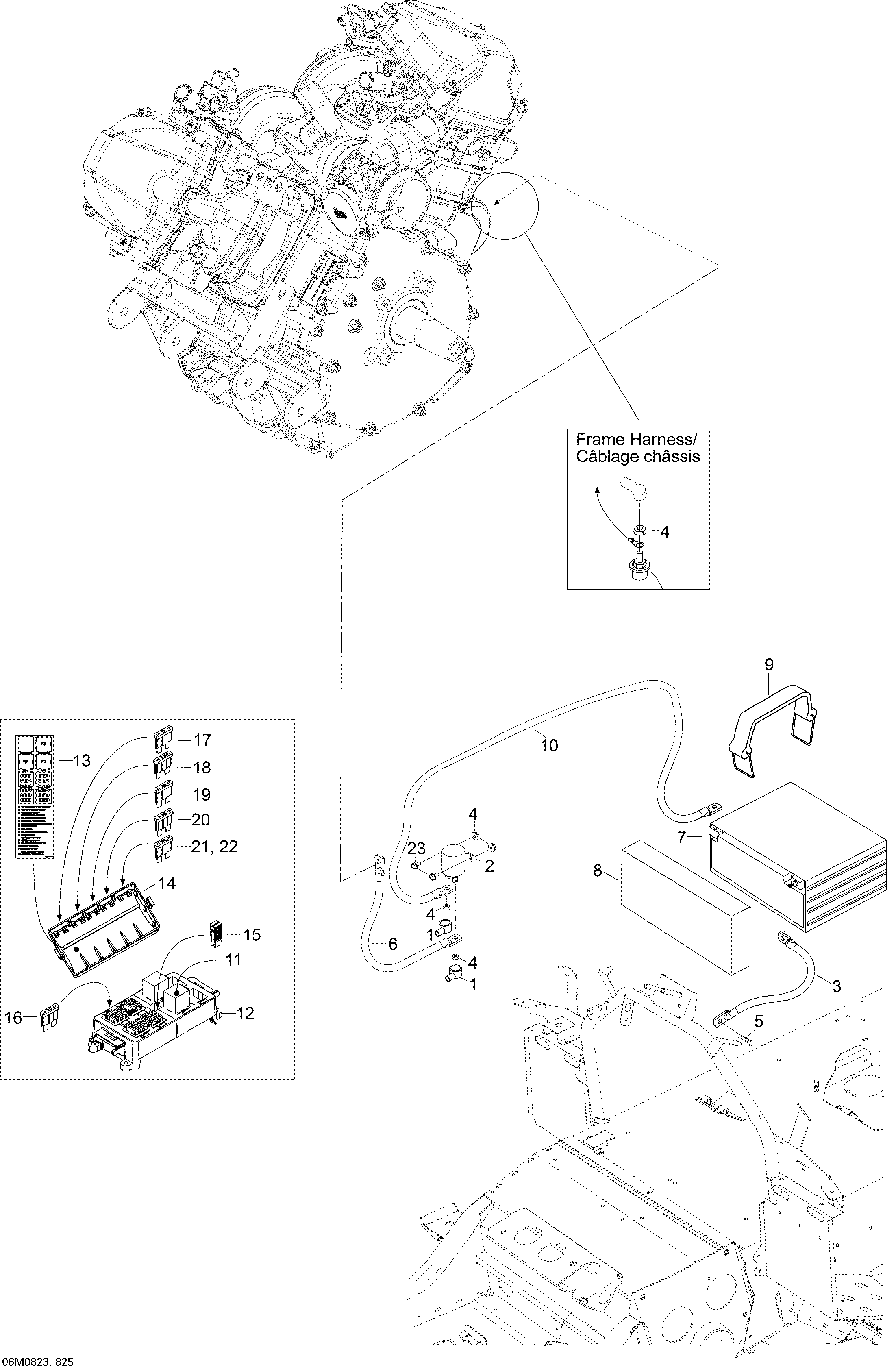

04- Electric Starter для BRP Ski-Doo Skandic SWT V-800 - 2008
-
№АртикулНазвание
-
1570151000 Protection CapProtection Cap
-
2515176011 Starter RelayStarter Relay
-
3605455189 Ground WireGround Wire
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5M40052 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
6605355251 Battery WireBattery Wire
-
7410922962 Battery, 12 Volts, 21 AmperesBattery, 12 Volts, 21 Amperes
-
8605352572 CoverCover
-
9605352573 Steel StripSteel Strip
-
10605355251 Battery WireBattery Wire
-
11410113604 RelayRelay
-
12515176065 Fuse Box BaseFuse Box Base
-
13605454618 Fuse DecalFuse Decal
-
14515176066 CoverCover
-
15515175811 Fuse ToolFuse Tool
-
16M42044 Fuse 1 AFuse 1 A
-
16278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
16278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
16409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
16410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
17710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
18278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
19278000704 Fuse, 7.5 AmperesFuse, 7.5 Amperes
-
20409003900 Fuse, 20 AmperesFuse, 20 Amperes
-
21410917200 Fuse, 30 AmperesFuse, 30 Amperes
-
22710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
23207162044 Hex. Cap Screw M6 X 20Hex. Cap Screw M6 X 20
