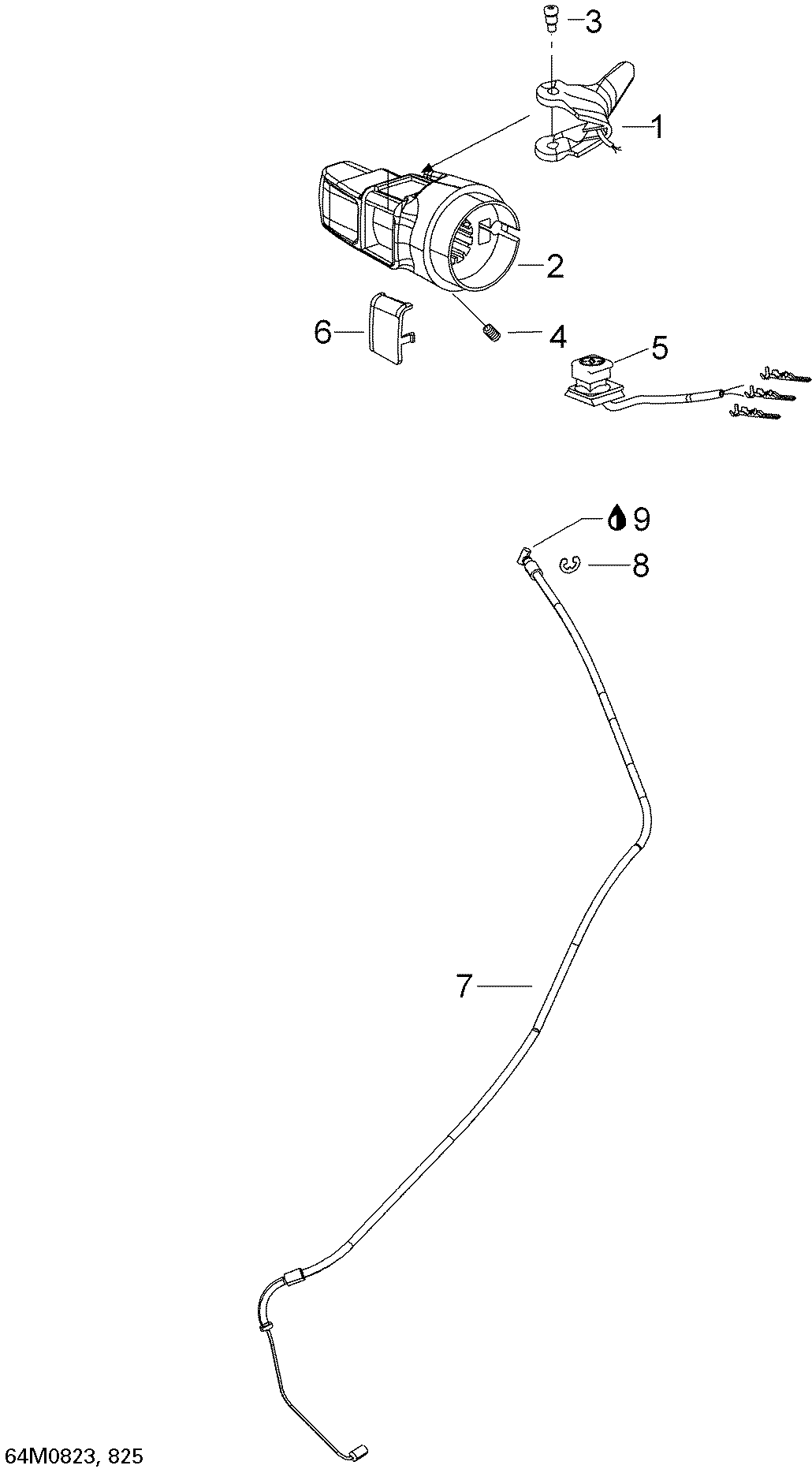

01- Throttle Handle And Housing для BRP Ski-Doo Skandic SWT V-800 - 2008
-
№АртикулНазвание
-
1512059481 Throttle HandleThrottle Handle
-
2512059763 Throttle HousingThrottle Housing
-
3732601143 Flanged ScrewFlanged Screw
-
4414440800 Set Screw M8 X 10Set Screw M8 X 10
-
5515176690 Kill SwitchKill Switch
-
6572100901 Switch CoverSwitch Cover
-
7605352663 Throttle CableThrottle Cable
-
8M31038 CirclipCirclip
