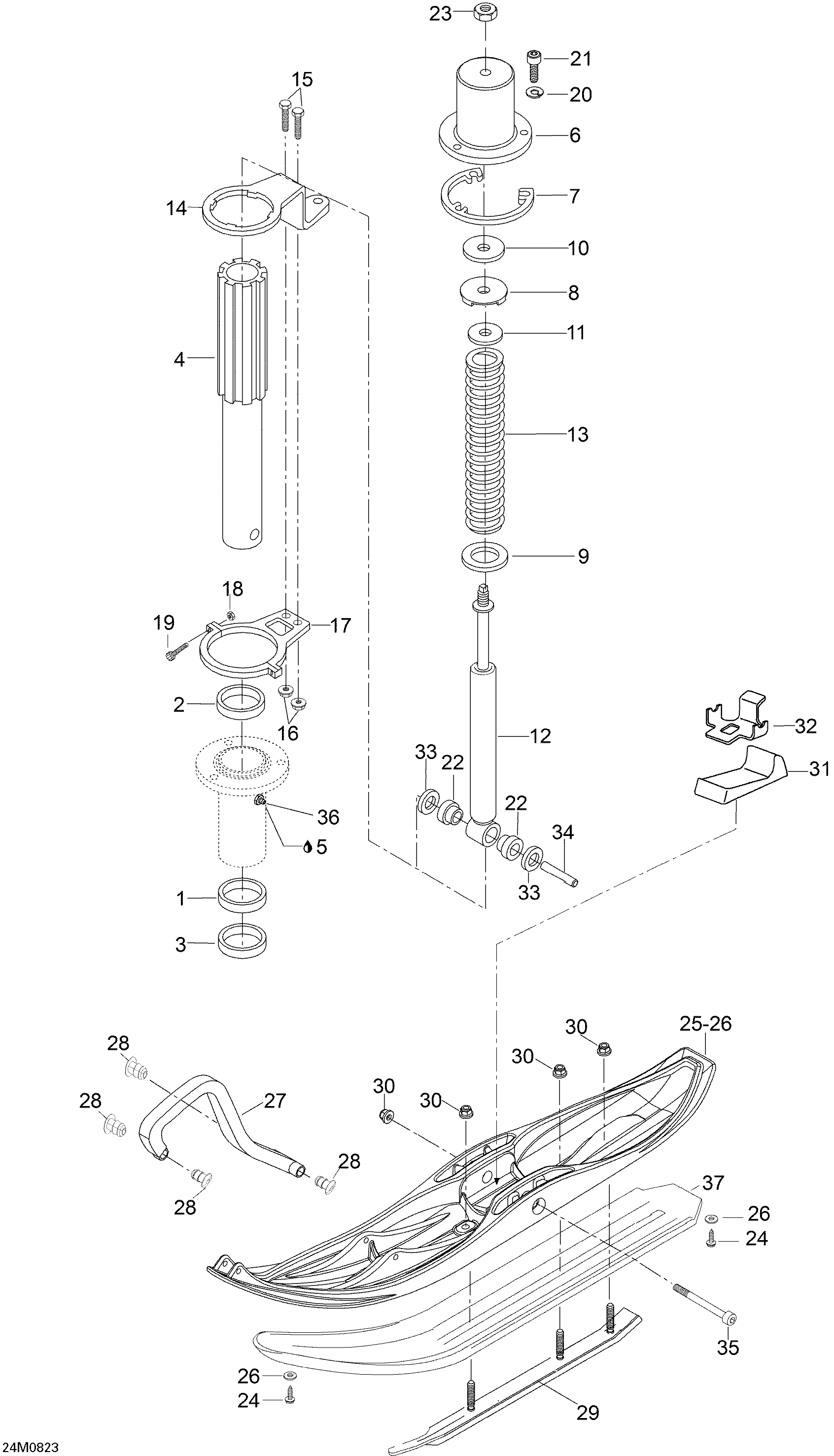

07- Front Suspension And Ski для BRP Ski-Doo Skandic SWT V-800 - 2008
-
№АртикулНазвание
-
1414803200 Lower CushionLower Cushion
-
2414803100 Upper CushionUpper Cushion
-
3M316373 Oil SealOil Seal
-
4M5245362 Ski LegSki Leg
-
5219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
6605249284 Painted CoverPainted Cover
-
7503145600 SpacerSpacer
-
8605354835 Rubber BumberRubber Bumber
-
9M549493 WasherWasher
-
10M5440399 WasherWasher
-
11M549492 PlatePlate
-
12M23134 Front Gaz ShockFront Gaz Shock
-
13605625001 SpringSpring
-
14605353422 RH Steering ArmRH Steering Arm
-
14605353423 LH Steering ArmLH Steering Arm
-
15207162544 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
16M33200 Nut M6Nut M6
-
17M5344180 Support Ass'ySupport Ass'y
-
18232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
19M40146 ScrewScrew
-
20234181401 Lock Washer 8 mmLock Washer 8 mm
-
21205082044 Socket Head Screw M8 X 20Socket Head Screw M8 X 20
-
22572034500 CushionCushion
-
23233601416 Elastic Locking Nut M10. Includes 25 to 26Elastic Locking Nut M10. Includes 25 to 26
-
24M40901 Hex. ScrewHex. Screw
-
25605153775 Plastic Ski Ass'yPlastic Ski Ass'y
-
26M20037 WasherWasher
-
27505070963 Handle, BlackHandle, Black
-
28505071812 RetainerRetainer
-
29619400006 Runner Carbide Ass'yRunner Carbide Ass'y
-
30M33074 NutNut
-
31605348439 Rubber StopperRubber Stopper
-
32605348437 Plate SupportPlate Support
-
33605448594 BushingBushing
-
34605348921 SpacerSpacer
-
35M40225 Hex. Screw M10 X 140Hex. Screw M10 X 140
-
36M34019 Grease FittingGrease Fitting
-
37605153964 Ski LinerSki Liner
