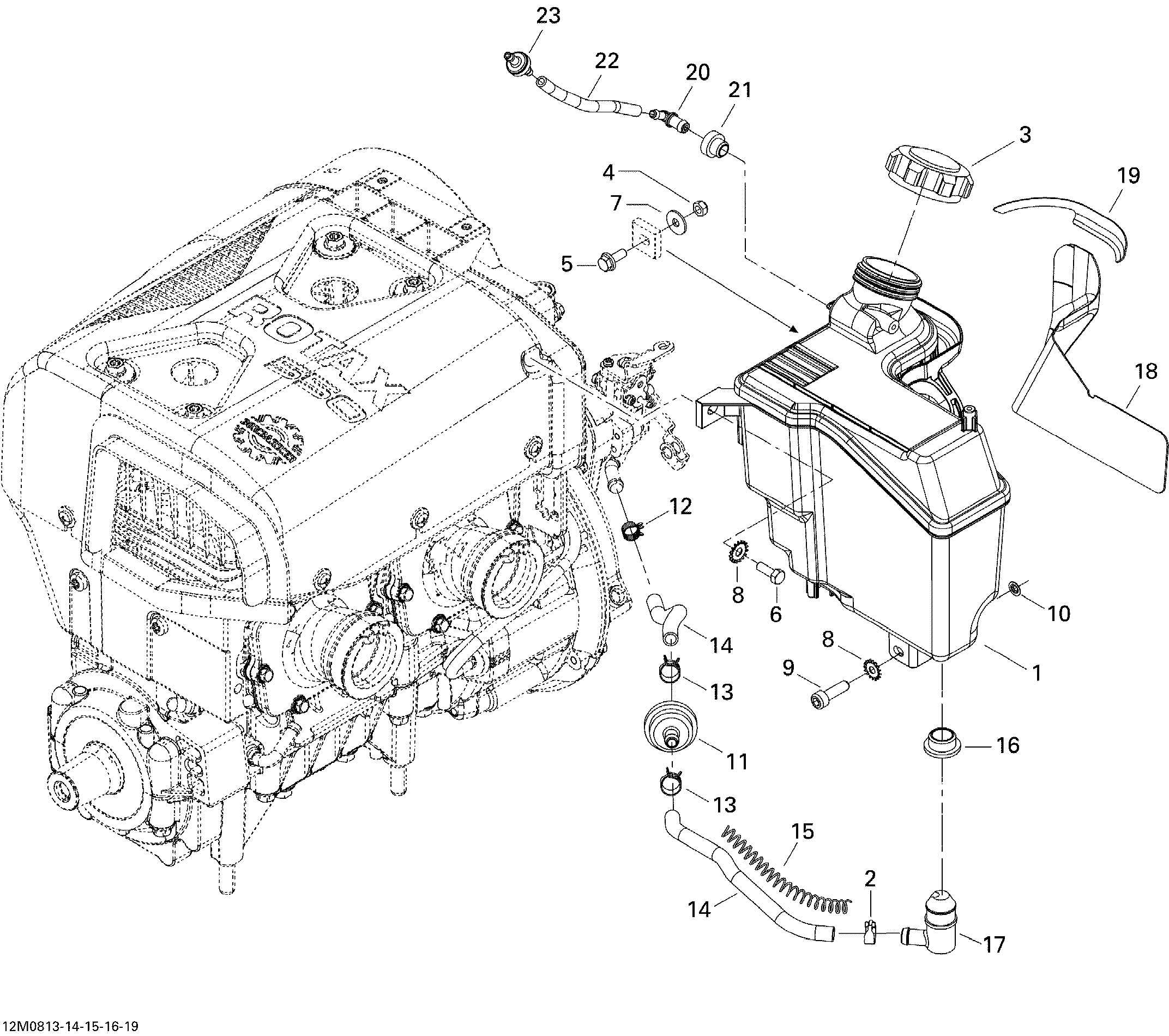

02- Oil System для BRP Ski-Doo Skandic Tundra LT 550F - 2008
-
№АртикулНазвание
-
1519000073 Injection Oil TankInjection Oil Tank
-
2293650042 Oetiker ClampOetiker Clamp
-
3519000033 CapCap
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
6207161844 Hex. Screw M6 X 18Hex. Screw M6 X 18
-
7391302000 Flat WasherFlat Washer
-
8250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
9250000081 Torx Screw M6 X 25Torx Screw M6 X 25
-
10732610072 Push NutPush Nut
-
11414536500 FilterFilter
-
12414420700 Spring ClipSpring Clip
-
13414415200 Universal Spring ClampUniversal Spring Clamp
-
14415080700 LineLine
-
15519000125 SpringSpring
-
16570023000 Insulating RingInsulating Ring
-
17519000124 Elbow Fitting 90°Elbow Fitting 90°
-
18519000054 Reflective SheetReflective Sheet
-
19519000072 Reflective SheetReflective Sheet
-
20414580700 Elbow Male ConnectorElbow Male Connector
-
21513032908 GrommetGrommet
-
22415080200 Polyurethane HosePolyurethane Hose
-
23275500398 Check ValveCheck Valve
