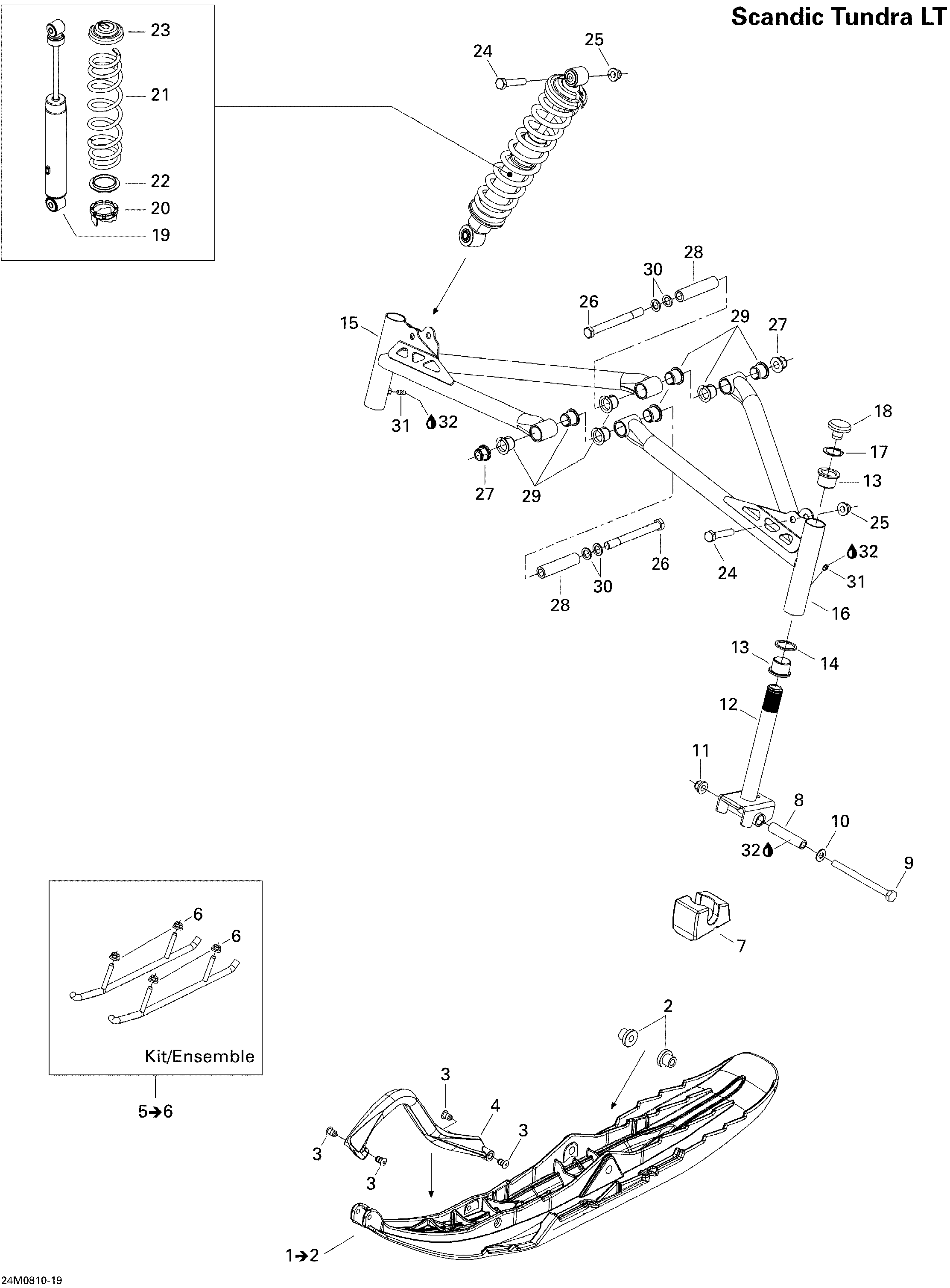

07- Front Suspension And Ski для BRP Ski-Doo Skandic Tundra LT 550F - 2008
-
№АртикулНазвание
-
1505072174 RH Pilot Ski 6.9. Includes 1 to 2RH Pilot Ski 6.9. Includes 1 to 2
-
1505072175 LH Pilot Ski 6.9. Includes 1 to 2LH Pilot Ski 6.9. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505070963 Handle, BlackHandle, Black
-
5860200123 Carbide Runner Kit. Includes 5 to 6Carbide Runner Kit. Includes 5 to 6
-
6233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
7505072018 Ski StopperSki Stopper
-
8506133300 SpacerSpacer
-
9230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
10234001410 Flat Washer 10 mmFlat Washer 10 mm
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072001 Ski LegSki Leg
-
13505070003 CushionCushion
-
14505070004 WasherWasher
-
15505071739 RH Lower ArmRH Lower Arm
-
16505071740 LH Lower ArmLH Lower Arm
-
17371910400 CirclipCirclip
-
18572091300 CapCap
-
19505072258 Front ShockFront Shock
-
20503183700 Cam 45°Cam 45°
-
21505071833 SpringSpring
-
22503187500 Spring GuideSpring Guide
-
23503140600 Spring StopperSpring Stopper
-
24207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
25233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
26230022044 Hex. Screw M12 X 120Hex. Screw M12 X 120
-
27233221414 Hex. Flanged Elastic Nut M12Hex. Flanged Elastic Nut M12
-
28505071366 BushingBushing
-
29505072094 BushingBushing
-
30503189276 WasherWasher
-
31408200700 Grease FittingGrease Fitting
-
32219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
